Inline expansion improves program performance by replacing function calls with the function body, reducing call overhead and enhancing execution speed. Loop unrolling increases loop efficiency by decreasing the number of iterations and the overhead of branching instructions, resulting in faster execution. Explore deeper insights into how these optimization techniques impact code performance.
Main Difference
Inline expansion replaces a function call with the actual code of the function, reducing function call overhead and improving execution speed. Loop unrolling replicates the loop body multiple times to decrease iteration overhead and increase instruction-level parallelism. Inline expansion focuses on eliminating function calls for small functions, while loop unrolling targets optimizing repetitive loop execution. Both techniques enhance performance but are applied in different contexts depending on the code structure.
Connection
Inline expansion and loop unrolling are connected compiler optimization techniques that improve execution speed by reducing overhead. Inline expansion replaces function calls with the function's code, eliminating call overhead, while loop unrolling increases loop body size by replicating instructions to reduce iterations and branching. Together, these optimizations enhance CPU pipeline efficiency and minimize instruction dispatch latency in critical code sections.

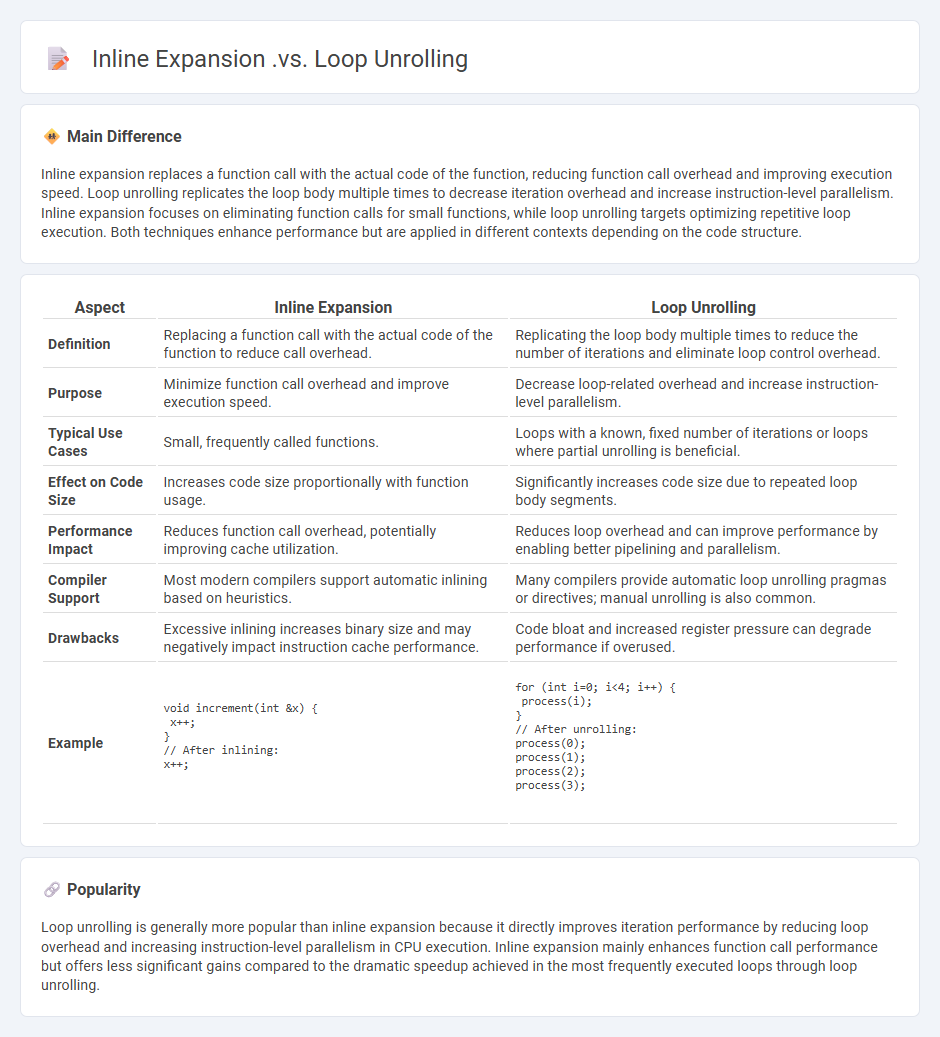

Comparison Table
| Aspect | Inline Expansion | Loop Unrolling |
|---|---|---|
| Definition | Replacing a function call with the actual code of the function to reduce call overhead. | Replicating the loop body multiple times to reduce the number of iterations and eliminate loop control overhead. |
| Purpose | Minimize function call overhead and improve execution speed. | Decrease loop-related overhead and increase instruction-level parallelism. |
| Typical Use Cases | Small, frequently called functions. | Loops with a known, fixed number of iterations or loops where partial unrolling is beneficial. |
| Effect on Code Size | Increases code size proportionally with function usage. | Significantly increases code size due to repeated loop body segments. |
| Performance Impact | Reduces function call overhead, potentially improving cache utilization. | Reduces loop overhead and can improve performance by enabling better pipelining and parallelism. |
| Compiler Support | Most modern compilers support automatic inlining based on heuristics. | Many compilers provide automatic loop unrolling pragmas or directives; manual unrolling is also common. |
| Drawbacks | Excessive inlining increases binary size and may negatively impact instruction cache performance. | Code bloat and increased register pressure can degrade performance if overused. |
| Example |
void increment(int &x) {
x++;
}
// After inlining:
x++;
|
for (int i=0; i<4; i++) {
process(i);
}
// After unrolling:
process(0);
process(1);
process(2);
process(3);
|
Function Call Overhead
Function call overhead in computer systems refers to the extra time and resources required to execute a function beyond the function's actual operations. This overhead includes saving the current state, passing arguments, jumping to the function code, and restoring the state upon return. In high-performance computing and embedded systems, minimizing function call overhead is critical to optimize execution speed and resource usage. Techniques such as inline functions, tail call optimization, and register-based parameter passing are commonly employed to reduce this overhead.
Code Size Increase
Code size increase in computer systems often results from incorporating advanced features, higher-level programming languages, and extensive libraries that enhance functionality but consume more memory. The trend towards object-oriented programming and richer graphical user interfaces typically leads to larger executables compared to procedural code. Modern applications frequently exhibit code bloat due to redundant code, compiler inefficiencies, or inclusion of unnecessary components. Effective code optimization and refactoring strategies are essential to manage code size, improve performance, and reduce hardware resource demands.
Execution Speed
Execution speed in computers measures how quickly a processor completes instructions, directly affecting overall system performance. It is influenced by factors such as CPU clock speed, measured in gigahertz (GHz), the number of cores, and the efficiency of the instruction pipeline. Modern processors, like the Apple M2 and Intel Core i9-13900K, achieve execution speeds exceeding 5 GHz with multi-core architectures enhancing parallel processing. Optimizing execution speed improves tasks from gaming to data analysis, ensuring faster computational responses and efficient multitasking.
Compiler Optimization
Compiler optimization enhances program efficiency by transforming source code into faster or smaller executable code without altering its output. Techniques such as loop unrolling, constant folding, and dead code elimination reduce runtime and memory usage. Modern compilers like GCC and Clang employ machine learning and profile-guided optimization to tailor performance to specific hardware architectures. These optimizations significantly improve application speed and resource management in computer systems.
Maintainability
Maintainability in computer systems refers to the ease with which software or hardware can be modified to correct defects, improve performance, or adapt to a changing environment. Key factors influencing maintainability include modular design, clear documentation, and code readability, which reduce complexity and facilitate troubleshooting. Metrics such as mean time to repair (MTTR) and cyclomatic complexity help quantify maintainability levels. High maintainability contributes to reduced lifecycle costs and improved system reliability over time.
Source and External Links
Function-inlining and loop-unrolling - Inline expansion replaces function calls with the function's body, eliminating the function call overhead, while loop unrolling reduces the number of loop iterations by replicating the loop body, thus decreasing branching and increasing instruction scheduling opportunities.
Loop unrolling - Wikipedia - Loop unrolling optimizes program speed by minimizing loop control instructions and branches, at the expense of increased code size, potentially improving parallel execution but possibly causing cache misses on modern processors.
Inline expansion - Wikipedia - Inline expansion is a compiler or manual optimization where function call sites are replaced with the actual function code to reduce call overhead, with limitations such as handling recursion and avoiding excessive code size.
FAQs
What is inline expansion?
Inline expansion is a compiler optimization technique where function calls are replaced with the actual function code to reduce function call overhead and improve performance.
What is loop unrolling?
Loop unrolling is a compiler optimization technique that increases a program's execution speed by reducing loop control overhead and enhancing instruction-level parallelism through replicating the loop body multiple times.
How does inline expansion improve code performance?
Inline expansion improves code performance by eliminating function call overhead and enabling further compiler optimizations like constant propagation and loop unrolling.
How does loop unrolling optimize execution speed?
Loop unrolling optimizes execution speed by reducing loop control overhead, increasing instruction-level parallelism, and enhancing CPU pipeline efficiency.
What are the differences between inline expansion and loop unrolling?
Inline expansion replaces a function call with the function's code to eliminate call overhead, while loop unrolling duplicates loop body statements multiple times to reduce loop control overhead and increase instruction-level parallelism.
What are the disadvantages of inline expansion and loop unrolling?
Inline expansion increases code size, leading to potential cache misses and reduced performance. Loop unrolling also enlarges code size, causes higher register pressure, and may increase compilation time while diminishing code maintainability.
When should you use inline expansion vs loop unrolling?
Use inline expansion to reduce function call overhead for small, frequently called functions; use loop unrolling to decrease loop control overhead and increase instruction-level parallelism in performance-critical loops with fixed, small iteration counts.
