Shear pins and cotter pins serve distinct purposes in mechanical assemblies, where shear pins act as safety devices designed to break under excessive torque to protect machinery. Cotter pins function as fasteners that secure bolts or other components, preventing loosening during operation. Explore the key differences and applications of shear pins versus cotter pins to optimize your equipment's reliability.
Main Difference
A shear pin is designed to fail under excessive torque or force to protect machinery components from damage, acting as a mechanical fuse. In contrast, a cotter pin primarily serves as a locking mechanism to secure other fasteners such as nuts or bolts, preventing them from loosening during operation. Shear pins are typically used in heavy equipment and automotive driveshafts, while cotter pins are common in assembling joints and securing clevis pins. The key difference lies in the shear pin's intentional breakage function versus the cotter pin's role in mechanical fastening stability.
Connection
Shear pins and cotter pins are connected through their function of securing mechanical parts and transmitting force. A shear pin is designed to break under excessive load to protect machinery, often inserted through aligned holes in shafts or gears to transfer torque. A cotter pin passes through a drilled hole, typically in a bolt or axle, and is bent to lock components in place, preventing axial movement.
Comparison Table

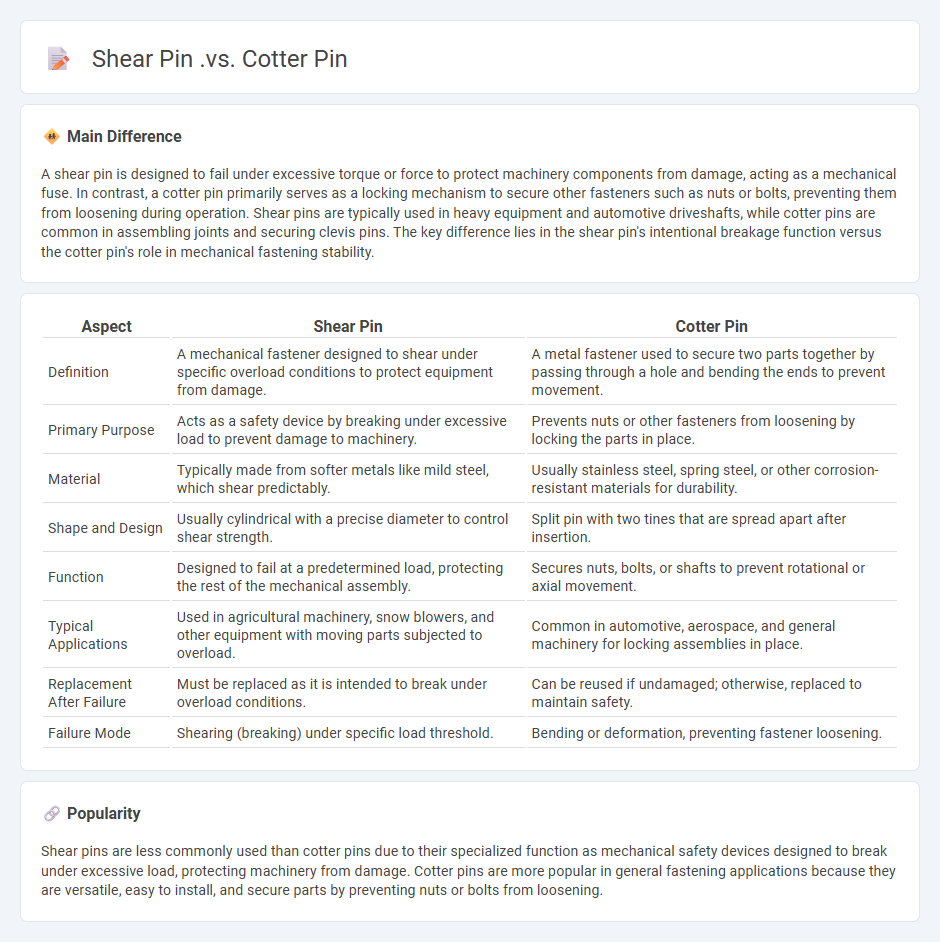

| Aspect | Shear Pin | Cotter Pin |
|---|---|---|
| Definition | A mechanical fastener designed to shear under specific overload conditions to protect equipment from damage. | A metal fastener used to secure two parts together by passing through a hole and bending the ends to prevent movement. |
| Primary Purpose | Acts as a safety device by breaking under excessive load to prevent damage to machinery. | Prevents nuts or other fasteners from loosening by locking the parts in place. |
| Material | Typically made from softer metals like mild steel, which shear predictably. | Usually stainless steel, spring steel, or other corrosion-resistant materials for durability. |
| Shape and Design | Usually cylindrical with a precise diameter to control shear strength. | Split pin with two tines that are spread apart after insertion. |
| Function | Designed to fail at a predetermined load, protecting the rest of the mechanical assembly. | Secures nuts, bolts, or shafts to prevent rotational or axial movement. |
| Typical Applications | Used in agricultural machinery, snow blowers, and other equipment with moving parts subjected to overload. | Common in automotive, aerospace, and general machinery for locking assemblies in place. |
| Replacement After Failure | Must be replaced as it is intended to break under overload conditions. | Can be reused if undamaged; otherwise, replaced to maintain safety. |
| Failure Mode | Shearing (breaking) under specific load threshold. | Bending or deformation, preventing fastener loosening. |
Shear Pin
Shear pins are mechanical safety devices designed to protect equipment from overload by intentionally breaking under excessive stress. Commonly used in machinery such as snow blowers, agricultural equipment, and industrial drive systems, these pins act as sacrificial components that prevent damage to more critical parts. Made from materials like steel or brass, shear pins have calibrated shear strengths tailored to specific operational loads. Regular inspection and replacement of shear pins ensure reliable machinery performance and prevent costly repairs caused by mechanical failures.
Cotter Pin
Cotter pins, also known as split pins, are essential fasteners used in mechanical engineering to secure parts together and prevent axial movement on shafts or within housings. Typically manufactured from stainless steel, mild steel, or brass, these pins are inserted through drilled holes in bolts or shafts and bent to lock components safely. Standard sizes range from 1.6 mm to 12.7 mm in diameter, with lengths varying according to application requirements, ensuring compatibility with various machinery. Their corrosion resistance and easy installation make cotter pins a reliable choice for securing assemblies in automotive, aerospace, and machinery industries.
Mechanical Fastener
Mechanical fasteners are essential components in engineering, providing reliable joining solutions for various materials such as metals, plastics, and composites. Common types include bolts, screws, nuts, rivets, and washers, each designed to withstand specific loads and environmental conditions. The selection process considers factors like load-bearing capacity, vibration resistance, corrosion protection, and ease of assembly or disassembly. Advanced mechanical fastening techniques, including ultrasonic welding and self-locking fasteners, enhance performance in aerospace, automotive, and construction industries.
Shear Force
Shear force in engineering refers to the internal force that acts parallel to the surface of a structural element, causing deformation by sliding layers relative to each other. It is a critical factor in the design and analysis of beams, bridges, and mechanical components, where it influences material selection and cross-sectional shape. Engineers calculate shear force using shear force diagrams, which help identify points of maximum stress to ensure safety and structural integrity. Understanding shear force facilitates the prevention of shear failure, which can lead to catastrophic collapse in construction and machinery.
Safety Mechanism
Safety mechanisms in engineering are designed to prevent accidents, equipment failure, and hazardous situations by automatically initiating protective actions. Common types include fail-safes, interlocks, pressure relief valves, and emergency shutdown systems, which ensure operational integrity under abnormal conditions. These systems adhere to strict industry standards such as OSHA regulations and ISO 45001 to guarantee workplace safety and compliance. Advanced safety mechanisms often incorporate sensors and real-time monitoring using Industry 4.0 technologies to detect risks proactively.
