RAID 0 offers improved performance by striping data across multiple drives but lacks redundancy, increasing the risk of data loss if a single drive fails. RAID 5 balances performance and data protection by distributing parity information across all drives, allowing recovery from one drive failure without data loss. Explore the key differences in speed, fault tolerance, and use cases to determine which RAID configuration suits your storage needs.
Main Difference
RAID 0 offers striping without parity, providing maximum data read and write speed by spreading data evenly across multiple drives but lacks redundancy, meaning data loss occurs if one drive fails. RAID 5 combines striping with distributed parity, requiring at least three drives, and offers fault tolerance by allowing the array to continue operating even if one drive fails, though write speeds are slightly slower due to parity calculations. RAID 0 is ideal for performance-critical applications where data loss is not a major concern, while RAID 5 balances performance, storage efficiency, and data protection suitable for enterprise environments. Storage efficiency in RAID 5 is approximately (N-1)/N, where N is the number of drives, compared to RAID 0's 100% storage utilization.
Connection
RAID 0 and RAID 5 are connected by their use in data storage systems to enhance performance and reliability, with RAID 0 focusing on striping data across multiple drives for increased speed and RAID 5 combining striping with parity for fault tolerance. RAID 5 requires a minimum of three drives and distributes parity information across all drives to allow recovery from a single drive failure, whereas RAID 0 offers no redundancy but maximizes data throughput. Both RAID levels improve data access speeds through striping techniques but differ in balancing speed with data protection.

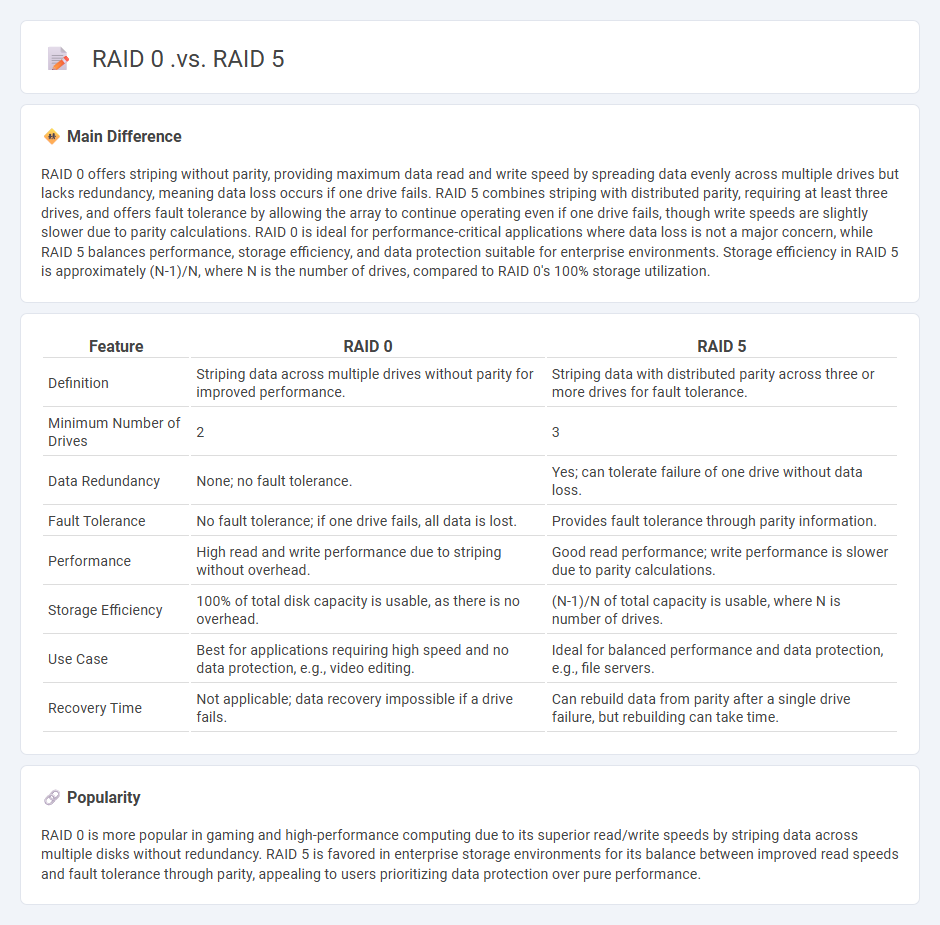

Comparison Table
| Feature | RAID 0 | RAID 5 |
|---|---|---|
| Definition | Striping data across multiple drives without parity for improved performance. | Striping data with distributed parity across three or more drives for fault tolerance. |
| Minimum Number of Drives | 2 | 3 |
| Data Redundancy | None; no fault tolerance. | Yes; can tolerate failure of one drive without data loss. |
| Fault Tolerance | No fault tolerance; if one drive fails, all data is lost. | Provides fault tolerance through parity information. |
| Performance | High read and write performance due to striping without overhead. | Good read performance; write performance is slower due to parity calculations. |
| Storage Efficiency | 100% of total disk capacity is usable, as there is no overhead. | (N-1)/N of total capacity is usable, where N is number of drives. |
| Use Case | Best for applications requiring high speed and no data protection, e.g., video editing. | Ideal for balanced performance and data protection, e.g., file servers. |
| Recovery Time | Not applicable; data recovery impossible if a drive fails. | Can rebuild data from parity after a single drive failure, but rebuilding can take time. |
Striping
Striping in computer storage refers to the technique of dividing data into equal-sized segments and distributing them across multiple disk drives. This method enhances performance by allowing simultaneous read and write operations on different disks, significantly improving data throughput. Commonly implemented in RAID 0 configurations, striping lacks redundancy, making it critical to backup data to prevent loss. High-performance computing systems utilize striping to optimize access speeds for large data sets and intensive applications.
Parity
Parity in computer systems refers to a method of error detection used in data storage and transmission. It involves adding a parity bit to a binary sequence, which can be either even or odd parity depending on whether the total number of 1s in the sequence is made even or odd. Parity checking helps identify single-bit errors by ensuring the received data adheres to the expected parity pattern. This technique is commonly implemented in memory modules like ECC (Error-Correcting Code) RAM and communication protocols to enhance data integrity.
Fault Tolerance
Fault tolerance in computer systems ensures continuous operation despite hardware or software failures by implementing redundant components and error detection mechanisms. Techniques such as error-correcting code (ECC) memory, RAID storage configurations, and failover clusters enhance system reliability and minimize downtime. Modern data centers often employ fault-tolerant architectures that maintain uptime rates exceeding 99.999%, also known as "five nines" availability. This resilience is critical for applications in cloud computing, finance, and telecommunications where uninterrupted service is essential.
Write Performance
Computer performance is measured by processing speed, typically quantified in gigahertz (GHz) for CPUs, indicating how many cycles a processor can execute per second. Memory capacity, such as RAM size measured in gigabytes (GB), directly affects multitasking efficiency and system responsiveness. Storage speed and type, including SSDs with NVMe technology, significantly reduce data access times compared to traditional HDDs. Graphics processing units (GPUs), especially those like NVIDIA RTX series, enhance performance in rendering and computational tasks, crucial for gaming and professional applications.
Storage Efficiency
Storage efficiency in computer systems refers to the optimized use of available storage resources to maximize data capacity while minimizing redundancy and waste. Techniques such as data compression, deduplication, and thin provisioning significantly enhance storage efficiency by reducing the physical space required to store data. Modern storage technologies, including solid-state drives (SSDs) and cloud-based storage solutions, leverage advanced algorithms to improve read/write speeds and storage density. Efficient storage management directly impacts overall system performance, cost reduction, and scalability in data centers and enterprise environments.
Source and External Links
RAID Levels 0, 1, 5, 6 and 10 & RAID Types (Software vs. Hardware) - RAID 0 uses data striping to increase speed but has no fault tolerance, while RAID 5 uses striping with parity, providing fault tolerance and higher usable storage with moderate speed.
RAID 0 vs RAID 1 vs RAID 5: Best NAS Setup for Home Users - RAID 0 prioritizes speed and suits tasks needing fast data access but lacks redundancy, whereas RAID 5 balances speed, redundancy (via parity), and storage efficiency, making it good for general use with at least three drives.
Comparing RAID levels: 0, 1, 5, 6, 10 and 50 explained - TechTarget - RAID 0 offers the fastest performance without redundancy, risking total data loss on drive failure, while RAID 5 provides good performance with fault tolerance by storing parity data, allowing recovery from a single drive failure.
FAQs
What is RAID?
RAID (Redundant Array of Independent Disks) is a data storage technology that combines multiple physical hard drives into a single logical unit to improve performance, fault tolerance, or both.
What is the difference between RAID 0 and RAID 5?
RAID 0 stripes data across multiple drives for maximum performance without redundancy, while RAID 5 stripes data with distributed parity, offering fault tolerance by allowing one drive failure without data loss.
How does RAID 0 work?
RAID 0 works by striping data evenly across two or more disks, enhancing performance and increasing storage capacity without redundancy.
How does RAID 5 work?
RAID 5 distributes data and parity information across three or more drives, enabling data recovery if one drive fails by reconstructing lost data using parity bits stored on the remaining drives.
What are the main advantages of RAID 0?
RAID 0 offers increased data read/write speed and maximum storage capacity by striping data across multiple drives without redundancy.
What are the key benefits of RAID 5?
RAID 5 offers fault tolerance through distributed parity, improved read performance, efficient storage utilization by striping data and parity across multiple disks, and the ability to withstand a single disk failure without data loss.
Which is better for data protection, RAID 0 or RAID 5?
RAID 5 is better for data protection because it uses parity to provide fault tolerance, allowing data recovery if one drive fails, while RAID 0 offers no redundancy and increases the risk of data loss.
