Pipelining improves CPU performance by breaking down instruction execution into discrete stages, allowing multiple instructions to overlap in processing. Multithreading enhances CPU utilization by enabling concurrent execution of multiple threads within a single core, effectively reducing idle time during stalls. Explore the detailed comparison of pipelining and multithreading strategies to optimize processor efficiency.
Main Difference
Pipelining improves CPU instruction throughput by breaking down execution into discrete stages, allowing multiple instructions to overlap in processing. Multithreading increases CPU utilization by allowing multiple threads to execute concurrently, reducing idle times during resource stalls. Pipelining is focused on instruction-level parallelism within a single thread, while multithreading exploits thread-level parallelism across multiple threads. Both techniques enhance performance but target different aspects of CPU processing.
Connection
Pipelining enhances processor throughput by dividing instruction execution into sequential stages, allowing multiple instructions to overlap in execution time. Multithreading leverages pipelining by enabling concurrent threads to share pipeline resources, improving overall CPU utilization and reducing idle cycles. Both techniques synergize to increase instruction-level parallelism and boost processing efficiency in modern CPUs.

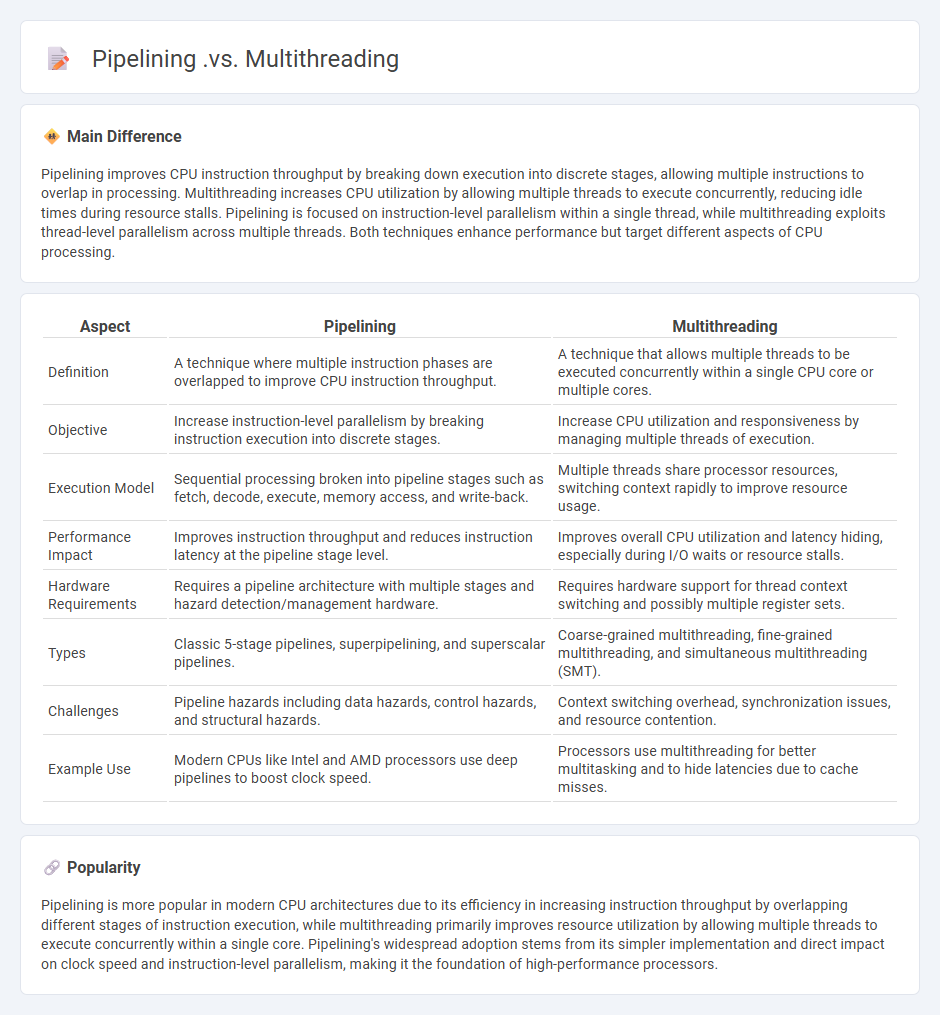

Comparison Table
| Aspect | Pipelining | Multithreading |
|---|---|---|
| Definition | A technique where multiple instruction phases are overlapped to improve CPU instruction throughput. | A technique that allows multiple threads to be executed concurrently within a single CPU core or multiple cores. |
| Objective | Increase instruction-level parallelism by breaking instruction execution into discrete stages. | Increase CPU utilization and responsiveness by managing multiple threads of execution. |
| Execution Model | Sequential processing broken into pipeline stages such as fetch, decode, execute, memory access, and write-back. | Multiple threads share processor resources, switching context rapidly to improve resource usage. |
| Performance Impact | Improves instruction throughput and reduces instruction latency at the pipeline stage level. | Improves overall CPU utilization and latency hiding, especially during I/O waits or resource stalls. |
| Hardware Requirements | Requires a pipeline architecture with multiple stages and hazard detection/management hardware. | Requires hardware support for thread context switching and possibly multiple register sets. |
| Types | Classic 5-stage pipelines, superpipelining, and superscalar pipelines. | Coarse-grained multithreading, fine-grained multithreading, and simultaneous multithreading (SMT). |
| Challenges | Pipeline hazards including data hazards, control hazards, and structural hazards. | Context switching overhead, synchronization issues, and resource contention. |
| Example Use | Modern CPUs like Intel and AMD processors use deep pipelines to boost clock speed. | Processors use multithreading for better multitasking and to hide latencies due to cache misses. |
Instruction-Level Parallelism
Instruction-Level Parallelism (ILP) in computer architecture refers to the ability of a processor to execute multiple instructions simultaneously within a single CPU cycle. Techniques such as pipelining, superscalar execution, and out-of-order execution enhance ILP by improving instruction throughput and reducing execution latency. Modern processors, including Intel's Core and AMD's Ryzen series, leverage ILP to achieve higher performance in complex workloads like gaming and scientific computing. Effective ILP increases CPU utilization while minimizing stalls caused by data hazards and control dependencies.
Task Parallelism
Task parallelism in computer systems involves executing multiple tasks or threads concurrently across different processing units to improve performance and efficiency. It leverages multi-core processors where each core handles a separate task, enabling faster completion of complex computations and better resource utilization. Common applications include parallel algorithms in scientific computing, image processing, and real-time data analysis. Effective task parallelism reduces execution time by dividing workloads into independent subtasks that run simultaneously.
Pipeline Stages
Pipeline stages in computer architecture enhance instruction throughput by dividing execution into discrete phases such as instruction fetch, decode, execute, memory access, and write-back. Each stage processes a segment of multiple instructions concurrently, improving CPU performance and efficiency. Modern processors implement pipeline stages with techniques like hazard detection and branch prediction to minimize stalls and maintain smooth data flow. Advanced pipelines can have over a dozen stages, as seen in Intel's Skylake architecture, where increased stage count boosts clock speeds while balancing latency.
Context Switching
Context switching in computers refers to the process where the CPU saves the state of a currently running process and loads the state of another process to resume its execution. This operation enables multitasking by allowing multiple processes to share a single CPU efficiently, improving overall system responsiveness. Context switches involve saving register values, program counters, and memory maps, which can incur overhead, impacting system performance if switches are too frequent. Operating systems like Linux and Windows utilize sophisticated scheduling algorithms to minimize context switch times and maximize throughput.
Throughput Optimization
Throughput optimization in computer systems focuses on maximizing the amount of data processed or tasks completed within a given time frame. Techniques such as parallel processing, pipelining, and efficient resource allocation enhance system performance by reducing bottlenecks and minimizing latency. Modern multi-core processors and high-speed memory architectures contribute significantly to improved throughput in computing environments. Effective throughput optimization leads to faster data processing in applications ranging from cloud computing to real-time data analytics.
Source and External Links
### Set 1Pipelining vs Multithreading - Pipelining focuses on overlapping instruction phases, whereas multithreading allows multiple threads to run concurrently on a CPU, enhancing resource utilization.
### Set 2Multithreading (computer architecture) - Multithreading in computer architecture allows CPUs to execute multiple threads of execution, improving efficiency by reducing data dependency stalls.
### Set 3Introduction to Pipelining and Multiprocessing - Pipelining involves breaking down instructions into stages, allowing for continuous processing, while multithreading involves executing multiple threads concurrently to utilize CPU resources efficiently.
FAQs
What is pipelining in computer architecture?
Pipelining in computer architecture is a technique that divides instruction execution into sequential stages, allowing multiple instructions to be processed simultaneously, thereby increasing CPU throughput and performance.
What is multithreading in computing?
Multithreading in computing is a technique where a single process contains multiple threads that execute concurrently to improve application performance and resource utilization.
How does pipelining increase CPU performance?
Pipelining increases CPU performance by allowing multiple instruction stages to overlap, improving instruction throughput and reducing cycle time per instruction.
How does multithreading improve program efficiency?
Multithreading improves program efficiency by enabling parallel execution of multiple threads, optimizing CPU utilization, reducing idle time, and accelerating task completion through concurrent processing.
What are the main differences between pipelining and multithreading?
Pipelining improves CPU instruction throughput by overlapping stages of multiple instructions within a single core, while multithreading increases CPU utilization by executing multiple threads concurrently, either on a single core or multiple cores, to hide latency and improve parallelism.
When should you use pipelining instead of multithreading?
Use pipelining instead of multithreading when tasks can be divided into sequential stages with dependencies, allowing each stage to process different data simultaneously for improved throughput and efficient resource utilization.
What are the challenges of pipelining and multithreading?
Pipelining challenges include data hazards, control hazards, and structural hazards, while multithreading challenges involve synchronization issues, resource contention, and thread management overhead.
