Stack Pointer (SP) and Frame Pointer (FP) are crucial registers in computer architecture that manage function calls and local variable storage. The Stack Pointer tracks the top of the stack, dynamically adjusting as data is pushed or popped, while the Frame Pointer provides a stable reference point for accessing function parameters and local variables within a stack frame. Explore the differences, roles, and optimization impacts of SP and FP in modern computing architectures.
Main Difference
The stack pointer (SP) tracks the top of the current stack, dynamically shifting during function calls and stack operations to manage push and pop activities. The frame pointer (FP), often stored in the base pointer register, marks a fixed reference point within the stack frame for accessing local variables and function parameters consistently. While the stack pointer changes frequently to accommodate stack growth or shrinkage, the frame pointer remains stable throughout a function's execution, aiding in reliable debugging and stack unwinding. Modern optimizations sometimes omit the frame pointer to increase performance, relying solely on the stack pointer for stack management.
Connection
The Stack Pointer (SP) and Frame Pointer (FP) are both CPU registers crucial for managing function call stacks and local variables in memory. During function calls, the Frame Pointer holds the base address of the current stack frame, while the Stack Pointer tracks the top of the stack, allowing dynamic allocation of local variables and space for return addresses. The Frame Pointer remains fixed throughout the function execution, enabling consistent referencing of function parameters and local variables, whereas the Stack Pointer changes as values are pushed or popped from the stack.

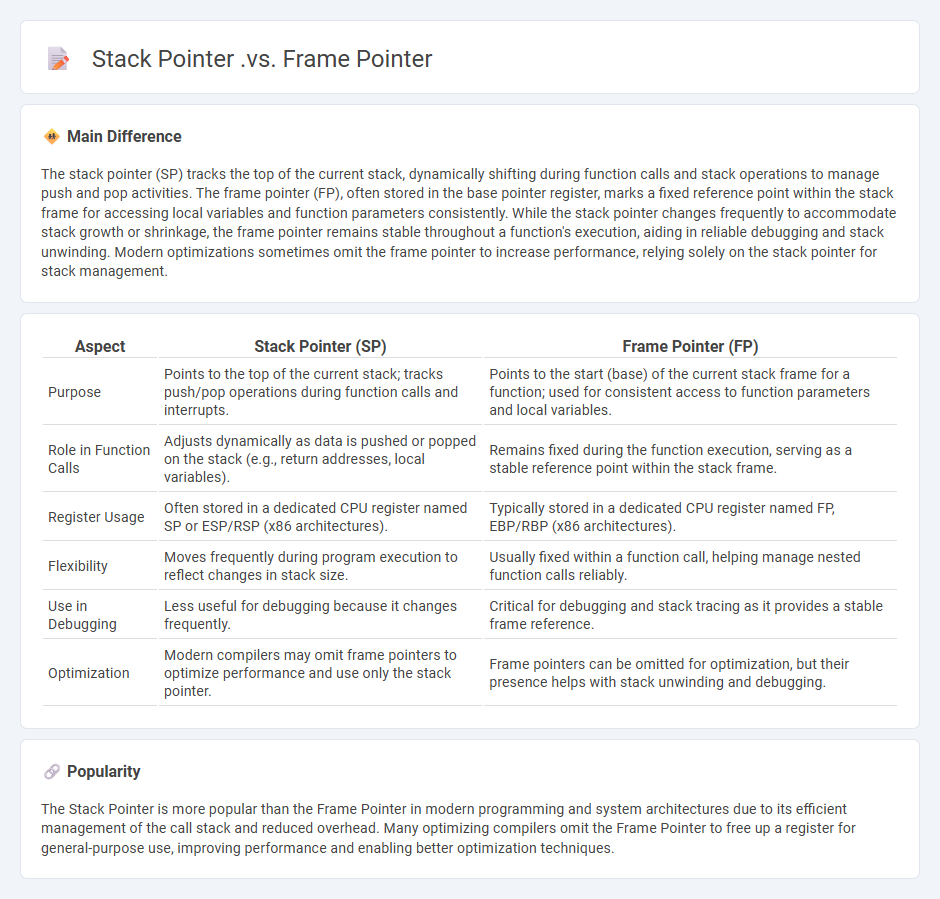

Comparison Table
| Aspect | Stack Pointer (SP) | Frame Pointer (FP) |
|---|---|---|
| Purpose | Points to the top of the current stack; tracks push/pop operations during function calls and interrupts. | Points to the start (base) of the current stack frame for a function; used for consistent access to function parameters and local variables. |
| Role in Function Calls | Adjusts dynamically as data is pushed or popped on the stack (e.g., return addresses, local variables). | Remains fixed during the function execution, serving as a stable reference point within the stack frame. |
| Register Usage | Often stored in a dedicated CPU register named SP or ESP/RSP (x86 architectures). | Typically stored in a dedicated CPU register named FP, EBP/RBP (x86 architectures). |
| Flexibility | Moves frequently during program execution to reflect changes in stack size. | Usually fixed within a function call, helping manage nested function calls reliably. |
| Use in Debugging | Less useful for debugging because it changes frequently. | Critical for debugging and stack tracing as it provides a stable frame reference. |
| Optimization | Modern compilers may omit frame pointers to optimize performance and use only the stack pointer. | Frame pointers can be omitted for optimization, but their presence helps with stack unwinding and debugging. |
Stack Pointer (SP)
The Stack Pointer (SP) is a specialized register in computer architecture that holds the address of the top element in the stack memory. It plays a crucial role in managing function calls, local variable storage, and interrupt handling by tracking the stack's current position. During push and pop operations, the SP is incremented or decremented to reflect the changes in stack contents. Modern CPUs like ARM and x86 rely heavily on the SP for efficient memory management and control flow.
Frame Pointer (FP)
Frame Pointer (FP) is a dedicated register in computer architecture used to reference the fixed location of a function's stack frame during program execution. It facilitates access to local variables, function parameters, and return addresses by maintaining a stable point within the stack, even as the stack pointer changes. Commonly implemented as the EBP register in x86 architectures or the FP register in ARM processors, the frame pointer enhances debugging and stack unwinding processes. Optimizing compilers may omit the frame pointer to improve performance, relying instead on stack pointer-relative addressing.
Call Stack
The call stack is a fundamental data structure in computer science that stores information about active subroutines or functions within a program. It operates in a last-in, first-out (LIFO) manner, managing function calls, local variables, and return addresses to enable proper execution flow. Each entry in the call stack, known as a stack frame, contains details like parameter values, return address, and local variables for a specific function call. Efficient management of the call stack is crucial for handling recursive functions and debugging program execution errors such as stack overflow.
Function Prologue/Epilogue
Function prologue sets up the stack frame by saving the return address, preserving callee-saved registers, and allocating space for local variables, ensuring proper function execution and context preservation. The epilogue restores the saved registers, deallocates the local stack space, and reestablishes the return address to resume execution in the caller function. This sequence maintains stack integrity and enables nested function calls in programming languages like C and assembly. Prologues and epilogues differ across architectures, such as x86 and ARM, based on calling conventions and register usage.
Local Variable Access
Local variable access in computer programming refers to retrieving or modifying variables declared within a function or block scope during program execution. These variables reside in the stack memory segment, enabling fast access due to their proximity to the CPU registers. Efficient local variable access reduces runtime overhead and enhances performance in languages like C, C++, and Java. Optimizing compilers leverage techniques such as register allocation and inline caching to speed up local variable handling.
Source and External Links
Stack and Frame Pointers in C - Sanfoundry - The stack pointer (SP) points to the top of the stack and changes as values are pushed or popped, while the frame pointer (FP) points to the base of the current stack frame and stays fixed during function execution, making FP very useful for stable access to local variables and debugging, whereas SP is essential for stack operations but less stable for referencing locals.
Difference Between Stack Pointer and Frame Pointer - The stack pointer always points to the next available stack address and can change during a function execution, while the frame pointer remains fixed to a stack frame base, allowing reliable access to parameters and local variables via hard-coded offsets.
What is a stack pointer? - TechTarget - The stack pointer changes dynamically to manage pushes and pops on the stack, whereas the frame pointer (also called EBP) provides a fixed reference point within the current stack frame, enabling consistent access to function parameters and local variables even as the stack pointer moves.
FAQs
What is a stack pointer?
A stack pointer is a CPU register that tracks the top address of the stack in memory, facilitating push and pop operations for function calls and local variable management.
What is a frame pointer?
A frame pointer is a dedicated CPU register that stores the base address of the current function's stack frame, enabling consistent access to local variables and function parameters during execution.
How does a stack pointer differ from a frame pointer?
A stack pointer (SP) tracks the top of the stack, dynamically changing with push/pop operations, while a frame pointer (FP) provides a stable reference to a fixed base within the current stack frame for accessing local variables and function parameters.
What is the role of the stack pointer in function calls?
The stack pointer tracks the top of the call stack, enabling function call management by saving return addresses, passing parameters, and allocating local variables.
What is the purpose of the frame pointer in a stack frame?
The frame pointer in a stack frame provides a stable reference address to access local variables, function parameters, and saved registers within that frame during function execution.
When is the frame pointer necessary?
The frame pointer is necessary when the function requires a stable reference to local variables and parameters, especially during debugging, variable-length stack allocations, or when the compiler omits frame pointer elimination for optimized code.
Why might a compiler omit using a frame pointer?
A compiler might omit using a frame pointer to optimize register usage and improve performance by freeing the frame pointer register for general-purpose tasks, reducing instruction overhead and enabling better instruction scheduling and stack space optimization.
