Dielectric constant measures a material's ability to store electrical energy in an electric field, influencing capacitance and insulation properties. Dielectric strength indicates the maximum electric field a material can withstand without breakdown, essential for preventing electrical failure. Explore more to understand how these properties impact insulation design and material selection.

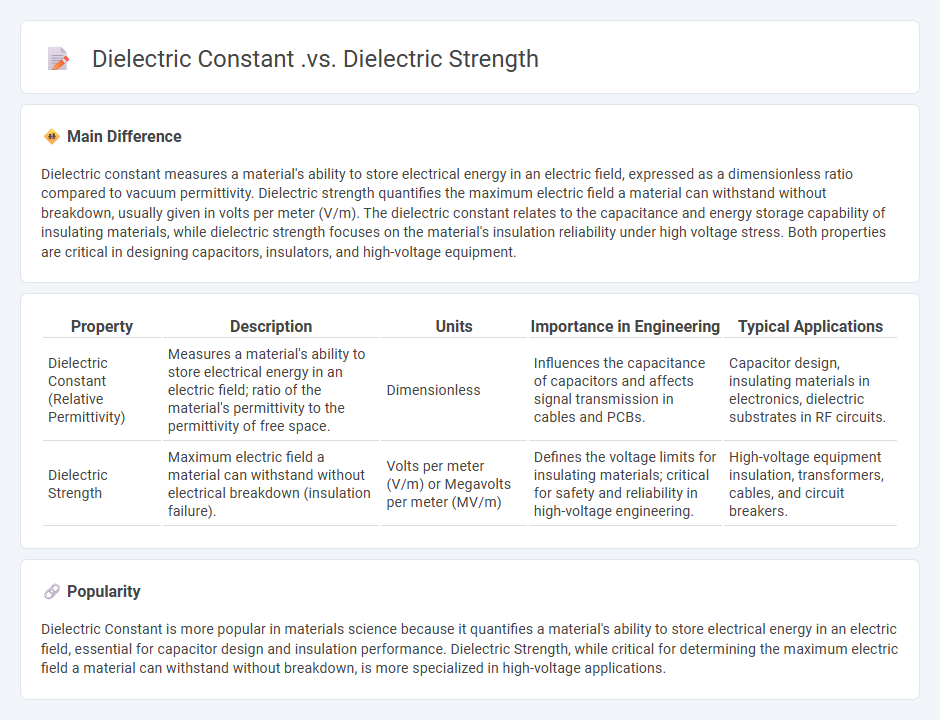

Main Difference
Dielectric constant measures a material's ability to store electrical energy in an electric field, expressed as a dimensionless ratio compared to vacuum permittivity. Dielectric strength quantifies the maximum electric field a material can withstand without breakdown, usually given in volts per meter (V/m). The dielectric constant relates to the capacitance and energy storage capability of insulating materials, while dielectric strength focuses on the material's insulation reliability under high voltage stress. Both properties are critical in designing capacitors, insulators, and high-voltage equipment.
Connection
Dielectric constant quantifies a material's ability to store electrical energy in an electric field, while dielectric strength measures the maximum electric field a material can withstand without breakdown. Higher dielectric constant materials often possess enhanced polarization capabilities, but their dielectric strength depends on factors like molecular structure and purity. Understanding the balance between dielectric constant and dielectric strength is critical for optimizing materials used in capacitors, insulators, and high-voltage applications.
Comparison Table
| Property | Description | Units | Importance in Engineering | Typical Applications |
|---|---|---|---|---|
| Dielectric Constant (Relative Permittivity) | Measures a material's ability to store electrical energy in an electric field; ratio of the material's permittivity to the permittivity of free space. | Dimensionless | Influences the capacitance of capacitors and affects signal transmission in cables and PCBs. | Capacitor design, insulating materials in electronics, dielectric substrates in RF circuits. |
| Dielectric Strength | Maximum electric field a material can withstand without electrical breakdown (insulation failure). | Volts per meter (V/m) or Megavolts per meter (MV/m) | Defines the voltage limits for insulating materials; critical for safety and reliability in high-voltage engineering. | High-voltage equipment insulation, transformers, cables, and circuit breakers. |
Permittivity
Permittivity is a fundamental electrical property of materials that quantifies their ability to store electric energy in an electric field, measured in farads per meter (F/m). In engineering, it plays a critical role in capacitor design, influencing capacitance and energy storage efficiency. The permittivity of free space (vacuum) is approximately 8.854 x 10^-12 F/m, while materials like ceramics and polymers exhibit varying permittivity values used to tailor dielectric properties in electronic components. Accurate understanding of permittivity improves electromagnetic field simulations, antenna performance, and sensor design across electrical and electronic engineering disciplines.
Breakdown Voltage
Breakdown voltage is the minimum voltage that causes a portion of an insulator to become electrically conductive, leading to a sudden increase in current and breakdown of the material. This critical voltage depends on factors such as material type, thickness, temperature, and electrode geometry. Silicon dioxide, commonly used in semiconductor devices, has a breakdown field strength of approximately 10 MV/cm. Accurately determining breakdown voltage is essential in designing reliable high-voltage equipment, including transformers, capacitors, and insulation systems.
Capacitance
Capacitance is a fundamental electrical property representing a component's ability to store electric charge per unit voltage, measured in farads (F). It primarily depends on the surface area of the conductive plates, the distance between them, and the dielectric material's permittivity. Engineers utilize capacitance in designing circuits for energy storage, filtering, and signal coupling in applications ranging from power supplies to communication devices. Advanced materials like ceramic, electrolytic, and tantalum capacitors offer specific capacitance values tailored to optimize performance in electronic systems.
Insulation Properties
High-performance insulation materials in engineering minimize heat transfer, improving energy efficiency in buildings and industrial systems. Common insulation types include fiberglass, foam boards, and spray foam, each with specific thermal conductivity values measured in W/m*K. Effective insulation reduces HVAC energy consumption by up to 50%, significantly lowering operational costs and carbon emissions. Selecting insulation with appropriate R-values tailored to local climate conditions ensures optimal thermal resistance and durability in engineering applications.
Material Polarization
Material polarization refers to the alignment of electric dipoles within a dielectric material when exposed to an external electric field, significantly affecting the material's permittivity and overall electrical behavior. This phenomenon is critical in the design of capacitors, insulators, and various electronic components, influencing energy storage capacity and dielectric breakdown strength. Engineers analyze polarization mechanisms such as electronic, ionic, dipolar, and space charge polarization to optimize material performance for specific applications. Advanced materials like ferroelectrics exhibit spontaneous polarization, enabling their use in sensors, actuators, and memory devices.
Source and External Links
Difference Between Dielectric Constant and Dielectric Strength - This webpage explains the key differences between dielectric constant and dielectric strength, highlighting their definitions, measures, and units.
Dielectric constant vs Dielectric strength - PEQVI Blog - This blog post discusses how dielectric constant measures a material's ability to store electrical energy, while dielectric strength measures its ability to withstand electrical stress.
Influence of dielectric constant on dielectric strength by defect - This article investigates the relationship between dielectric constant and dielectric strength, finding that an increase in dielectric constant can decrease dielectric strength in certain materials.
FAQs
What is a dielectric material?
A dielectric material is an electrical insulator that can be polarized by an applied electric field, increasing the material's ability to store electrical energy.
What is dielectric constant?
The dielectric constant, also known as relative permittivity, measures a material's ability to store electrical energy in an electric field compared to vacuum.
What is dielectric strength?
Dielectric strength is the maximum electric field a material can withstand without electrical breakdown or failure.
How is dielectric constant different from dielectric strength?
Dielectric constant measures a material's ability to store electrical energy as an electric field, while dielectric strength indicates the maximum electric field a material can withstand without electrical breakdown.
Why are both properties important in electrical applications?
Both electrical conductivity and thermal conductivity are important in electrical applications to ensure efficient current flow and effective heat dissipation, preventing overheating and maintaining device performance.
How do you measure dielectric constant and dielectric strength?
Measure dielectric constant using an LCR meter to determine capacitance (C), then calculate er = (C x d) / (e0 x A), where d is the dielectric thickness, A is electrode area, and e0 is vacuum permittivity. Measure dielectric strength by applying gradually increasing voltage across the dielectric until breakdown occurs, then calculate dielectric strength = breakdown voltage / dielectric thickness (V/m or kV/mm).
What factors affect dielectric constant and dielectric strength?
Dielectric constant is affected by material composition, molecular polarity, temperature, frequency, and humidity; dielectric strength depends on material type, purity, thickness, temperature, and electrode configuration.
