Flash Point indicates the lowest temperature at which a liquid emits enough vapor to ignite momentarily, while Fire Point marks the temperature where the vapor sustains combustion for at least five seconds. These critical measurements ensure proper handling and safety protocols in industries using flammable substances. Explore further to understand their implications in fire risk management and compliance standards.
Main Difference
Flash point is the lowest temperature at which a liquid produces enough vapor to ignite momentarily when exposed to an ignition source. Fire point is the temperature at which the liquid produces vapor sufficient to sustain continuous combustion for at least five seconds. Flash point indicates potential fire hazards, while fire point measures sustained burning capability. Both values are critical in assessing the safety and handling of flammable liquids.
Connection
Flash point indicates the lowest temperature at which a liquid produces enough vapor to ignite in air, while fire point is the temperature at which the vapor continues to burn for at least five seconds. Both are critical parameters used in assessing flammability and safety risks of fuels and chemicals. Understanding their relationship aids in designing appropriate storage, handling, and firefighting strategies.

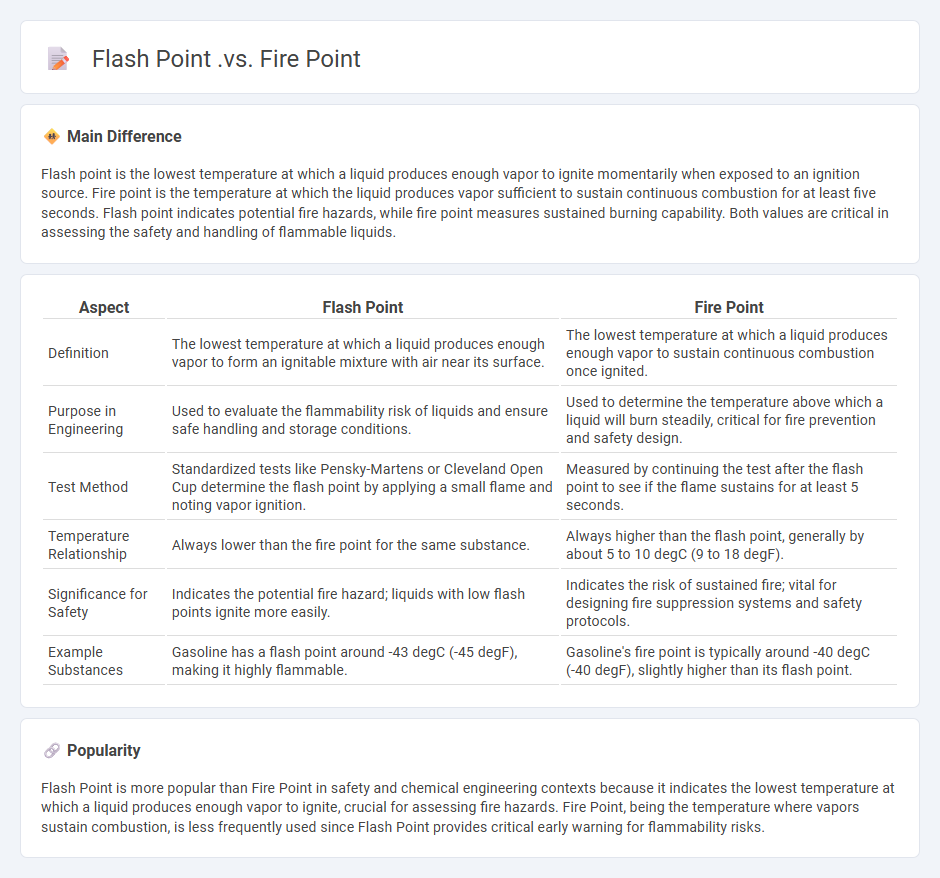

Comparison Table
| Aspect | Flash Point | Fire Point |
|---|---|---|
| Definition | The lowest temperature at which a liquid produces enough vapor to form an ignitable mixture with air near its surface. | The lowest temperature at which a liquid produces enough vapor to sustain continuous combustion once ignited. |
| Purpose in Engineering | Used to evaluate the flammability risk of liquids and ensure safe handling and storage conditions. | Used to determine the temperature above which a liquid will burn steadily, critical for fire prevention and safety design. |
| Test Method | Standardized tests like Pensky-Martens or Cleveland Open Cup determine the flash point by applying a small flame and noting vapor ignition. | Measured by continuing the test after the flash point to see if the flame sustains for at least 5 seconds. |
| Temperature Relationship | Always lower than the fire point for the same substance. | Always higher than the flash point, generally by about 5 to 10 degC (9 to 18 degF). |
| Significance for Safety | Indicates the potential fire hazard; liquids with low flash points ignite more easily. | Indicates the risk of sustained fire; vital for designing fire suppression systems and safety protocols. |
| Example Substances | Gasoline has a flash point around -43 degC (-45 degF), making it highly flammable. | Gasoline's fire point is typically around -40 degC (-40 degF), slightly higher than its flash point. |
Flash Point
Flash point in engineering refers to the lowest temperature at which a liquid produces sufficient vapor to ignite in air when exposed to an ignition source. This critical property is essential for assessing the fire hazard and safety measures of flammable liquids in industrial processes. Typical flash points vary widely; for example, gasoline ignites at approximately -43degC, while diesel fuel's flash point is around 52degC. Accurate determination of flash point complies with ASTM D56 and ISO 2719 standards to ensure safe storage and handling.
Fire Point
The fire point is the lowest temperature at which a liquid produces enough vapor to sustain continuous combustion for at least five seconds when exposed to an open flame. It is typically a few degrees higher than the flash point, which is the temperature at which vapors briefly ignite but do not sustain burning. The fire point provides a crucial safety parameter in engineering for handling flammable liquids, guiding storage and transportation protocols. Measurement of the fire point follows standardized methods such as ASTM D92, ensuring consistent and reliable fire hazard assessments.
Ignition Temperature
Ignition temperature refers to the minimum temperature at which a material spontaneously ignites without an external flame or spark. It is a critical parameter in engineering for ensuring safety in processes involving combustible substances. Materials like gasoline have an ignition temperature around 280degC, while wood ignites near 300degC to 400degC depending on moisture content. Accurate knowledge of ignition temperatures helps in designing effective fire prevention and control systems in industrial applications.
Combustibility
Combustibility in engineering refers to the ability of a material to ignite and sustain combustion when exposed to an ignition source. Materials such as hydrocarbons, plastics, and certain metals demonstrate varying degrees of combustibility, which directly influence safety protocols and fire prevention strategies in design and construction. Engineers assess combustibility through standardized tests like ASTM E1354 (Cone Calorimeter) and ISO 5660 to evaluate heat release rate and flame spread characteristics. Accurate measurement of combustibility informs the selection of fire-resistant materials to minimize risks in industrial applications and public infrastructure.
Safety Standards
Safety standards in engineering ensure the protection of workers, equipment, and the environment by establishing minimum requirements for design, construction, and operation. Organizations like OSHA, ANSI, and ISO develop and enforce regulations to mitigate risks associated with machinery, electrical systems, and structural integrity. Adhering to standards such as OSHA 1910 and ISO 45001 promotes workplace safety and compliance, reducing accident rates and liability. Engineering projects integrating these standards demonstrate enhanced reliability and sustainability while meeting legal obligations.
Source and External Links
Flash, Firing, Ignition Point - kolb Cleaning Technology - The flash point is the lowest temperature where a liquid gives off enough vapor to ignite momentarily with an ignition source, while the fire (firing) point is a slightly higher temperature at which combustion continues even after the ignition source is removed.
Flash point - Wikipedia - Flash point is the lowest temperature at which vapors can ignite momentarily, whereas fire point is the temperature where vapors keep burning after ignition, typically higher than the flash point.
what is a flash point and a fire point? - Engineering.com - The flash point is the lowest temperature a liquid releases ignitable vapors, but combustion may cease when the ignition source is removed; the fire point is a higher temperature where vapors sustain continuous burning for at least 5 seconds.
FAQs
What is flash point?
The flash point is the lowest temperature at which a liquid produces enough vapor to ignite in air.
What is fire point?
Fire point is the lowest temperature at which a liquid produces enough vapor to ignite and sustain combustion for at least 5 seconds.
What is the difference between flash point and fire point?
Flash point is the lowest temperature at which a liquid emits enough vapor to form an ignitable mixture with air, causing a brief flash when exposed to an ignition source. Fire point is the temperature at which the vapor continues to burn for at least five seconds after ignition, indicating sustained combustion.
Why are flash point and fire point important in safety?
Flash point and fire point are critical in safety because they indicate the temperatures at which a liquid produces enough vapor to ignite (flash point) and sustain combustion (fire point), helping to assess fire hazards and prevent accidental fires in storage and handling.
How are flash point and fire point measured?
Flash point is measured using closed cup or open cup testers like Pensky-Martens or Cleveland open cup, determining the lowest temperature at which vapor ignites momentarily. Fire point is measured using the same apparatus, recording the temperature at which vapor sustains continuous combustion for at least 5 seconds.
What factors affect flash point and fire point?
Flash point and fire point are affected by fuel composition, ambient temperature, vapor pressure, evaporation rate, and presence of impurities or additives.
How do flash point and fire point relate to flammability?
Flash point indicates the lowest temperature at which a liquid emits enough vapor to ignite momentarily, while fire point is the temperature where the liquid produces vapor sustaining continuous combustion; both are critical parameters assessing a substance's flammability risk.
