Fatigue limit refers to the maximum stress a material can endure for an infinite number of cycles without failure, while endurance limit specifically denotes the stress threshold below which a material can withstand cyclic loading indefinitely. Understanding these critical values is essential for designing components subjected to repetitive stress to prevent unexpected fatigue fractures. Explore more to grasp how these limits influence material selection and structural safety.

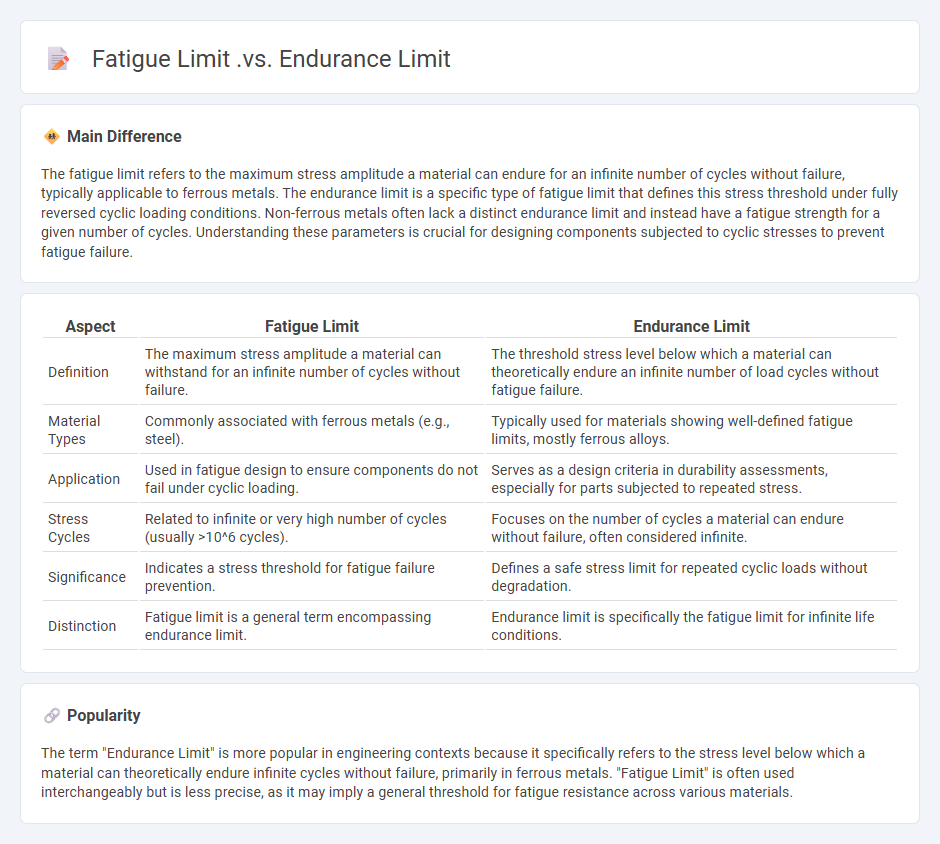

Main Difference
The fatigue limit refers to the maximum stress amplitude a material can endure for an infinite number of cycles without failure, typically applicable to ferrous metals. The endurance limit is a specific type of fatigue limit that defines this stress threshold under fully reversed cyclic loading conditions. Non-ferrous metals often lack a distinct endurance limit and instead have a fatigue strength for a given number of cycles. Understanding these parameters is crucial for designing components subjected to cyclic stresses to prevent fatigue failure.
Connection
Fatigue limit defines the stress level below which a material can withstand cyclic loading indefinitely without failure, while endurance limit specifically refers to this threshold in ferrous and some non-ferrous metals. Both terms represent critical parameters in fatigue analysis, indicating the maximum stress amplitude a material can endure for an infinite number of cycles. Understanding the relationship between these limits is essential for designing durable components subjected to repetitive stress.
Comparison Table
| Aspect | Fatigue Limit | Endurance Limit |
|---|---|---|
| Definition | The maximum stress amplitude a material can withstand for an infinite number of cycles without failure. | The threshold stress level below which a material can theoretically endure an infinite number of load cycles without fatigue failure. |
| Material Types | Commonly associated with ferrous metals (e.g., steel). | Typically used for materials showing well-defined fatigue limits, mostly ferrous alloys. |
| Application | Used in fatigue design to ensure components do not fail under cyclic loading. | Serves as a design criteria in durability assessments, especially for parts subjected to repeated stress. |
| Stress Cycles | Related to infinite or very high number of cycles (usually >10^6 cycles). | Focuses on the number of cycles a material can endure without failure, often considered infinite. |
| Significance | Indicates a stress threshold for fatigue failure prevention. | Defines a safe stress limit for repeated cyclic loads without degradation. |
| Distinction | Fatigue limit is a general term encompassing endurance limit. | Endurance limit is specifically the fatigue limit for infinite life conditions. |
Fatigue Limit
The fatigue limit, also known as the endurance limit, is the maximum stress amplitude a material can withstand for an infinite number of load cycles without failure. For ferrous metals such as steel, the fatigue limit typically ranges between 40% to 60% of the ultimate tensile strength. Non-ferrous metals, like aluminum, generally lack a defined fatigue limit and exhibit continuous fatigue strength decay with increased cycles. Accurate determination of the fatigue limit is crucial for designing durable components subjected to cyclic loading in automotive, aerospace, and structural engineering applications.
Endurance Limit
The endurance limit in engineering refers to the maximum stress level a material can withstand indefinitely without experiencing fatigue failure. For ferrous metals like steel, the endurance limit typically ranges from 35% to 50% of the ultimate tensile strength. This property is crucial in designing components subjected to cyclic loading, such as automotive axle shafts or aircraft wings. Understanding the endurance limit helps engineers predict fatigue life and enhance structural reliability.
Stress Cycles
Stress cycles in engineering refer to the repetitive application of stress or load on a material, often leading to fatigue failure over time. Engineers analyze stress cycles using S-N curves, which plot stress amplitude against the number of cycles to failure, to predict material durability under cyclic loading. Materials such as steel and aluminum alloys are commonly evaluated for their endurance limits to ensure structural integrity in applications like bridges, aircraft, and machinery components. Finite element analysis (FEA) is frequently employed to simulate stress cycles and optimize designs for improved fatigue resistance.
Infinite Life
Infinite Life in engineering refers to the concept of designing structures or components to withstand cyclic loading indefinitely without failure. Fatigue analysis employs S-N curves to predict the stress amplitude at which materials endure an infinite number of cycles, typically around 10^7 to 10^8 cycles. Materials like high-strength steel and titanium alloys are engineered for infinite life in critical applications such as aerospace, bridges, and rotating machinery. Advanced surface treatments and load reduction techniques enhance fatigue resistance, ensuring durability and safety throughout the component's operational lifespan.
S-N Curve
The S-N curve, also known as the Wohler curve, represents the relationship between cyclic stress (S) and the number of cycles to failure (N) for a given material. It is a critical tool in fatigue analysis, used to predict the lifespan of components subjected to repetitive loading in engineering applications. Data for S-N curves are typically obtained from fatigue testing, where specimens are subjected to controlled stress amplitudes until failure occurs. This curve helps engineers design durable structures by selecting materials and stress limits that minimize fatigue failure risks.
Source and External Links
Fatigue limit - Wikipedia - The fatigue limit, also known as the endurance limit, is the stress level below which a material can theoretically withstand an infinite number of load cycles without fatigue failure; some metals like steel have a clear limit, while others do not, and the terms are sometimes used interchangeably or subtly differentiated depending on the material and context.
Fatigue Strength & Limits: A Materials-Specific Guide - SDC Verifier - The fatigue limit (or endurance limit) is the maximum stress a material can endure indefinitely without failure, whereas fatigue strength refers to the maximum stress a material withstands for a specific, finite number of cycles before failure.
Fatigue Limit and Material Performance - The fatigue limit (endurance limit) defines the maximum stress a material can endure for an infinite number of cycles without failure, critical for material selection in cyclic loading conditions, and influenced by material composition, microstructure, and other factors.
FAQs
What is fatigue limit?
Fatigue limit is the maximum stress level a material can withstand indefinitely without experiencing fatigue failure.
What is endurance limit?
Endurance limit is the maximum stress a material can withstand indefinitely without fatigue failure.
How do fatigue limit and endurance limit differ?
Fatigue limit is the stress level below which a material can endure an infinite number of cycles without failure, while endurance limit specifically refers to the maximum stress a ferrous material can withstand indefinitely without fatigue failure.
What factors affect the fatigue limit of a material?
Microstructure, surface finish, loading conditions, temperature, and environmental exposure significantly affect a material's fatigue limit.
How is endurance limit determined in metals?
Endurance limit in metals is determined through rotating bending or axial fatigue tests by applying cyclic stresses and recording the stress level at which the metal can withstand infinite cycles without failure.
Why are fatigue and endurance limits important in engineering?
Fatigue and endurance limits are crucial in engineering to prevent material failure under repetitive loading, ensuring structural safety, reliability, and longevity of components and systems.
Do all materials have a fatigue or endurance limit?
Ferrous metals like steel have a defined fatigue limit, while most non-ferrous metals and polymers lack a true endurance limit and exhibit fatigue failure at varying stress levels.
