Bridge Rectifier vs Center Tap Rectifier - Key Differences and Applications in Engineering

Bridge rectifiers use four diodes arranged in a bridge configuration to convert AC to DC, providing full-wave rectification without the need for a center-tapped transformer. Center tap rectifiers utilize two diodes and require a center-tapped transformer to achieve full-wave rectification, making the transformer design more complex but often more efficient for certain voltage levels. Explore the key differences in efficiency, transformer requirements, and applications to determine the best rectifier type for your electrical projects.

Main Difference

A bridge rectifier uses four diodes arranged in a bridge configuration to convert AC to DC, providing full-wave rectification without the need for a center-tapped transformer. In contrast, a center tap rectifier employs two diodes and requires a center-tapped transformer to produce full-wave rectification. Bridge rectifiers offer higher efficiency and better transformer utilization while center tap rectifiers are simpler but demand a more complex transformer design. The voltage output of a bridge rectifier is approximately twice the peak voltage minus diode drops, whereas a center tap rectifier outputs roughly the peak voltage minus diode drops.

Connection

A bridge rectifier consists of four diodes arranged in a bridge configuration to convert alternating current (AC) into direct current (DC) and is connected directly across the AC supply. A center tap rectifier uses two diodes and a center-tapped transformer secondary winding, with the center tap providing a neutral point that divides the AC voltage into two equal halves for full-wave rectification. Both rectifiers connect the AC supply to the diode network, but the bridge rectifier uses four diodes without a center tap transformer, while the center tap rectifier relies on the center-tapped transformer to provide two voltage halves for rectification.

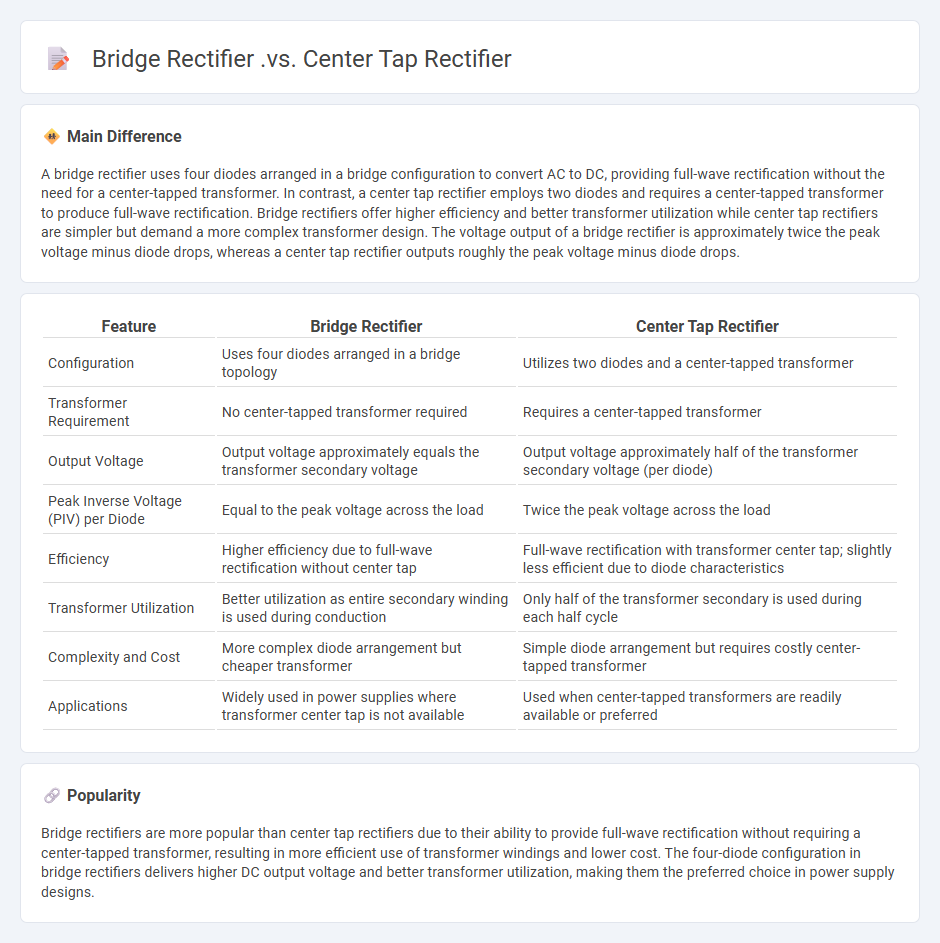

Comparison Table

Feature Bridge Rectifier Center Tap Rectifier
Configuration Uses four diodes arranged in a bridge topology Utilizes two diodes and a center-tapped transformer
Transformer Requirement No center-tapped transformer required Requires a center-tapped transformer
Output Voltage Output voltage approximately equals the transformer secondary voltage Output voltage approximately half of the transformer secondary voltage (per diode)
Peak Inverse Voltage (PIV) per Diode Equal to the peak voltage across the load Twice the peak voltage across the load
Efficiency Higher efficiency due to full-wave rectification without center tap Full-wave rectification with transformer center tap; slightly less efficient due to diode characteristics
Transformer Utilization Better utilization as entire secondary winding is used during conduction Only half of the transformer secondary is used during each half cycle
Complexity and Cost More complex diode arrangement but cheaper transformer Simple diode arrangement but requires costly center-tapped transformer
Applications Widely used in power supplies where transformer center tap is not available Used when center-tapped transformers are readily available or preferred

AC to DC Conversion

AC to DC conversion is a critical process in electrical engineering that involves transforming alternating current (AC) into direct current (DC) using rectifiers, typically comprising diodes or thyristors. This conversion is essential for powering electronic devices, battery charging systems, and DC motor drives. The efficiency and output quality depend on the rectifier design, filtering components, and the input AC waveform. Advances in power electronics have led to sophisticated AC-DC converters that offer improved regulation, reduced harmonic distortion, and higher energy efficiency.

Transformer Utilization

Transformers play a crucial role in electrical engineering by efficiently stepping voltage levels up or down within power distribution systems, minimizing energy loss across long distances. Their applications span from residential power supply, industrial machinery, to renewable energy systems such as wind turbines and solar farms. Advanced transformer designs incorporate materials like amorphous steel to reduce core losses and improve energy efficiency. Emerging trends focus on smart transformers integrated with IoT sensors for real-time monitoring and predictive maintenance in smart grids.

Peak Inverse Voltage

Peak Inverse Voltage (PIV) is the maximum voltage a diode can withstand in the reverse-biased direction without breaking down. It is a critical parameter in designing rectifier circuits to ensure diodes operate reliably under high voltage conditions. For silicon diodes, typical PIV ratings range from 50V to several thousand volts, depending on the device specifications. Selection of diodes with appropriate PIV ratings helps prevent reverse voltage breakdown and circuit failure in power electronic applications.

Efficiency

Efficiency in engineering measures the ratio of useful output energy or work to the total input energy, expressed as a percentage. High efficiency indicates minimal energy loss due to factors such as friction, heat dissipation, or mechanical wear, improving system performance and sustainability. Commonly evaluated in systems like engines, turbines, and electrical devices, efficiency impacts operational cost and environmental footprint significantly. Optimizing efficiency involves advanced materials, precision manufacturing, and innovative design to maximize energy conversion and reduce waste.

Application Suitability

Application suitability in engineering focuses on evaluating whether a material, technology, or process meets the specific technical requirements and environmental conditions of a project. This assessment considers factors such as mechanical properties, durability, cost-effectiveness, and compliance with industry standards like ASTM or ISO. Engineers utilize simulation tools and real-world testing to validate performance under operational stresses and lifecycle scenarios. Prioritizing application suitability ensures optimized efficiency, safety, and sustainability in engineering solutions.

Source and External Links

Difference Between Center Tap Full Wave Rectifier And Bridge Rectifier - The center tap rectifier uses a transformer with a center-tapped secondary and two diodes, while the bridge rectifier uses four diodes and does not require a center tap on the transformer.

Write the comparison center tapped between full wave rectifier and bridge rectifier - The center tap rectifier requires only two diodes and has a diode peak inverse voltage (PIV) equal to twice the transformer secondary voltage, whereas the bridge rectifier uses four diodes and each diode experiences a PIV equal to the peak secondary voltage.

Differences between Full Wave Bridge & Center Tapped Full Wave Rectifier - Bridge rectifiers are generally more cost-effective as they avoid the need for a bulky and expensive center-tapped transformer, making them more common in modern designs.

FAQs

What is a rectifier?

A rectifier is an electronic device that converts alternating current (AC) into direct current (DC) by allowing current to flow in only one direction.

What is a bridge rectifier?

A bridge rectifier is an electrical circuit using four diodes arranged in a bridge configuration to convert alternating current (AC) into direct current (DC) efficiently.

What is a center tap rectifier?

A center tap rectifier is a type of full-wave rectifier that uses a transformer with a center-tapped secondary winding to convert alternating current (AC) into direct current (DC), utilizing two diodes to provide two rectified half-cycles.

What are the main differences between bridge and center tap rectifiers?

A bridge rectifier uses four diodes arranged in a bridge configuration to convert AC to full-wave DC without needing a center-tapped transformer; a center tap rectifier uses two diodes and requires a center-tapped transformer to provide full-wave rectification. Bridge rectifiers offer higher transformer utilization and no center tap, while center tap rectifiers have simpler diode arrangements but need specialized transformers.

Which rectifier provides higher efficiency?

A synchronous rectifier provides higher efficiency compared to a diode rectifier.

What are the advantages and disadvantages of bridge and center tap rectifiers?

Bridge rectifiers provide full-wave rectification using four diodes, offering higher efficiency and no transformer center tap requirement, but they involve higher diode voltage drops and increased component count. Center tap rectifiers use two diodes with a center-tapped transformer to achieve full-wave rectification, resulting in lower diode voltage drop and simpler diode configuration, but require a center-tapped transformer that is bulkier and more expensive.

Which applications use bridge or center tap rectifiers?

Bridge rectifiers are used in power supplies for electronic devices, battery charging circuits, and DC motor drives; center tap rectifiers are commonly applied in low-voltage power supplies, audio amplifiers, and transformer-based AC to DC conversion systems.
