Rayleigh damping combines mass and stiffness-proportional components to model energy dissipation in structures, frequently used in dynamic analysis of buildings and bridges. Coulomb damping, characterized by constant frictional force independent of velocity, models energy loss due to sliding or friction between surfaces. Explore detailed comparisons of Rayleigh and Coulomb damping to optimize structural vibration control.
Main Difference
Rayleigh damping combines mass-proportional and stiffness-proportional components to model energy dissipation in structures undergoing dynamic loading, typically expressed as a linear combination of mass and stiffness matrices. Coulomb damping, also known as dry friction damping, represents energy loss due to frictional forces between sliding surfaces, characterized by a constant friction force independent of velocity. Rayleigh damping is velocity-dependent and often used in finite element analysis for structural vibrations, while Coulomb damping introduces a non-linear, velocity-independent dissipation mechanism. The choice between them depends on the specific material behavior and the nature of energy dissipation in the system under study.
Connection
Rayleigh damping combines mass-proportional and stiffness-proportional damping to model energy dissipation in dynamic systems, while Coulomb damping represents constant frictional force opposing motion. Both mechanisms describe energy loss in mechanical vibrations but differ in linearity; Rayleigh damping varies with velocity and displacement, whereas Coulomb damping is velocity-independent and characterized by a fixed friction force. Understanding their interaction helps in accurately simulating damping behavior in structural dynamics and mechanical systems.

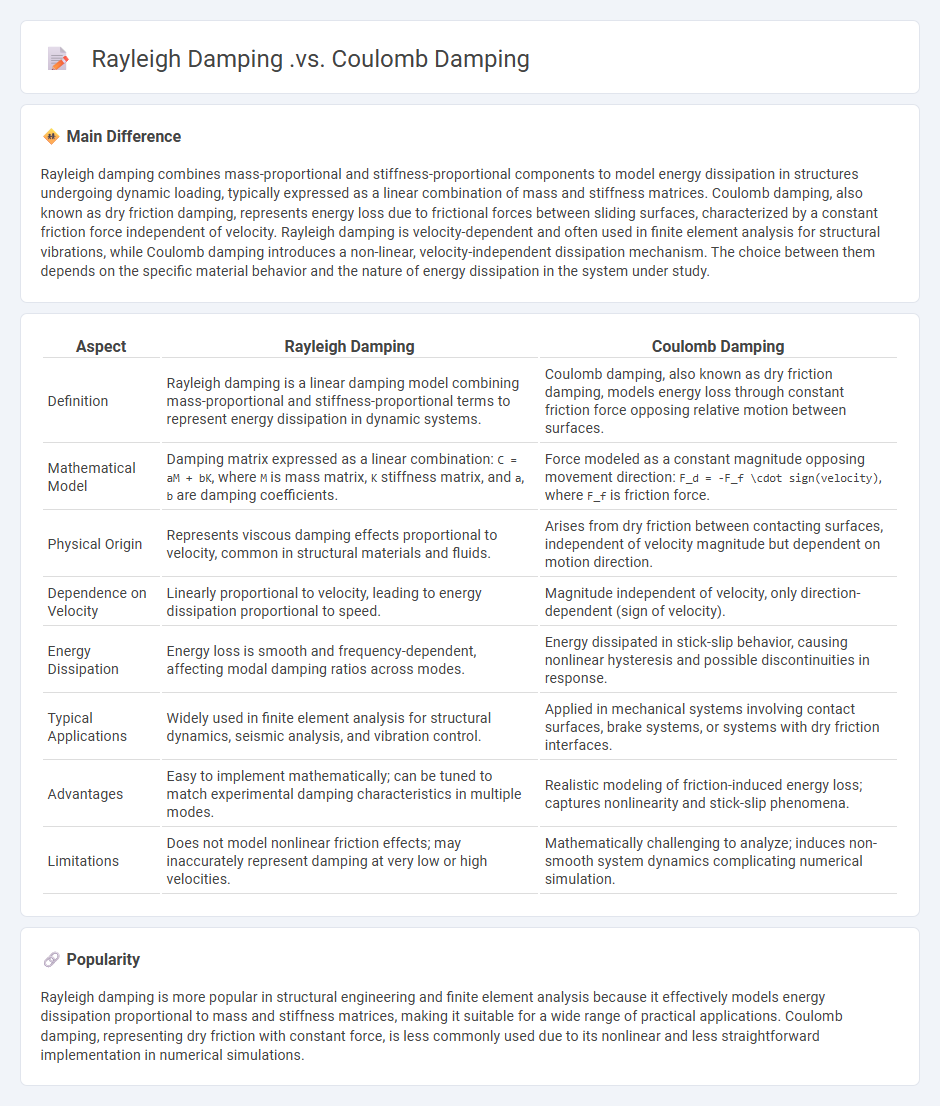

Comparison Table
| Aspect | Rayleigh Damping | Coulomb Damping |
|---|---|---|
| Definition | Rayleigh damping is a linear damping model combining mass-proportional and stiffness-proportional terms to represent energy dissipation in dynamic systems. | Coulomb damping, also known as dry friction damping, models energy loss through constant friction force opposing relative motion between surfaces. |
| Mathematical Model | Damping matrix expressed as a linear combination: C = aM + bK, where M is mass matrix, K stiffness matrix, and a, b are damping coefficients. |
Force modeled as a constant magnitude opposing movement direction: F_d = -F_f \cdot sign(velocity), where F_f is friction force. |
| Physical Origin | Represents viscous damping effects proportional to velocity, common in structural materials and fluids. | Arises from dry friction between contacting surfaces, independent of velocity magnitude but dependent on motion direction. |
| Dependence on Velocity | Linearly proportional to velocity, leading to energy dissipation proportional to speed. | Magnitude independent of velocity, only direction-dependent (sign of velocity). |
| Energy Dissipation | Energy loss is smooth and frequency-dependent, affecting modal damping ratios across modes. | Energy dissipated in stick-slip behavior, causing nonlinear hysteresis and possible discontinuities in response. |
| Typical Applications | Widely used in finite element analysis for structural dynamics, seismic analysis, and vibration control. | Applied in mechanical systems involving contact surfaces, brake systems, or systems with dry friction interfaces. |
| Advantages | Easy to implement mathematically; can be tuned to match experimental damping characteristics in multiple modes. | Realistic modeling of friction-induced energy loss; captures nonlinearity and stick-slip phenomena. |
| Limitations | Does not model nonlinear friction effects; may inaccurately represent damping at very low or high velocities. | Mathematically challenging to analyze; induces non-smooth system dynamics complicating numerical simulation. |
Energy Dissipation
Energy dissipation in engineering refers to the process of converting mechanical or electrical energy into heat or other non-recoverable forms to reduce the energy load in systems such as structures, machines, or electronic circuits. Common mechanisms include friction, damping materials, and resistive elements designed to protect components from damage caused by excess energy. Techniques like viscoelastic damping and tuned mass dampers are widely employed in civil engineering to mitigate vibrations in buildings and bridges. Effective energy dissipation enhances system stability, safety, and longevity by controlling dynamic responses under operational or environmental forces.
Frequency Dependence
Frequency dependence in engineering refers to how the behavior of materials, circuits, or systems changes with varying frequency of the input signal. Electrical components like capacitors and inductors exhibit frequency-dependent impedance, influencing signal transmission and filtering performance. In structural engineering, materials such as concrete and steel show different damping and stiffness characteristics under dynamic loading across frequency spectra. Accurate modeling of frequency dependence is essential for designing reliable electronic devices, communication systems, and vibration control mechanisms.
Mathematical Modeling
Mathematical modeling in engineering involves creating abstract representations of physical systems using mathematical equations to predict behavior and optimize designs. Techniques include differential equations, numerical simulations, and statistical models tailored to fields like structural analysis, fluid dynamics, and control systems. Engineers utilize software tools such as MATLAB, ANSYS, and COMSOL Multiphysics to implement models and validate results against experimental data. These models enhance decision-making, reduce prototyping costs, and improve system performance across diverse engineering disciplines.
Material Behavior
Material behavior in engineering encompasses the study of how materials respond to various forces, stresses, and environmental conditions. Key properties such as elasticity, plasticity, toughness, and fatigue resistance determine the suitability of metals, polymers, ceramics, and composites for specific applications. Engineers analyze stress-strain relationships, failure mechanisms, and thermal responses to optimize design and ensure structural integrity. Advanced characterization techniques like scanning electron microscopy and X-ray diffraction enable precise understanding of microstructural influences on performance.
Application Suitability
Application suitability in engineering involves assessing the compatibility of materials, techniques, or technologies with specific project requirements and environmental conditions. It requires evaluating factors such as durability, cost-effectiveness, performance under stress, and compliance with industry standards like ASTM or ISO. Engineers use modeling software such as MATLAB or ANSYS to simulate conditions and optimize application choices. Accurate suitability analysis enhances project efficiency, safety, and long-term reliability.
Source and External Links
Dynamic Damping -- Itasca Software 9.0 documentation - This discusses Rayleigh damping in FLAC3D, comparing it with hysteretic damping for different structural conditions.
Study Rayleigh Damping in Structures - This study examines the consequences of using Rayleigh damping in inelastic structures, highlighting potential issues with overestimation.
Damping models - TU Delft OpenCourseWare - This lecture includes Coulomb damping, which is based on friction, compared to Rayleigh damping, which involves proportional terms.
FAQs
What is damping in mechanical systems?
Damping in mechanical systems is the process of dissipating energy to reduce vibrations and oscillations.
How does Rayleigh damping work?
Rayleigh damping works by combining mass-proportional and stiffness-proportional damping, expressed as C = aM + bK, where C is the damping matrix, M is the mass matrix, K is the stiffness matrix, a is the mass damping coefficient, and b is the stiffness damping coefficient, allowing controlled energy dissipation in dynamic structural analysis.
What is Coulomb damping?
Coulomb damping is a friction-based vibration damping mechanism where the energy dissipation occurs through constant-magnitude, velocity-independent frictional force opposing motion.
What are the main differences between Rayleigh damping and Coulomb damping?
Rayleigh damping depends on mass and stiffness proportional coefficients causing frequency-dependent energy dissipation, while Coulomb damping involves a constant friction force opposing motion, independent of frequency.
Where is Rayleigh damping commonly used?
Rayleigh damping is commonly used in structural engineering and earthquake engineering for modeling energy dissipation in dynamic analysis of buildings, bridges, and other infrastructure.
In which scenarios is Coulomb damping more effective?
Coulomb damping is more effective in mechanical systems with low-frequency vibrations, significant frictional contact, or where energy dissipation through dry friction is dominant.
How do Rayleigh and Coulomb damping affect system vibrations?
Rayleigh damping causes vibration energy dissipation proportional to mass and stiffness, influencing low and high-frequency modes, while Coulomb damping induces constant frictional forces that limit amplitude and result in nonlinear vibration decay.
