Spiral heat exchangers use a continuous spiral flow path for efficient heat transfer between two fluids, ideal for handling viscous or fouling fluids. Plate heat exchangers consist of stacked plates with large surface areas promoting rapid heat exchange in compact spaces, suitable for various industries including HVAC and food processing. Explore detailed comparisons to determine the best heat exchanger for your specific application needs.
Main Difference
The main difference between a spiral heat exchanger and a plate heat exchanger lies in their design and flow patterns. Spiral heat exchangers feature a continuous spiral channel for fluid flow, promoting efficient heat transfer with self-cleaning capabilities ideal for handling dirty or viscous fluids. Plate heat exchangers consist of multiple thin, corrugated plates stacked together, maximizing surface area for rapid heat transfer in compact spaces. Spiral heat exchangers are preferred in applications requiring fouling resistance, while plate heat exchangers excel in high-efficiency, easy-maintenance scenarios.
Connection
Spiral heat exchangers and plate heat exchangers are connected through their shared function of transferring heat efficiently between fluids in a compact design. Both employ unique geometric arrangements--spiral channels in spiral heat exchangers and stacked plates in plate heat exchangers--to maximize surface area and enhance thermal performance. Integration in processes often involves selecting the appropriate exchanger based on fluid characteristics, fouling tendencies, and space constraints for optimized thermal management.
Comparison Table

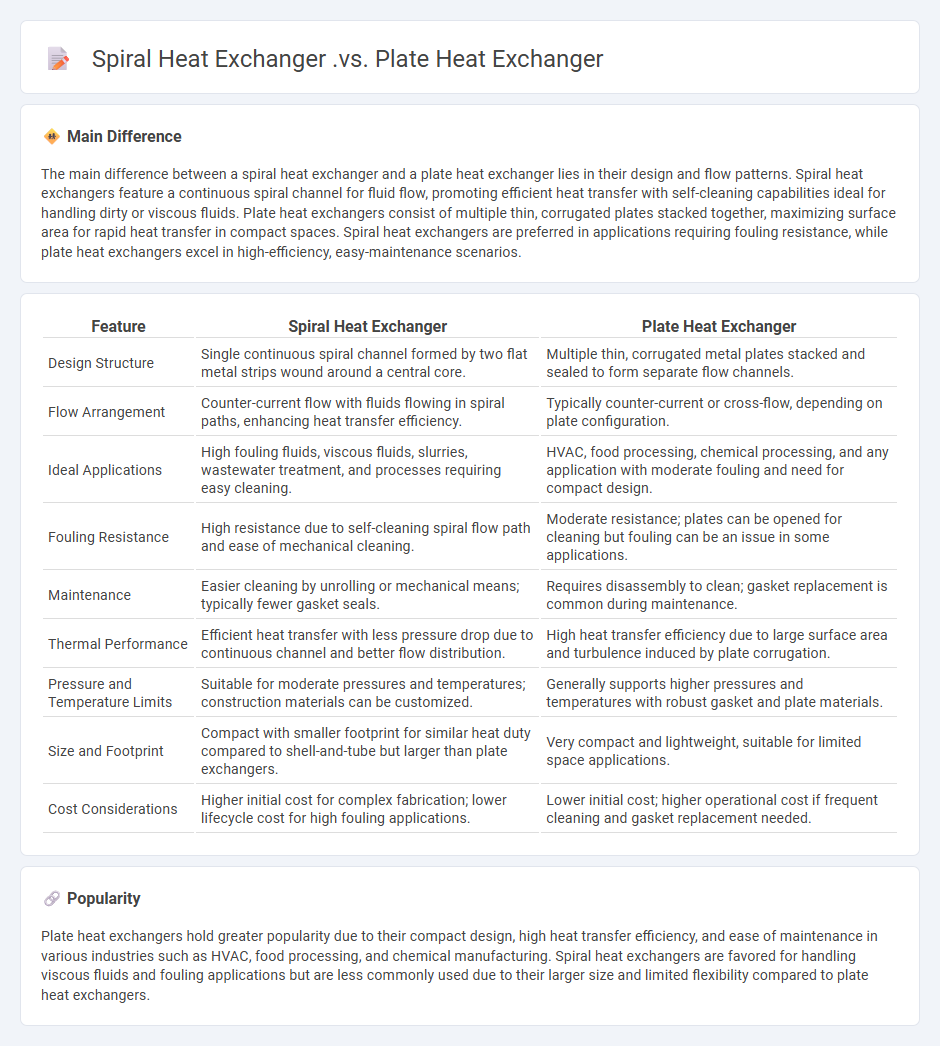

| Feature | Spiral Heat Exchanger | Plate Heat Exchanger |
|---|---|---|
| Design Structure | Single continuous spiral channel formed by two flat metal strips wound around a central core. | Multiple thin, corrugated metal plates stacked and sealed to form separate flow channels. |
| Flow Arrangement | Counter-current flow with fluids flowing in spiral paths, enhancing heat transfer efficiency. | Typically counter-current or cross-flow, depending on plate configuration. |
| Ideal Applications | High fouling fluids, viscous fluids, slurries, wastewater treatment, and processes requiring easy cleaning. | HVAC, food processing, chemical processing, and any application with moderate fouling and need for compact design. |
| Fouling Resistance | High resistance due to self-cleaning spiral flow path and ease of mechanical cleaning. | Moderate resistance; plates can be opened for cleaning but fouling can be an issue in some applications. |
| Maintenance | Easier cleaning by unrolling or mechanical means; typically fewer gasket seals. | Requires disassembly to clean; gasket replacement is common during maintenance. |
| Thermal Performance | Efficient heat transfer with less pressure drop due to continuous channel and better flow distribution. | High heat transfer efficiency due to large surface area and turbulence induced by plate corrugation. |
| Pressure and Temperature Limits | Suitable for moderate pressures and temperatures; construction materials can be customized. | Generally supports higher pressures and temperatures with robust gasket and plate materials. |
| Size and Footprint | Compact with smaller footprint for similar heat duty compared to shell-and-tube but larger than plate exchangers. | Very compact and lightweight, suitable for limited space applications. |
| Cost Considerations | Higher initial cost for complex fabrication; lower lifecycle cost for high fouling applications. | Lower initial cost; higher operational cost if frequent cleaning and gasket replacement needed. |
Heat Transfer Efficiency
Heat transfer efficiency in engineering measures the effectiveness of thermal energy transfer between systems or materials, crucial for optimizing energy consumption and system performance. Enhanced heat exchangers, such as plate and shell-and-tube designs, achieve efficiencies exceeding 85% by maximizing surface area and minimizing thermal resistance. Advanced materials like graphene and ceramics improve conduction rates while minimizing heat loss in industrial applications. Precise control of convection parameters and radiation properties further boosts overall thermal management in power plants and HVAC systems.
Fouling Resistance
Fouling resistance in engineering refers to the ability of surfaces or systems to prevent the accumulation of unwanted materials such as biofilms, scale, or particulates that reduce efficiency. It is critical in heat exchangers, pipelines, and membrane technologies where buildup can lead to increased energy consumption and maintenance costs. Materials with hydrophobic or anti-adhesive coatings often exhibit enhanced fouling resistance by minimizing surface interactions with contaminants. Engineers use fouling resistance metrics to design durable equipment that maintains performance over extended operational periods.
Maintenance Accessibility
Maintenance accessibility in engineering focuses on designing systems and components to allow easy inspection, repair, and replacement, minimizing downtime and labor costs. It involves strategic placement of equipment, clear labeling, and the use of modular components to facilitate rapid access. Effective maintenance accessibility enhances operational efficiency and extends the lifespan of machinery by reducing the risk of damage during servicing. Industry standards such as ISO 55000 provide guidelines for asset management that emphasize maintenance accessibility.
Flow Configuration
Flow configuration in engineering involves the strategic arrangement and control of fluid pathways to optimize system performance, efficiency, and safety. It encompasses the design of piping networks, valve placement, and pump selection to manage flow rates, pressure drops, and fluid dynamics. Advanced computational tools, such as CFD (Computational Fluid Dynamics), are widely used to simulate and refine flow configurations in various industries including chemical processing, HVAC, and water treatment. Proper flow configuration reduces energy consumption and minimizes operational costs while ensuring compliance with engineering standards such as ASME and ISO.
Industrial Applications
Industrial applications in engineering encompass manufacturing automation, process optimization, and quality control systems. Advanced robotics enable precise assembly and welding in automotive and aerospace industries, increasing productivity and safety. Computational fluid dynamics (CFD) models are critical for designing efficient HVAC systems and chemical reactors, reducing energy consumption and emissions. Predictive maintenance technologies, using IoT sensors and machine learning, minimize downtime and operational costs in heavy industry sectors.
Source and External Links
Spiral Heat Exchanger | Advantages - Gooch Thermal - Spiral heat exchangers have a unique circular design with single, long spiral flow passages offering high thermal efficiency, self-cleaning capability, compact size, and ease of maintenance, making them ideal for tough fluids and fouling conditions, operating mainly in countercurrent flow.
Comparative Analysis of Spiral Heat Exchanger and Gasketed Plate Type Heat Exchanger - Performance studies show that gasketed plate heat exchangers outperform spiral heat exchangers in terms of overall heat transfer coefficient, with the plate heat exchanger achieving up to 86.8% higher efficiency than the spiral type.
Which Heat Exchanger Is Best? The Three Main Types Explained - Plate heat exchangers provide very high heat transfer efficiency due to large surface area and corrugated plates, offer easier maintenance and modularity compared to spiral heat exchangers, and are commonly gasketed, brazed, or welded for varied industrial applications.
FAQs
What is a heat exchanger?
A heat exchanger is a device designed to transfer heat between two or more fluids without mixing them, commonly used in HVAC, power plants, refrigeration, and chemical processing industries.
What is the difference between spiral and plate heat exchangers?
Spiral heat exchangers feature continuous spiral channels for efficient heat transfer and fouling resistance, ideal for handling viscous fluids and slurries. Plate heat exchangers consist of stacked corrugated plates creating multiple parallel flow channels, offering high heat transfer rates and easy maintenance but lower fouling tolerance.
How does a spiral heat exchanger work?
A spiral heat exchanger transfers heat between two fluids flowing in separate spiral channels, maximizing heat transfer surface area while ensuring efficient counter-current flow and minimizing fouling.
What are the advantages of a plate heat exchanger?
Plate heat exchangers offer high thermal efficiency, compact size, ease of maintenance, flexibility in capacity adjustment, and cost-effectiveness compared to shell-and-tube heat exchangers.
Where are spiral heat exchangers commonly used?
Spiral heat exchangers are commonly used in wastewater treatment, chemical processing, food and beverage industries, and industries requiring efficient handling of viscous fluids or fluids with suspended solids.
What are the maintenance requirements for each type?
Gasoline engines require regular oil changes every 3,000 to 5,000 miles, air filter replacements every 12,000 miles, and spark plug checks every 30,000 miles. Diesel engines need fuel filter replacements every 10,000 to 15,000 miles, periodic glow plug inspections, and oil changes every 5,000 to 7,500 miles. Electric vehicles demand minimal maintenance, focusing mainly on battery health checks, tire rotations every 7,500 miles, and brake inspections due to regenerative braking reducing wear. Hybrid vehicles combine gasoline and electric maintenance protocols, including oil changes every 5,000 to 7,500 miles, battery system diagnostics, and regular brake system evaluations.
Which heat exchanger is more efficient?
Shell and tube heat exchangers are more efficient for high-pressure applications, while plate heat exchangers provide higher heat transfer efficiency due to their larger surface area per unit volume.
