Yield strength represents the stress at which a material begins to deform plastically, marking the transition from elastic to permanent deformation, while ultimate strength denotes the maximum stress a material can withstand before failure. Understanding the distinct roles of yield and ultimate strength is essential for material selection and structural design, ensuring safety and performance. Explore in-depth differences and applications of yield strength and ultimate strength for engineering excellence.
Main Difference
Yield strength defines the maximum stress a material can withstand without permanent deformation, serving as a critical design limit in structural engineering to ensure elasticity. Ultimate strength represents the highest stress a material can endure before failure or fracture, indicating the maximum load-bearing capacity. Yield strength is typically lower than ultimate strength, marking the transition from elastic to plastic behavior. Understanding both values is essential for selecting materials that balance durability and flexibility in applications.
Connection
Yield strength marks the stress at which a material begins to deform plastically, while ultimate strength represents the maximum stress a material can withstand before failure. The two properties are connected as yield strength indicates the onset of permanent deformation, and ultimate strength defines the peak load capacity beyond which damage occurs. Understanding both values is critical for designing materials that balance elasticity and durability in structural applications.

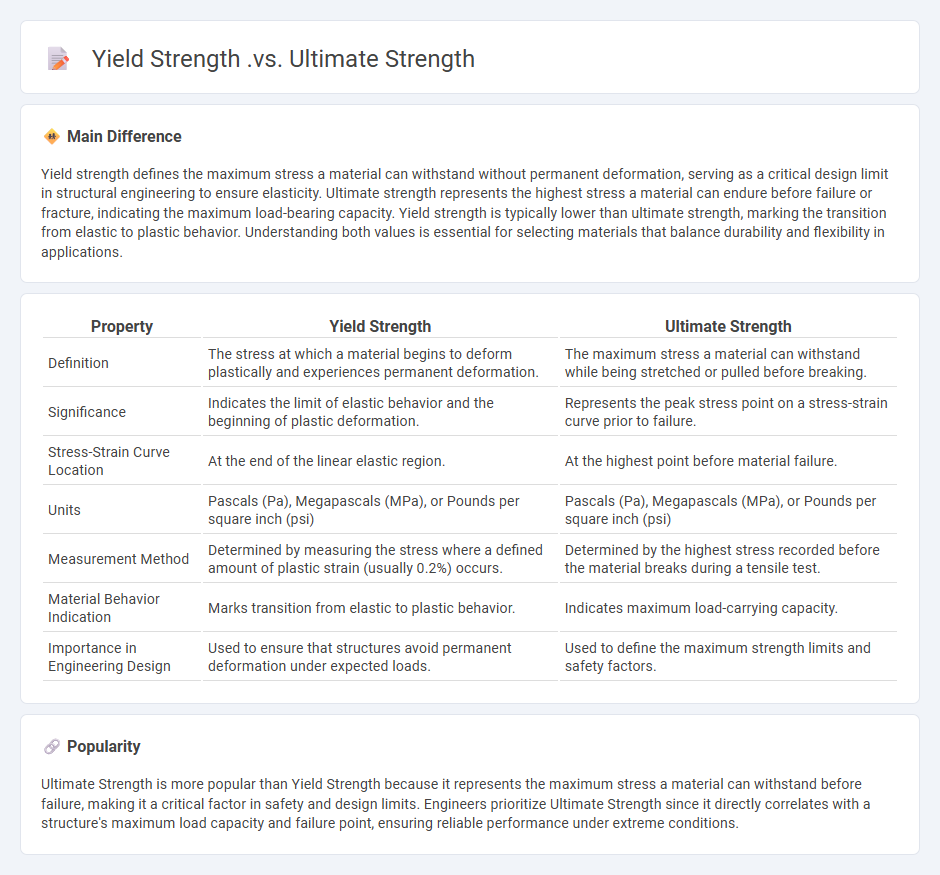

Comparison Table
| Property | Yield Strength | Ultimate Strength |
|---|---|---|
| Definition | The stress at which a material begins to deform plastically and experiences permanent deformation. | The maximum stress a material can withstand while being stretched or pulled before breaking. |
| Significance | Indicates the limit of elastic behavior and the beginning of plastic deformation. | Represents the peak stress point on a stress-strain curve prior to failure. |
| Stress-Strain Curve Location | At the end of the linear elastic region. | At the highest point before material failure. |
| Units | Pascals (Pa), Megapascals (MPa), or Pounds per square inch (psi) | Pascals (Pa), Megapascals (MPa), or Pounds per square inch (psi) |
| Measurement Method | Determined by measuring the stress where a defined amount of plastic strain (usually 0.2%) occurs. | Determined by the highest stress recorded before the material breaks during a tensile test. |
| Material Behavior Indication | Marks transition from elastic to plastic behavior. | Indicates maximum load-carrying capacity. |
| Importance in Engineering Design | Used to ensure that structures avoid permanent deformation under expected loads. | Used to define the maximum strength limits and safety factors. |
Yield Strength
Yield strength measures the stress at which a material begins to deform plastically, critical in engineering for ensuring structural integrity. It is commonly expressed in units of megapascals (MPa) or pounds per square inch (psi), with typical values for steel ranging from 250 MPa to over 1000 MPa depending on the alloy and heat treatment. Accurate determination of yield strength informs design limits, safety factors, and material selection in construction, automotive, aerospace, and manufacturing industries. Testing methods include tensile tests per ASTM E8/E8M standards, where the yield point marks the end of elastic deformation and the onset of permanent strain.
Ultimate Strength
Ultimate strength represents the maximum stress a material or structural element can withstand before failure occurs. It is a critical parameter in engineering design, measured in units such as megapascals (MPa) or pounds per square inch (psi). Metals like steel often exhibit ultimate strengths ranging from 400 MPa to over 2000 MPa, depending on their alloy composition and heat treatment. Understanding ultimate strength ensures safety and reliability in construction, automotive, aerospace, and mechanical engineering applications.
Elastic Deformation
Elastic deformation occurs when a material undergoes stress but returns to its original shape after the removal of the load, characterized by reversible strain within the elastic limit. This phenomenon follows Hooke's Law, where stress is directly proportional to strain, typically up to the material's yield point. Common engineering materials like steel and aluminum exhibit elastic deformation under normal working stresses, enabling structural components to absorb energy without permanent damage. Understanding elastic deformation is crucial for designing safe mechanical systems, ensuring materials operate efficiently within their elastic range to prevent failure.
Plastic Deformation
Plastic deformation refers to the permanent alteration of a material's shape under applied stress beyond its elastic limit, commonly observed in metals and alloys during manufacturing processes. It involves dislocation movements within the crystal lattice, leading to irreversible strain without fracturing. Understanding plastic deformation is crucial in engineering fields such as mechanical design, materials science, and structural analysis to predict material behavior under high loads. Advanced techniques like finite element analysis (FEA) are employed to simulate plastic deformation for optimizing component durability and performance.
Stress-Strain Curve
The stress-strain curve in engineering represents the relationship between the applied stress and the resulting strain in a material, crucial for understanding mechanical properties. Key points on the curve include the elastic region, where deformation is reversible, and the plastic region, indicating permanent deformation. The ultimate tensile strength marks the maximum stress the material can withstand before failure. Engineers use this data to design structures and select materials that ensure safety and performance under load.
Source and External Links
Yield Strength Vs Tensile Strength - Yield strength is the maximum stress before a material permanently deforms, while ultimate (tensile) strength is the maximum stress before the material actually breaks.
Tensile Strength vs. Yield Strength Understanding the Fundamentals - Yield strength indicates the stress at which a material starts to deform plastically without breaking, whereas ultimate (tensile) strength is the maximum stress the material can withstand before it fractures.
Difference between Yield Strength and Ultimate Strength - Yield strength is used in design for safety margins, marking the onset of permanent deformation, while ultimate strength is the highest stress a material can endure before failure.
FAQs
What is yield strength?
Yield strength is the maximum stress a material can withstand without permanent deformation.
What is ultimate strength?
Ultimate strength is the maximum stress a material can withstand before failure or fracture during tensile testing.
How does yield strength differ from ultimate strength?
Yield strength is the stress at which a material begins to deform plastically, while ultimate strength is the maximum stress a material can withstand before failure.
Why is yield strength important in material selection?
Yield strength is important in material selection because it determines the maximum stress a material can withstand without permanent deformation, ensuring structural integrity and safety under load.
When does a material reach its ultimate strength?
A material reaches its ultimate strength at the maximum stress it can withstand before failure or fracture.
How are yield strength and ultimate strength measured?
Yield strength is measured by determining the stress at which a material begins to deform plastically during a tensile test, identified by the 0.2% offset method on the stress-strain curve. Ultimate strength is measured as the maximum stress a material can withstand before necking or failure during the same tensile test.
Can materials have a high yield strength but low ultimate strength?
Materials with high yield strength typically also exhibit high ultimate strength; however, some alloys or engineered composites can have high yield strength combined with relatively low ultimate strength due to limited strain hardening or brittle fracture behavior.
