Heat exchangers and recuperators are critical components in thermal systems, each designed to transfer heat between fluids efficiently. Heat exchangers commonly exchange heat between two or more fluids without mixing, while recuperators specifically recover waste heat from exhaust gases to preheat incoming air or fluids, enhancing energy efficiency. Explore further to understand their unique applications and benefits in industrial processes.
Main Difference
A heat exchanger transfers thermal energy between two or more fluids without mixing them, typically used in various industrial processes for heating or cooling. A recuperator is a specific type of heat exchanger designed to recover waste heat from exhaust gases and improve energy efficiency in systems like gas turbines and furnaces. Recuperators usually feature a fixed matrix for continuous heat transfer, whereas other heat exchangers may use different designs such as shell-and-tube or plate types. The primary difference lies in the recuperator's focus on energy recovery and its specialized design, optimizing heat reuse in high-temperature applications.
Connection
Heat exchangers and recuperators are connected by channeling hot exhaust gases from the heat source directly into the recuperator to transfer thermal energy to the incoming cold fluid without mixing the two streams. This connection optimizes energy efficiency by preheating the cold fluid, reducing fuel consumption and operational costs in industrial processes. The design often involves a counterflow or crossflow arrangement to maximize heat transfer surface area and enhance overall system performance.
Comparison Table

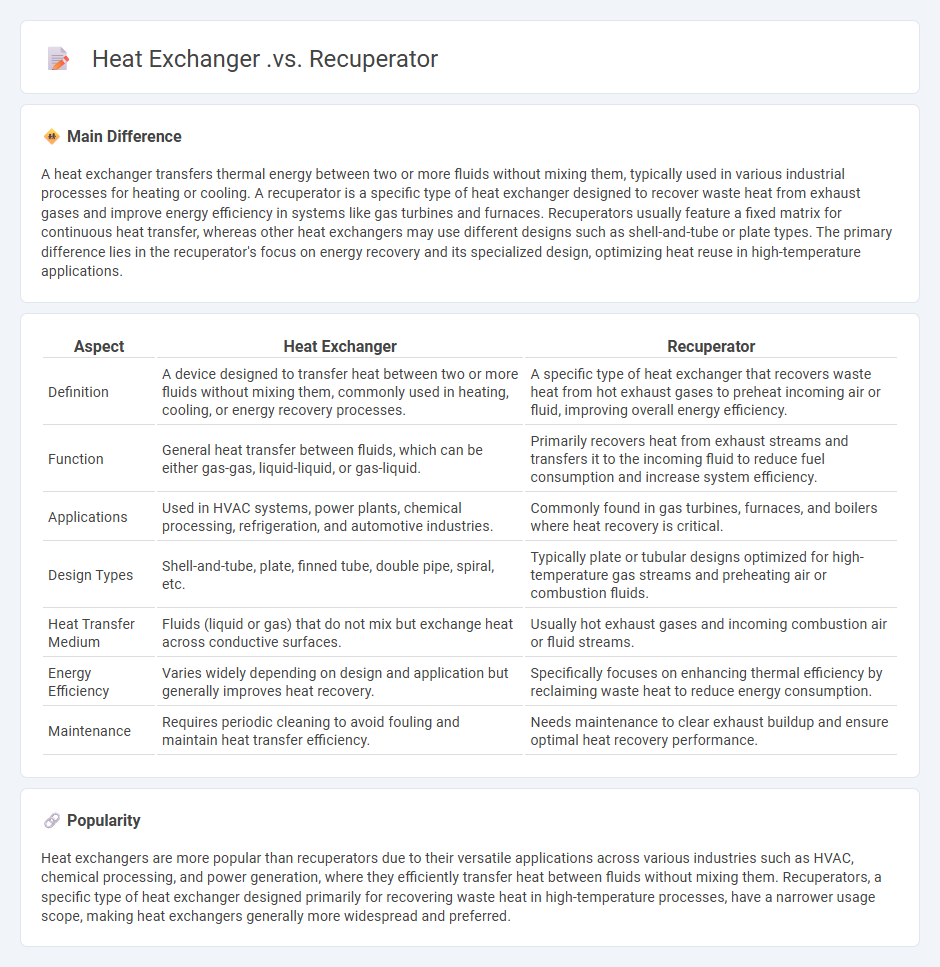

| Aspect | Heat Exchanger | Recuperator |
|---|---|---|
| Definition | A device designed to transfer heat between two or more fluids without mixing them, commonly used in heating, cooling, or energy recovery processes. | A specific type of heat exchanger that recovers waste heat from hot exhaust gases to preheat incoming air or fluid, improving overall energy efficiency. |
| Function | General heat transfer between fluids, which can be either gas-gas, liquid-liquid, or gas-liquid. | Primarily recovers heat from exhaust streams and transfers it to the incoming fluid to reduce fuel consumption and increase system efficiency. |
| Applications | Used in HVAC systems, power plants, chemical processing, refrigeration, and automotive industries. | Commonly found in gas turbines, furnaces, and boilers where heat recovery is critical. |
| Design Types | Shell-and-tube, plate, finned tube, double pipe, spiral, etc. | Typically plate or tubular designs optimized for high-temperature gas streams and preheating air or combustion fluids. |
| Heat Transfer Medium | Fluids (liquid or gas) that do not mix but exchange heat across conductive surfaces. | Usually hot exhaust gases and incoming combustion air or fluid streams. |
| Energy Efficiency | Varies widely depending on design and application but generally improves heat recovery. | Specifically focuses on enhancing thermal efficiency by reclaiming waste heat to reduce energy consumption. |
| Maintenance | Requires periodic cleaning to avoid fouling and maintain heat transfer efficiency. | Needs maintenance to clear exhaust buildup and ensure optimal heat recovery performance. |
Heat Transfer Mechanism
Heat transfer in engineering encompasses conduction, convection, and radiation, each facilitating energy movement through different physical processes. Conduction occurs via direct molecular collisions within solids, governed by Fourier's law, where materials like metals exhibit high thermal conductivity values--for example, copper at approximately 400 W/m*K. Convection involves fluid motion transferring heat, quantified by the Nusselt number, with applications in HVAC systems and heat exchangers optimizing temperature regulation. Radiation transfers thermal energy through electromagnetic waves without requiring a medium, with Stefan-Boltzmann law describing energy emission from surfaces based on temperature to the fourth power.
Direct vs Indirect Flow
Direct flow in engineering refers to fluid movement following a straightforward, linear path typically within pipes or channels designed for minimal resistance, enhancing efficiency and minimizing energy loss. Indirect flow involves fluid movement through complex or circuitous pathways, such as in heat exchangers or intricate piping systems where flow direction changes to optimize heat transfer or process requirements. Engineers analyze flow patterns using computational fluid dynamics (CFD) to predict pressure drops, velocity profiles, and turbulence, ensuring system performance meets design criteria. Choosing between direct and indirect flow affects system design, energy consumption, and operational costs in applications like HVAC, water treatment, and chemical processing.
Energy Recovery Efficiency
Energy recovery efficiency in engineering measures the proportion of energy that can be recaptured and reused from waste streams or byproducts. It is a critical metric in sustainable engineering practices, particularly in thermal systems, where recovering heat from exhaust gases or industrial processes can significantly reduce energy consumption. Technologies such as regenerative heat exchangers, pressure recovery turbines, and organic Rankine cycles are commonly employed to maximize energy recovery efficiency. Enhancing this efficiency contributes to lower operational costs and reduced environmental impact by minimizing the need for primary energy inputs.
Application Industries
Application industries in engineering encompass sectors such as automotive, aerospace, construction, manufacturing, and energy, where engineering principles drive innovation and efficiency. Automotive engineering focuses on vehicle design, safety systems, and fuel efficiency improvements, while aerospace engineering advances aircraft and spacecraft technology. Construction engineering integrates structural analysis and materials science to develop sustainable infrastructure. Manufacturing industries leverage automation, robotics, and process optimization to enhance production capabilities and quality control.
Design Complexity
Design complexity in engineering involves the intricacies of system components, their interactions, and the multifaceted requirements they must satisfy. Complex designs often require advanced modeling techniques, simulation tools, and iterative testing to ensure functionality and reliability. Managing design complexity improves project efficiency, reduces errors, and enhances product innovation by balancing trade-offs among cost, performance, and sustainability. Engineering disciplines such as aerospace, automotive, and software development heavily rely on optimizing design complexity to meet stringent standards and evolving technological demands.
Source and External Links
Understanding Heat Exchangers: Regenerator Vs. Recuperator - Recuperators directly transfer heat between two fluids without storage, while regenerators alternately store heat from a hot fluid in a matrix and release it to a cold fluid, using the same flow path for both fluids.
REGENERATIVE HEAT EXCHANGERS - Thermopedia - Recuperators transfer heat continuously through a partition wall between simultaneously and separately flowing fluids, whereas regenerators temporarily store heat in a solid packing through which hot and cold fluids periodically alternate.
Heat Exchangers: Regenerators and Recuperators - BrainKart - Recuperators are surface exchangers where hot and cold fluids flow continuously in separate passages, while regenerators use a single passage where hot and cold fluids alternately transfer heat through a rotating or stationary matrix.
FAQs
What is a heat exchanger?
A heat exchanger is a device designed to transfer heat between two or more fluids without mixing them, commonly used in heating, cooling, and refrigeration systems.
What is a recuperator?
A recuperator is a heat exchanger that recovers waste heat from exhaust gases to preheat incoming air, improving energy efficiency in industrial processes.
How do heat exchangers and recuperators differ?
Heat exchangers transfer heat between two fluids without mixing them, while recuperators are a type of heat exchanger that specifically recover waste heat from exhaust gases to improve energy efficiency.
What are the main components of a recuperator?
The main components of a recuperator are the heat exchanger core, inlet and outlet ducts, casing, seals, and a support structure.
What types of heat exchangers are commonly used?
Commonly used heat exchangers include shell and tube, plate, spiral, and air-cooled types.
What are the advantages of using a recuperator?
A recuperator improves energy efficiency by recovering waste heat, reduces fuel consumption, lowers operating costs, decreases emissions, and enhances system performance in heating and industrial processes.
Where are heat exchangers and recuperators commonly used?
Heat exchangers and recuperators are commonly used in HVAC systems, power plants, chemical processing, refrigeration, automotive engines, and industrial manufacturing for efficient heat transfer and energy recovery.
