Baseband modulation involves transmitting a signal without shifting its frequency range, typically used in wired communication systems like Ethernet. Passband modulation shifts the signal to a higher frequency band, enabling efficient transmission over wireless channels such as radio and cellular networks. Explore the differences and applications of baseband and passband modulation to enhance your understanding of communication systems.
Main Difference
Baseband modulation transmits signals without shifting the frequency, using the original frequency spectrum for data transmission, typically in wired communication systems. Passband modulation shifts the baseband signal to a higher frequency carrier wave, enabling wireless communication over radio frequencies. Baseband is ideal for short-range or direct data links, while passband supports long-distance transmission and multiplexing. The choice depends on channel characteristics, bandwidth availability, and application requirements.
Connection
Baseband modulation involves transmitting signals at their original frequency range, while passband modulation shifts these signals to higher frequencies for effective transmission over band-limited channels. The connection lies in passband modulation essentially encoding baseband signals onto carrier waves to enable long-distance wireless or wired communication. Understanding this relationship is crucial for designing efficient digital and analog communication systems, including amplitude, frequency, and phase modulation techniques.

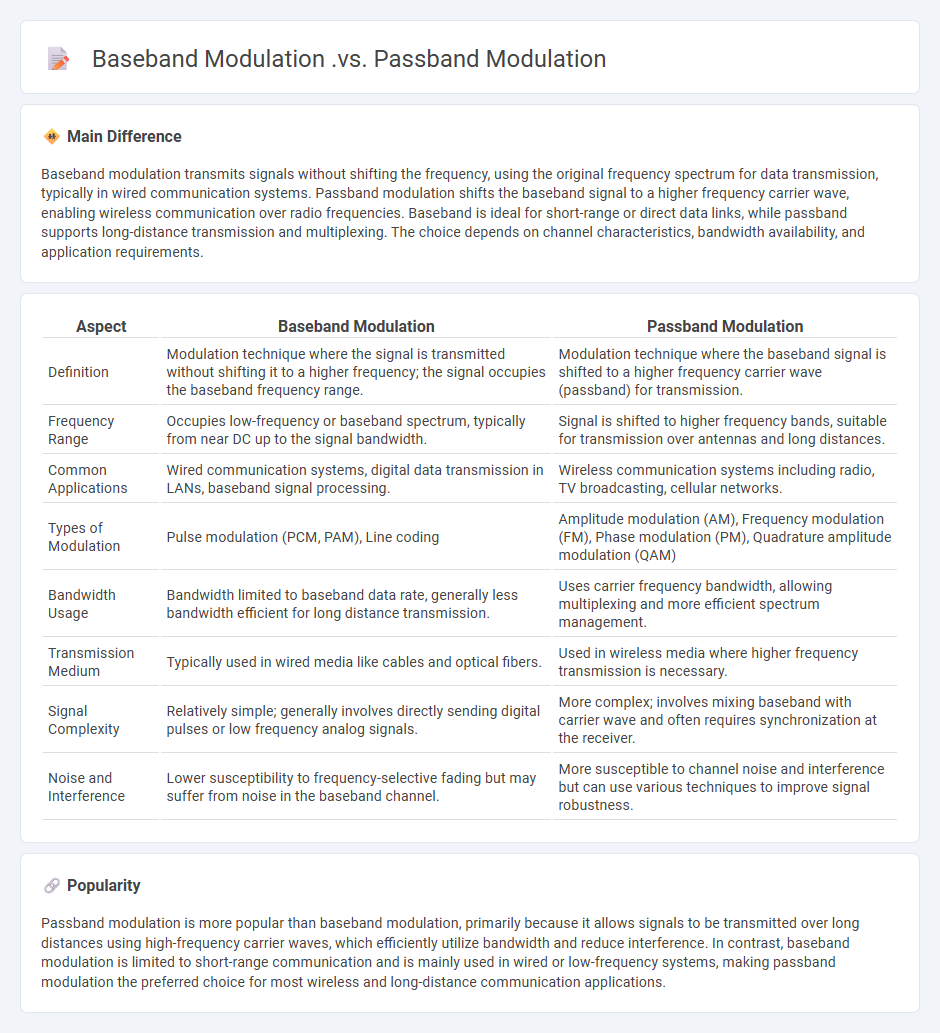

Comparison Table
| Aspect | Baseband Modulation | Passband Modulation |
|---|---|---|
| Definition | Modulation technique where the signal is transmitted without shifting it to a higher frequency; the signal occupies the baseband frequency range. | Modulation technique where the baseband signal is shifted to a higher frequency carrier wave (passband) for transmission. |
| Frequency Range | Occupies low-frequency or baseband spectrum, typically from near DC up to the signal bandwidth. | Signal is shifted to higher frequency bands, suitable for transmission over antennas and long distances. |
| Common Applications | Wired communication systems, digital data transmission in LANs, baseband signal processing. | Wireless communication systems including radio, TV broadcasting, cellular networks. |
| Types of Modulation | Pulse modulation (PCM, PAM), Line coding | Amplitude modulation (AM), Frequency modulation (FM), Phase modulation (PM), Quadrature amplitude modulation (QAM) |
| Bandwidth Usage | Bandwidth limited to baseband data rate, generally less bandwidth efficient for long distance transmission. | Uses carrier frequency bandwidth, allowing multiplexing and more efficient spectrum management. |
| Transmission Medium | Typically used in wired media like cables and optical fibers. | Used in wireless media where higher frequency transmission is necessary. |
| Signal Complexity | Relatively simple; generally involves directly sending digital pulses or low frequency analog signals. | More complex; involves mixing baseband with carrier wave and often requires synchronization at the receiver. |
| Noise and Interference | Lower susceptibility to frequency-selective fading but may suffer from noise in the baseband channel. | More susceptible to channel noise and interference but can use various techniques to improve signal robustness. |
Frequency Range
Frequency range in engineering refers to the spectrum of frequencies that a system, device, or signal can effectively operate within or respond to, typically measured in hertz (Hz). Common frequency ranges include audio frequencies (20 Hz to 20 kHz), radio frequencies (3 kHz to 300 GHz), and microwave frequencies (300 MHz to 300 GHz), each critical for different engineering applications such as telecommunications, signal processing, and radar systems. Engineers carefully select components and design circuits to optimize performance across the intended frequency range, ensuring signal integrity and minimizing losses. Understanding the frequency range is essential for developing efficient filters, amplifiers, and antennas tailored to specific operational environments.
Signal Transmission
Signal transmission in engineering involves the efficient transfer of data through various mediums, including wired cables like fiber optics and wireless technologies such as radio waves and microwaves. High-frequency signal modulation techniques, including amplitude modulation (AM) and frequency modulation (FM), enhance data integrity and minimize interference. Engineers optimize transmission systems by employing noise reduction strategies and amplifiers to preserve signal strength over long distances. Advanced protocols and error correction algorithms ensure reliable communication in complex networks such as telecommunications and control systems.
Bandwidth Utilization
Bandwidth utilization measures the efficiency of data transmission over communication channels in engineering systems, typically expressed as the ratio of actual throughput to the maximum possible bandwidth. High bandwidth utilization indicates optimal use of available network resources, minimizing idle capacity and improving overall system performance in applications such as telecommunications, computer networks, and signal processing. Techniques to enhance bandwidth utilization include data compression, multiplexing, and adaptive modulation, which balance throughput with quality of service requirements. Monitoring and optimizing bandwidth utilization is critical for network engineers to ensure reliable and cost-effective data transport.
Application Areas
Engineering encompasses diverse application areas including civil, mechanical, electrical, and software engineering. Civil engineering focuses on infrastructure development such as bridges, roads, and buildings. Mechanical engineering deals with the design and manufacturing of machines and thermal systems. Electrical engineering covers power generation, circuit design, and telecommunications, while software engineering involves developing applications and systems for various industries.
Noise Immunity
Noise immunity in engineering refers to a system's ability to resist electrical interference and maintain signal integrity under noisy conditions. This characteristic is crucial in communication systems, control circuits, and signal processing to ensure accurate data transmission and system reliability. Techniques such as shielding, filtering, and differential signaling significantly enhance noise immunity in electronic designs. High noise immunity reduces error rates and improves overall performance in industrial, automotive, and consumer electronics applications.
Source and External Links
Passband and Baseband Transmission and their Difference - This video discusses the fundamental differences between baseband and passband transmission, focusing on modulation and frequency shifting.
Understanding Baseband & Passband: A Comprehensive Guide - This guide provides insights into why passband modulation is crucial for reducing interference and increasing transmission range by shifting signals to higher frequencies.
Difference Between Baseband Signal and Bandpass Signal - This article highlights the key differences between unmodulated baseband signals and modulated bandpass signals, including frequency range, modulation, and transmission medium.
FAQs
What is baseband modulation?
Baseband modulation is the process of converting digital or analog signals into a simpler format suitable for direct transmission over a communication channel without shifting the frequency spectrum.
What is passband modulation?
Passband modulation is a technique that shifts a baseband signal to a higher frequency range (passband) for transmission by modulating a carrier wave, enabling efficient use of bandwidth and reducing interference.
What is the main difference between baseband and passband modulation?
Baseband modulation transmits signals at their original low frequency without carrier frequency shifting, while passband modulation shifts the signal to a higher carrier frequency for transmission.
Why is baseband modulation used?
Baseband modulation is used to transmit digital signals over a communication channel by converting binary data into signal waveforms suitable for transmission and reducing interference and bandwidth requirements.
Why do we need passband modulation?
Passband modulation allows transmission of baseband signals over band-limited channels by shifting the signal's frequency spectrum to a higher frequency band, enabling efficient use of the available bandwidth and reducing interference.
What are some examples of baseband signals?
Examples of baseband signals include audio signals, video signals, digital data streams, and sensor outputs used in communication and processing systems.
How is data transmitted using passband modulation?
Data is transmitted using passband modulation by converting the baseband digital signal into a band-limited signal through modulating a carrier wave's amplitude, frequency, or phase, enabling transmission over a specific frequency band.
