Litz wire features numerous thin, individually insulated strands woven together to reduce skin effect and proximity losses in high-frequency applications, enhancing signal integrity and efficiency. Solid wire consists of a single, solid conductor ideal for low-frequency or static applications due to its simplicity and durability. Explore more to understand the distinct advantages and best use cases for Litz wire versus solid wire.

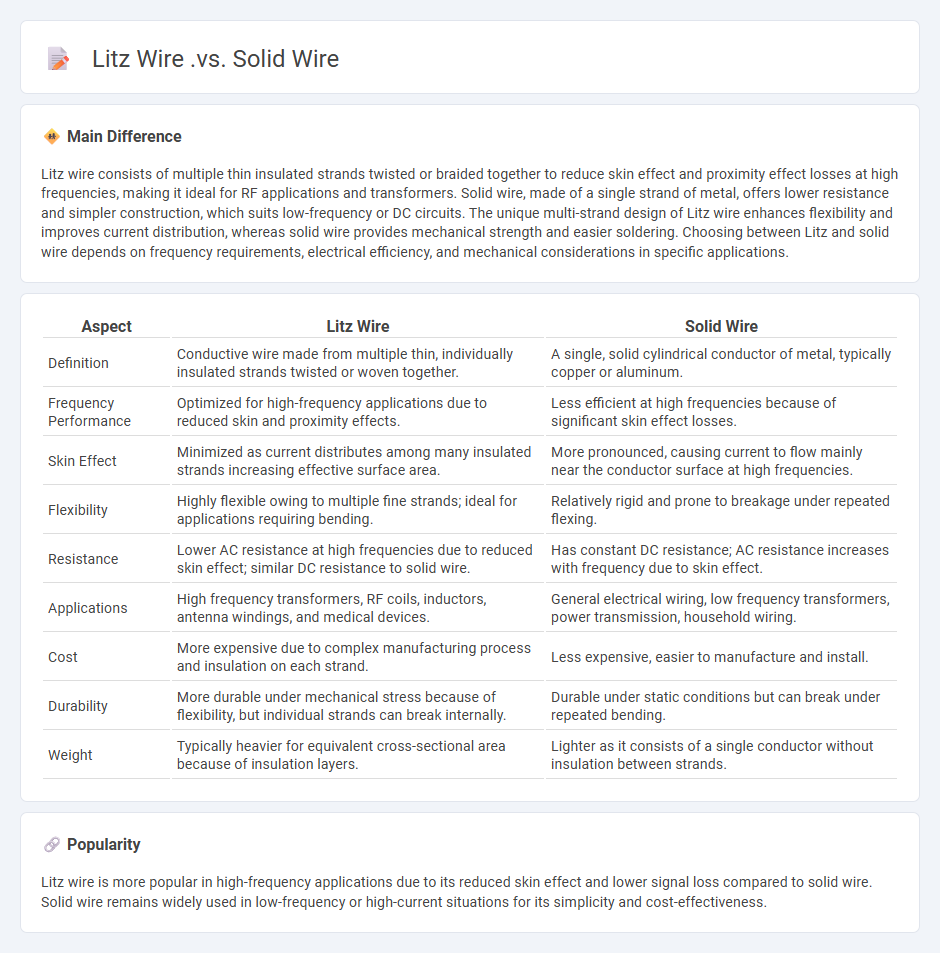

Main Difference
Litz wire consists of multiple thin insulated strands twisted or braided together to reduce skin effect and proximity effect losses at high frequencies, making it ideal for RF applications and transformers. Solid wire, made of a single strand of metal, offers lower resistance and simpler construction, which suits low-frequency or DC circuits. The unique multi-strand design of Litz wire enhances flexibility and improves current distribution, whereas solid wire provides mechanical strength and easier soldering. Choosing between Litz and solid wire depends on frequency requirements, electrical efficiency, and mechanical considerations in specific applications.
Connection
Litz wire and solid wire are connected by soldering, ensuring minimal resistance and optimal conductivity at the joint. Proper insulation stripping and careful heat application prevent damage to the delicate strands of Litz wire. Using heat shrink tubing or electrical tape provides secure insulation and mechanical stability for the connection.
Comparison Table
| Aspect | Litz Wire | Solid Wire |
|---|---|---|
| Definition | Conductive wire made from multiple thin, individually insulated strands twisted or woven together. | A single, solid cylindrical conductor of metal, typically copper or aluminum. |
| Frequency Performance | Optimized for high-frequency applications due to reduced skin and proximity effects. | Less efficient at high frequencies because of significant skin effect losses. |
| Skin Effect | Minimized as current distributes among many insulated strands increasing effective surface area. | More pronounced, causing current to flow mainly near the conductor surface at high frequencies. |
| Flexibility | Highly flexible owing to multiple fine strands; ideal for applications requiring bending. | Relatively rigid and prone to breakage under repeated flexing. |
| Resistance | Lower AC resistance at high frequencies due to reduced skin effect; similar DC resistance to solid wire. | Has constant DC resistance; AC resistance increases with frequency due to skin effect. |
| Applications | High frequency transformers, RF coils, inductors, antenna windings, and medical devices. | General electrical wiring, low frequency transformers, power transmission, household wiring. |
| Cost | More expensive due to complex manufacturing process and insulation on each strand. | Less expensive, easier to manufacture and install. |
| Durability | More durable under mechanical stress because of flexibility, but individual strands can break internally. | Durable under static conditions but can break under repeated bending. |
| Weight | Typically heavier for equivalent cross-sectional area because of insulation layers. | Lighter as it consists of a single conductor without insulation between strands. |
Skin Effect
The skin effect in electrical engineering refers to the tendency of alternating current (AC) to distribute itself within a conductor such that the current density is largest near the surface and decreases exponentially with greater depth into the conductor. This phenomenon increases the effective resistance of the conductor at higher frequencies, significantly impacting the performance of power transmission lines, transformers, and RF circuits. Materials with higher electrical conductivity and magnetic permeability, such as copper and iron, exhibit pronounced skin effects, especially at frequencies above 10 kHz. Engineers mitigate skin effect by using litz wire, hollow conductors, or applying surface plating techniques to optimize efficiency in high-frequency applications.
AC Resistance
AC resistance, also known as skin effect resistance, increases at higher frequencies due to the tendency of alternating current to concentrate near the conductor's surface. This phenomenon reduces the effective cross-sectional area through which current flows, resulting in higher resistance compared to DC resistance. Materials like copper and aluminum exhibit varying degrees of AC resistance based on frequency, conductor geometry, and surface roughness. Engineers must account for AC resistance in power transmission, RF circuits, and high-frequency transformers to minimize energy losses and maintain system efficiency.
Flexibility
Flexibility in engineering refers to the ability of materials and structures to deform elastically under applied forces without permanent deformation or failure. It is a critical property in designing components that must absorb energy, accommodate movement, or withstand variable loads, such as beams, joints, and flexible circuits. Engineering flexibility is quantified using parameters like Young's modulus, shear modulus, and strain limits to ensure safety and functionality. Innovations in flexible materials, such as polymers and composites, enhance performance in aerospace, automotive, and civil engineering applications.
High-Frequency Applications
High-frequency applications in engineering primarily involve the design and optimization of circuits operating at gigahertz (GHz) ranges, particularly in telecommunications and radar systems. Engineers utilize materials with low dielectric losses, such as PTFE and alumina, to maintain signal integrity at microwave and millimeter-wave frequencies. Advanced simulation tools like HFSS and CST Microwave Studio enable precise modeling of electromagnetic behavior in high-frequency components. Innovations in semiconductor fabrication, including GaN and SiGe technologies, enhance the performance and efficiency of high-frequency amplifiers and transceivers.
Power Loss Reduction
Power loss reduction in engineering focuses on minimizing energy dissipation in electrical systems through advanced materials and design optimization. Techniques such as using high-efficiency transformers, superconducting conductors, and low-resistance wiring help decrease resistive losses. Implementing smart grid technologies and real-time monitoring further enhances system performance by detecting and addressing inefficiencies promptly. These strategies collectively improve energy efficiency, reduce operational costs, and contribute to sustainable engineering practices.
Source and External Links
Conductor Selection Guide: Solid vs. Stranded vs. Litz Wire - Solid wire is most cost-effective for stationary, low-frequency (50/60Hz) or DC use, while Litz wire excels at high frequencies by minimizing skin and proximity effects, offering low AC resistance and high efficiency but at a higher cost.
Litz wire - Wikipedia - Litz wire consists of many thin, individually insulated strands twisted together to reduce AC losses like skin and proximity effects up to about 1 MHz, making it ideal for radio frequency and high-frequency electronic applications, though it causes more DC losses than solid wire.
Litz wire vs common link wire. - EEVblog - Litz wire's key advantage over solid or stranded wire is that its insulated strands eliminate side conduction between strands, greatly reducing skin effect and dramatically lowering AC resistance compared to solid or uninsulated stranded wire, which improves performance in high-frequency applications.
FAQs
What is Litz wire?
Litz wire is a type of wire composed of multiple thin insulated strands twisted or braided together to reduce skin effect and proximity effect losses in high-frequency electrical applications.
What is solid wire?
Solid wire is a single, uniform strand of metal conductor typically made of copper or aluminum, used in electrical wiring for its strength and reliable conductivity.
What is the difference between Litz wire and solid wire?
Litz wire consists of multiple thin insulated strands twisted or woven together to reduce skin effect and proximity effect losses in high-frequency applications, while solid wire is a single, thick conductor better suited for low-frequency or DC currents with lower resistance and simpler construction.
Why is Litz wire used in high-frequency applications?
Litz wire is used in high-frequency applications because its individually insulated strands reduce skin effect and proximity effect losses, enhancing conductivity and efficiency.
What are the advantages of Litz wire over solid wire?
Litz wire reduces skin effect and proximity effect losses at high frequencies, improves conductivity by increasing surface area, enhances flexibility for winding and bending, and minimizes AC resistance compared to solid wire.
What are the disadvantages of Litz wire compared to solid wire?
Litz wire has higher manufacturing cost, increased complexity, larger diameter, lower mechanical strength, and potential skin effect limitations at very high frequencies compared to solid wire.
Which wire is better for power transmission?
Copper wire is better for power transmission due to its high electrical conductivity, durability, and excellent thermal performance.
