Direct mapping caches assign each block of main memory to a specific cache line, ensuring simple and fast data retrieval with minimal hardware complexity. Associative mapping caches allow a block of memory to be loaded into any cache line, enabling more flexibility and reducing cache misses but requiring more complex searching mechanisms. Explore the nuances and performance trade-offs between direct mapping and associative mapping to optimize your system's caching strategy.
Main Difference
Direct mapping cache uses a fixed mapping technique where each block of main memory maps to exactly one cache line, ensuring fast but limited placement options. Associative mapping allows any block of main memory to be loaded into any cache line, increasing flexibility and cache hit rates at the cost of more complex hardware for search operations. Direct mapping offers faster access due to simple indexing but suffers from higher conflict misses, while associative mapping reduces conflict misses by checking multiple cache lines simultaneously. Cache performance and hardware complexity largely depend on the chosen mapping strategy, influencing overall system efficiency.
Connection
Direct mapping and associative mapping are two cache memory techniques that determine how data blocks from main memory are placed in cache. Direct mapping assigns each block to a specific cache line based on the block's address modulo the number of cache lines, offering simplicity but limited flexibility. Associative mapping allows any block to be stored in any cache line, enhancing flexibility and hit rates by enabling the cache to dynamically select the storage location based on content comparison.

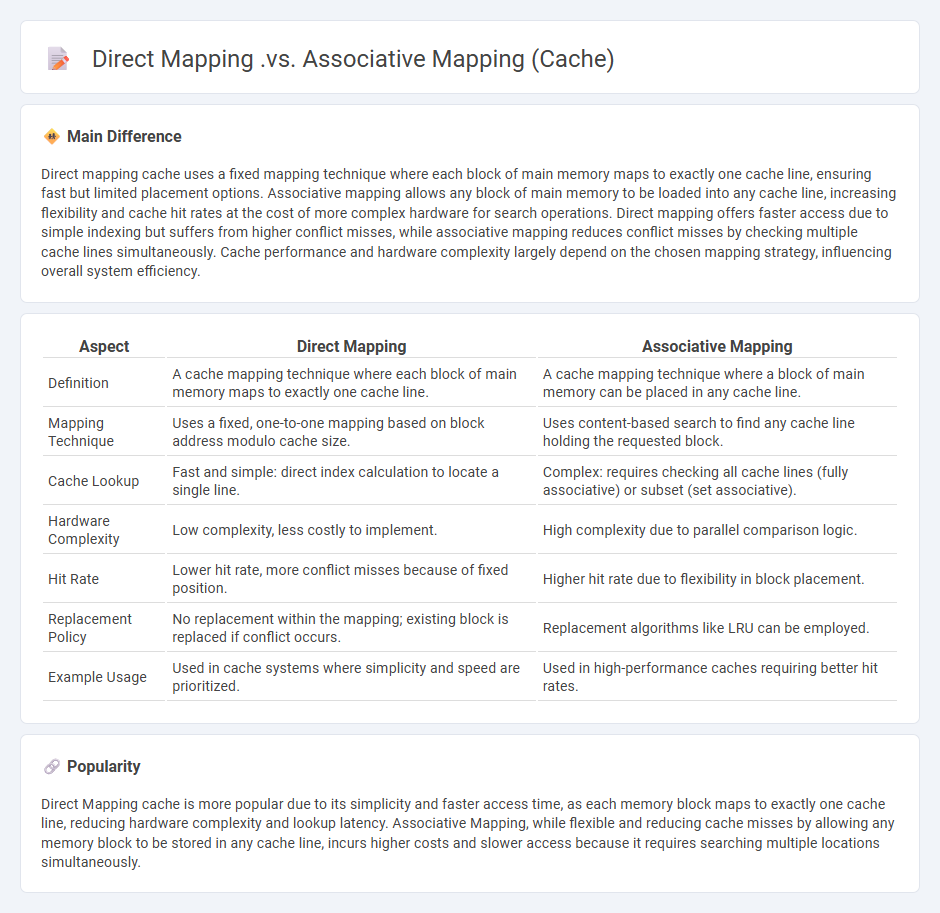

Comparison Table
| Aspect | Direct Mapping | Associative Mapping |
|---|---|---|
| Definition | A cache mapping technique where each block of main memory maps to exactly one cache line. | A cache mapping technique where a block of main memory can be placed in any cache line. |
| Mapping Technique | Uses a fixed, one-to-one mapping based on block address modulo cache size. | Uses content-based search to find any cache line holding the requested block. |
| Cache Lookup | Fast and simple: direct index calculation to locate a single line. | Complex: requires checking all cache lines (fully associative) or subset (set associative). |
| Hardware Complexity | Low complexity, less costly to implement. | High complexity due to parallel comparison logic. |
| Hit Rate | Lower hit rate, more conflict misses because of fixed position. | Higher hit rate due to flexibility in block placement. |
| Replacement Policy | No replacement within the mapping; existing block is replaced if conflict occurs. | Replacement algorithms like LRU can be employed. |
| Example Usage | Used in cache systems where simplicity and speed are prioritized. | Used in high-performance caches requiring better hit rates. |
Cache Line
A cache line is the smallest unit of data transferred between the CPU cache and main memory, typically consisting of 32 to 128 bytes. Modern processors use cache lines to improve memory access speed by storing contiguous blocks of memory, reducing latency and increasing efficiency. Cache lines are aligned in memory to optimize fetching and minimize cache misses, which occur when requested data is not found in the cache. Understanding cache line size and behavior is crucial for optimizing software performance and memory access patterns.
Tag Comparison
Tag comparison in computer science involves evaluating metadata labels or HTML elements to organize, retrieve, and manipulate data efficiently. In web development, tag comparison is critical for DOM parsing, where HTML tags like
Memory Address Mapping
Memory address mapping translates logical or virtual addresses to physical memory locations through mechanisms like paging and segmentation. It enables efficient memory management in computer systems by dividing memory into fixed-size pages or variable-sized segments. The Memory Management Unit (MMU) performs address translation, using page tables or segment tables stored in RAM. Modern operating systems rely on memory address mapping to support multitasking, memory protection, and virtual memory implementation.
Replacement Policy
The replacement policy in computer systems determines how data is managed in cache memory when new information needs to be loaded. Common algorithms include Least Recently Used (LRU), First-In-First-Out (FIFO), and Random Replacement, each optimizing cache performance in different scenarios. Efficient replacement policies minimize cache misses and improve overall system speed by selecting which data to evict based on usage patterns. Hardware implementations often incorporate adaptive policies to dynamically adjust strategies for diverse workloads.
Hit and Miss Rate
Hit rate in computer systems refers to the percentage of memory or cache accesses that are successfully found in the cache, thereby reducing access time and improving overall performance. Miss rate, conversely, indicates the frequency at which requested data is not located in cache, leading to additional latency as the system fetches data from slower main memory or storage. A high hit rate, often above 90% in well-optimized CPU caches, significantly enhances processing speed by minimizing costly memory fetch delays. Cache configuration factors such as size, associativity, and block size directly influence these rates, impacting system efficiency and throughput.
Source and External Links
Difference between Direct-mapping, Associative Mapping & Set-Associative Mapping - Direct mapping assigns each main memory block to exactly one cache line using a fixed formula, while associative mapping allows any block to be placed in any cache line, offering more flexibility and potentially fewer cache misses.
Cache placement policies - Wikipedia - In direct-mapped cache, each memory block maps to one cache line determined by the index bits; in associative mapping, the block can be stored in any cache location, requiring tag comparisons across all lines but avoiding forced replacements.
Cache - Computer Science Cornell - Direct mapped cache is a special case of set associative cache with one block per set, whereas associative cache can be seen as fully associative where any block fits in any line, trading off hardware simplicity for hit rate performance.
FAQs
What is cache mapping?
Cache mapping is the technique used to determine the location in cache memory where data from main memory is stored, typically classified into direct mapping, associative mapping, and set-associative mapping.
What is direct mapped cache?
Direct mapped cache is a cache memory structure where each block of main memory maps to exactly one cache line, enabling fast and simple data retrieval using a fixed indexing mechanism.
What is associative mapped cache?
Associative mapped cache is a type of cache memory organization where any block of main memory can be stored in any cache line, using a fully associative mapping technique.
How does direct mapping differ from associative mapping?
Direct mapping assigns each memory block to exactly one cache line using a fixed index, while associative mapping allows a memory block to be stored in any cache line, enabling flexible placement and reducing conflicts.
What are the advantages of direct mapping?
Direct mapping offers simple implementation, low hardware cost, fast cache access time, and easy index calculation, improving overall cache performance efficiency.
What are the benefits of associative mapping?
Associative mapping enhances cache performance by reducing cache miss rates, increases flexibility in block placement, and improves utilization of cache space compared to direct mapping.
Which mapping technique provides better cache performance?
Set-associative mapping provides better cache performance by reducing cache misses compared to direct mapping.
