Antenna arrays enhance signal quality and coverage by combining multiple antennas to direct and focus radio waves, offering greater gain and spatial diversity compared to single antennas. Single antennas are simpler and cost-effective but often face limitations in range, interference reduction, and beamforming capabilities. Explore the differences to determine the optimal solution for your wireless communication needs.
Main Difference
An antenna array consists of multiple antenna elements arranged in a specific geometric pattern, enabling beamforming and spatial signal processing, which significantly enhances directionality and gain compared to a single antenna. Single antennas radiate or receive electromagnetic waves omnidirectionally or with limited directivity, resulting in lower gain and less control over signal propagation. Antenna arrays improve signal-to-noise ratio and interference rejection by exploiting constructive and destructive interference, optimizing wireless communication performance. Operational frequency, element spacing, and array configuration are critical parameters influencing the array's radiation pattern and overall effectiveness.
Connection
Antenna arrays are connected by feeding multiple individual antennas with controlled phase and amplitude signals to achieve beamforming and signal enhancement. Each element in the array is linked through transmission lines or feed networks that synchronize the signal distribution for constructive interference. Single antennas, in contrast, connect directly to a transmitter or receiver without phase control, limiting their spatial signal directionality compared to antenna arrays.

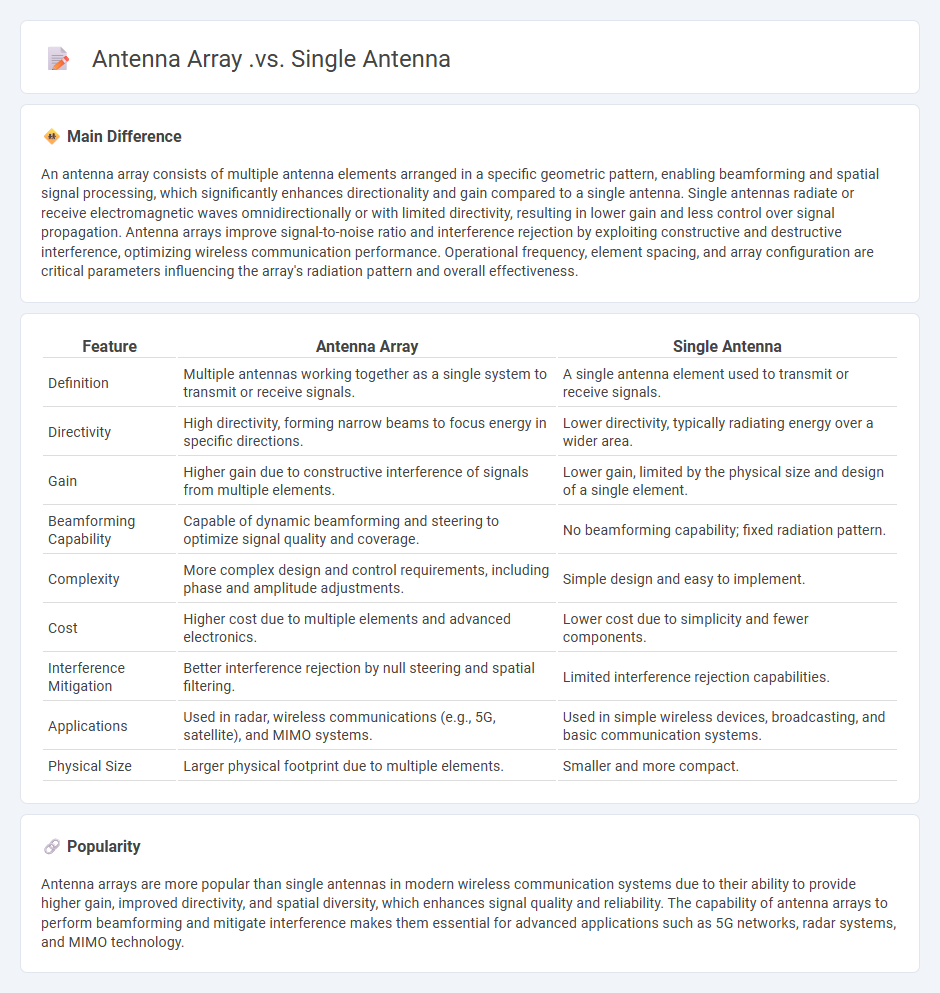

Comparison Table
| Feature | Antenna Array | Single Antenna |
|---|---|---|
| Definition | Multiple antennas working together as a single system to transmit or receive signals. | A single antenna element used to transmit or receive signals. |
| Directivity | High directivity, forming narrow beams to focus energy in specific directions. | Lower directivity, typically radiating energy over a wider area. |
| Gain | Higher gain due to constructive interference of signals from multiple elements. | Lower gain, limited by the physical size and design of a single element. |
| Beamforming Capability | Capable of dynamic beamforming and steering to optimize signal quality and coverage. | No beamforming capability; fixed radiation pattern. |
| Complexity | More complex design and control requirements, including phase and amplitude adjustments. | Simple design and easy to implement. |
| Cost | Higher cost due to multiple elements and advanced electronics. | Lower cost due to simplicity and fewer components. |
| Interference Mitigation | Better interference rejection by null steering and spatial filtering. | Limited interference rejection capabilities. |
| Applications | Used in radar, wireless communications (e.g., 5G, satellite), and MIMO systems. | Used in simple wireless devices, broadcasting, and basic communication systems. |
| Physical Size | Larger physical footprint due to multiple elements. | Smaller and more compact. |
Beamforming
Beamforming is a signal processing technique used in engineering to direct the transmission or reception of signals in an array of sensors, such as antennas or microphones, by controlling the phase and amplitude of each element. It enhances signal quality and spatial selectivity by reinforcing signals from desired directions while suppressing interference and noise from other directions. This method is crucial in applications like radar, wireless communications, sonar, and acoustic imaging, improving range, resolution, and overall system performance. Advanced beamforming algorithms incorporate adaptive filtering and machine learning to optimize signal detection in complex environments.
Spatial Diversity
Spatial diversity in engineering enhances wireless communication reliability by using multiple antennas separated by physical distance to minimize signal fading caused by multipath propagation. This technique improves signal quality and reduces error rates, crucial for applications such as cellular networks, satellite communications, and Wi-Fi systems. Spatial diversity exploits uncorrelated fading channels, leading to higher data throughput and increased network capacity. Implementation methods include Multiple Input Multiple Output (MIMO) and antenna diversity, both integral to 4G and 5G wireless technologies.
Directional Gain
Directional gain measures an antenna's ability to focus energy in a specific direction, enhancing signal strength compared to an isotropic radiator. It is quantified in decibels (dBi) and is critical for improving communication range and reducing interference in engineering applications. High directional gain antennas, such as parabolic dishes or Yagi-Uda arrays, are commonly used in radar systems, satellite communications, and wireless networks. Accurate calculation of directional gain involves integrating the radiation intensity over the solid angle and comparing it to uniform spherical radiation.
Interference Mitigation
Interference mitigation in engineering focuses on reducing unwanted signals that disrupt communication systems, ensuring data integrity and system reliability. Techniques such as adaptive filtering, spread spectrum, and beamforming are widely used to minimize electromagnetic interference in wireless networks. Advanced algorithms in signal processing enable real-time detection and suppression of interference, improving performance in crowded frequency environments. Effective interference mitigation is critical in applications ranging from telecommunications and radar systems to IoT devices and aerospace engineering.
Complexity and Cost
Engineering complexity increases with project scale, requiring advanced planning, specialized tools, and interdisciplinary collaboration to ensure successful outcomes. Higher complexity often leads to elevated costs due to the need for skilled labor, expensive materials, and extended timelines. Cost management strategies include risk assessment, resource optimization, and iterative design processes to control budget overruns. Efficient engineering practices balance technical challenges and financial constraints to deliver reliable, cost-effective solutions.
Source and External Links
What is the difference between array and antenna - Dolph Microwave - An antenna array consists of multiple antennas working together to enhance directional control and signal strength, while a single antenna has only one radiating element and provides simpler, less directional coverage; arrays are more complex and costly but allow better signal shaping and higher gain, whereas single antennas are cheaper and suited for general coverage needs.
Antenna Arrays - RF elements - An antenna array is a group of two or more identical antennas fed the same signal simultaneously to create a combined radiation pattern with higher gain and directional control, overcoming the limitations of single antennas which have wider beamwidth and fixed patterns.
Antenna array - Wikipedia - Antenna arrays enable higher gain and narrower beams compared to single antennas by appropriately phasing multiple elements, allowing for fixed or electronically steerable patterns, improved directivity, and advanced functions like spatial multiplexing, which single antennas cannot provide.
FAQs
What is an antenna array?
An antenna array is a configuration of multiple antennas working together to transmit or receive radio waves with enhanced directionality, gain, and signal quality.
What is a single antenna?
A single antenna is a device designed to transmit or receive electromagnetic waves using one radiating element.
How does an antenna array work?
An antenna array works by combining signals from multiple antennas, adjusting their relative phases and amplitudes to create constructive interference in desired directions and destructive interference elsewhere, enhancing signal strength and directionality.
What are the advantages of an antenna array?
Antenna arrays offer advantages such as increased directivity, improved signal gain, enhanced beamforming capabilities, reduced interference through spatial filtering, and the ability to steer beams electronically without moving the antenna structure.
What are the disadvantages of a single antenna?
A single antenna has limited spatial diversity, reduced signal reliability, lower data rates, increased susceptibility to multipath fading, and decreased coverage compared to multiple antenna systems.
How does beamforming differ in antenna arrays and single antennas?
Beamforming in antenna arrays uses multiple antennas to direct signal transmission or reception spatially by controlling phase and amplitude, enhancing gain and reducing interference; single antennas lack spatial signal control and cannot perform true beamforming.
When should you use an antenna array instead of a single antenna?
Use an antenna array instead of a single antenna when you need improved signal gain, directional beamforming, enhanced spatial resolution, or interference reduction in wireless communication systems.
