Bit Error Rate (BER) quantifies the percentage of bits received in error due to noise and distortions in a communication system, directly impacting data integrity and transmission quality. Signal-to-Noise Ratio (SNR) measures the strength of the desired signal relative to background noise, serving as a critical parameter in assessing system performance. Explore how optimizing BER and SNR enhances wireless communication reliability and efficiency.
Main Difference
Bit Error Rate (BER) quantifies the number of bit errors divided by the total transmitted bits, measuring the accuracy of data transmission. Signal-to-Noise Ratio (SNR) represents the power ratio between the desired signal and background noise, affecting the clarity of the received signal. Higher SNR values generally lead to lower BER, as stronger signals reduce the probability of error during data decoding. BER directly impacts communication reliability, while SNR is a key factor influencing the physical quality of the signal medium.
Connection
Bit Error Rate (BER) quantifies the number of bit errors in a transmitted data stream, directly influenced by the Signal-to-Noise Ratio (SNR), which measures the power of the desired signal relative to background noise. Higher SNR values typically result in lower BER, indicating improved communication link quality and data integrity. Modulation schemes like QPSK and OFDM rely on favorable SNR conditions to maintain minimal BER for efficient digital communication systems.

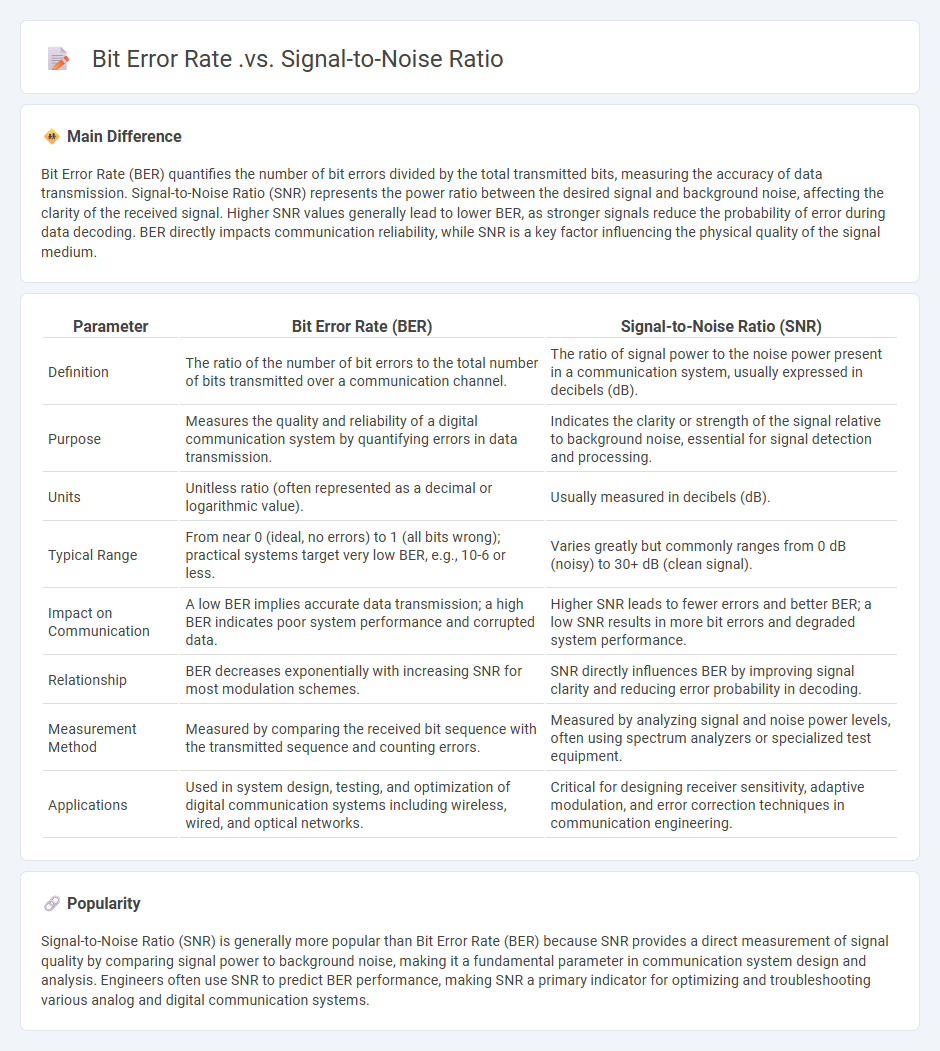

Comparison Table
| Parameter | Bit Error Rate (BER) | Signal-to-Noise Ratio (SNR) |
|---|---|---|
| Definition | The ratio of the number of bit errors to the total number of bits transmitted over a communication channel. | The ratio of signal power to the noise power present in a communication system, usually expressed in decibels (dB). |
| Purpose | Measures the quality and reliability of a digital communication system by quantifying errors in data transmission. | Indicates the clarity or strength of the signal relative to background noise, essential for signal detection and processing. |
| Units | Unitless ratio (often represented as a decimal or logarithmic value). | Usually measured in decibels (dB). |
| Typical Range | From near 0 (ideal, no errors) to 1 (all bits wrong); practical systems target very low BER, e.g., 10-6 or less. | Varies greatly but commonly ranges from 0 dB (noisy) to 30+ dB (clean signal). |
| Impact on Communication | A low BER implies accurate data transmission; a high BER indicates poor system performance and corrupted data. | Higher SNR leads to fewer errors and better BER; a low SNR results in more bit errors and degraded system performance. |
| Relationship | BER decreases exponentially with increasing SNR for most modulation schemes. | SNR directly influences BER by improving signal clarity and reducing error probability in decoding. |
| Measurement Method | Measured by comparing the received bit sequence with the transmitted sequence and counting errors. | Measured by analyzing signal and noise power levels, often using spectrum analyzers or specialized test equipment. |
| Applications | Used in system design, testing, and optimization of digital communication systems including wireless, wired, and optical networks. | Critical for designing receiver sensitivity, adaptive modulation, and error correction techniques in communication engineering. |
Bit Error Rate (BER)
Bit Error Rate (BER) quantifies the number of bit errors divided by the total transmitted bits in a communication system, serving as a critical performance metric for digital transmissions. BER values typically range from 10^-3 in noisy channels to 10^-12 or lower in high-quality fiber-optic links, reflecting signal integrity and noise interference. Accurate BER measurement involves testing with known data patterns and assessing errors after demodulation or decoding across systems such as wireless networks, satellite communications, and broadband internet. Optimizing BER enhances system reliability, data throughput, and error correction efficiency in engineering applications.
Signal-to-Noise Ratio (SNR)
Signal-to-Noise Ratio (SNR) measures the level of a desired signal relative to background noise, expressed typically in decibels (dB). Higher SNR values indicate clearer, more distinguishable signals in systems such as telecommunications, audio engineering, and radar technology. In digital communication, maintaining an SNR above 20 dB is crucial for error-free data transmission. Signal processing techniques like filtering and amplification are commonly used to enhance SNR in engineering applications.
Channel Capacity
Channel capacity defines the maximum data rate at which information can be reliably transmitted over a communication channel without error. It is fundamentally determined by the Shannon-Hartley theorem, which relates channel capacity (C) in bits per second (bps) to bandwidth (B) and signal-to-noise ratio (SNR) as C = B log2(1 + SNR). Engineers use channel capacity to optimize the design of communication systems such as fiber optics, wireless networks, and satellite links, enhancing data throughput and minimizing errors. Practical limitations include noise, interference, and hardware constraints that affect the achievable capacity in real-world applications.
Modulation Schemes
Modulation schemes are essential in engineering for transmitting information over various communication channels by altering signal properties such as amplitude, frequency, or phase. Common modulation techniques include Amplitude Modulation (AM), Frequency Modulation (FM), Phase Shift Keying (PSK), and Quadrature Amplitude Modulation (QAM), each offering unique trade-offs between bandwidth efficiency and noise resilience. Advanced modulation schemes like Orthogonal Frequency-Division Multiplexing (OFDM) are widely used in broadband wireless networks and 5G communications to improve spectral efficiency and minimize inter-symbol interference. Accurate implementation of modulation directly impacts the performance of systems in telecommunications, satellite links, and digital broadcasting.
Error Correction Techniques
Error correction techniques in engineering enhance data transmission reliability by detecting and rectifying errors in digital communication systems. Common methods include parity checks, Hamming codes, Reed-Solomon codes, and convolutional codes, each tailored for specific noise and interference conditions. These techniques are vital in applications ranging from wireless communications and satellite transmissions to data storage devices. Implementing robust error correction minimizes data loss, improves signal integrity, and optimizes overall system performance.
Source and External Links
Modelling the Bit Error Rate (BER) - This webpage discusses how Bit Error Rate (BER) is linked to Signal-to-Noise Ratio (SNR), emphasizing that a high SNR is required for a low BER.
Eb/N0 - This Wikipedia page explains the relationship between the energy per bit to noise power spectral density ratio (\( E_{b}/N_{0} \)) and the carrier-to-noise ratio, which is closely related to SNR.
Comparison between Bit Error Rate And Signal To Noise Ratio - Through simulations, this PDF explores the interaction between BER and SNR, highlighting improvements in SNR leading to minimized BER.
FAQs
What is bit error rate?
Bit error rate (BER) is the ratio of incorrectly received bits to the total transmitted bits in a digital communication system, measuring the quality and reliability of data transmission.
What is signal-to-noise ratio?
Signal-to-noise ratio (SNR) quantifies the level of a desired signal relative to the background noise, typically expressed in decibels (dB).
How are bit error rate and signal-to-noise ratio related?
Bit error rate (BER) decreases exponentially as signal-to-noise ratio (SNR) increases, showing an inverse relationship where higher SNR improves communication system reliability by reducing errors.
Why does bit error rate decrease with higher signal-to-noise ratio?
Bit error rate decreases with higher signal-to-noise ratio because stronger signal power relative to noise reduces the probability of incorrect bit detection in digital communication.
What factors affect the signal-to-noise ratio?
Signal-to-noise ratio (SNR) is affected by signal power, noise power, bandwidth, interference, hardware quality, and environmental conditions.
How is bit error rate measured in communication systems?
Bit error rate (BER) is measured by dividing the number of incorrectly received bits by the total number of transmitted bits over a communication channel.
Why is signal-to-noise ratio important for data transmission?
Signal-to-noise ratio (SNR) is important for data transmission because it directly affects the accuracy and reliability of the transmitted data by distinguishing the signal from background noise, reducing errors and improving overall communication quality.
