Piezoelectric actuators generate precise movement through the deformation of piezoelectric materials under electrical voltage, offering high force and rapid response suitable for nano-positioning applications. Electrostatic actuators rely on electrostatic forces between charged conductive plates, providing low power consumption and scalability for microelectromechanical systems (MEMS). Explore detailed comparisons to understand their performance, efficiency, and application domains.
Main Difference

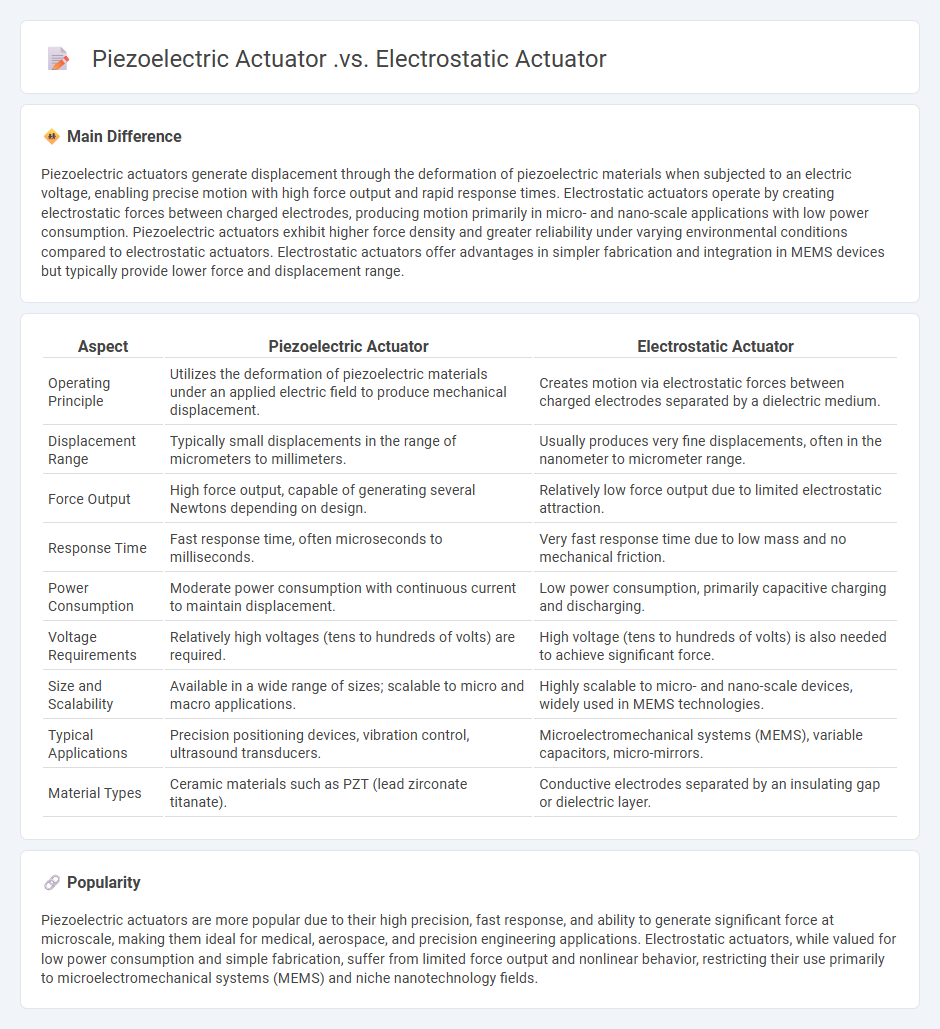

Piezoelectric actuators generate displacement through the deformation of piezoelectric materials when subjected to an electric voltage, enabling precise motion with high force output and rapid response times. Electrostatic actuators operate by creating electrostatic forces between charged electrodes, producing motion primarily in micro- and nano-scale applications with low power consumption. Piezoelectric actuators exhibit higher force density and greater reliability under varying environmental conditions compared to electrostatic actuators. Electrostatic actuators offer advantages in simpler fabrication and integration in MEMS devices but typically provide lower force and displacement range.
Connection
Piezoelectric actuators and electrostatic actuators can be connected in hybrid microelectromechanical systems (MEMS) to combine the high force output of piezoelectric materials with the rapid response and low power consumption of electrostatic actuation. Integration often involves layered fabrication techniques where piezoelectric thin films are deposited on microstructures that include electrostatic comb drives or parallel plate capacitors. This hybrid configuration enhances precision positioning and dynamic range in applications such as micro-robotics and adaptive optics.
Comparison Table
| Aspect | Piezoelectric Actuator | Electrostatic Actuator |
|---|---|---|
| Operating Principle | Utilizes the deformation of piezoelectric materials under an applied electric field to produce mechanical displacement. | Creates motion via electrostatic forces between charged electrodes separated by a dielectric medium. |
| Displacement Range | Typically small displacements in the range of micrometers to millimeters. | Usually produces very fine displacements, often in the nanometer to micrometer range. |
| Force Output | High force output, capable of generating several Newtons depending on design. | Relatively low force output due to limited electrostatic attraction. |
| Response Time | Fast response time, often microseconds to milliseconds. | Very fast response time due to low mass and no mechanical friction. |
| Power Consumption | Moderate power consumption with continuous current to maintain displacement. | Low power consumption, primarily capacitive charging and discharging. |
| Voltage Requirements | Relatively high voltages (tens to hundreds of volts) are required. | High voltage (tens to hundreds of volts) is also needed to achieve significant force. |
| Size and Scalability | Available in a wide range of sizes; scalable to micro and macro applications. | Highly scalable to micro- and nano-scale devices, widely used in MEMS technologies. |
| Typical Applications | Precision positioning devices, vibration control, ultrasound transducers. | Microelectromechanical systems (MEMS), variable capacitors, micro-mirrors. |
| Material Types | Ceramic materials such as PZT (lead zirconate titanate). | Conductive electrodes separated by an insulating gap or dielectric layer. |
