Dielectric breakdown occurs when an insulating material suddenly becomes conductive due to a high electric field, causing a rapid and destructive failure. Corona discharge is a partial electrical discharge that happens at high voltages around sharp edges or points, leading to ionization without complete insulation failure. Explore the key differences and applications of dielectric breakdown and corona discharge for better electrical system design.
Main Difference
Dielectric breakdown occurs when an insulating material experiences an electric field strength exceeding its critical threshold, causing a sudden loss of insulating properties and leading to a complete electrical conduction through the material. Corona discharge, in contrast, is a localized ionization of air surrounding a conductor at high voltage, producing a partial discharge without fully bridging the gap or compromising insulation integrity. Dielectric breakdown results in permanent damage to the insulation, while corona discharge typically causes gradual insulation degradation and emits a faint glow and ozone. The voltage level causing dielectric breakdown is significantly higher than the onset voltage for corona discharge.
Connection
Dielectric breakdown occurs when an insulating material's electric field exceeds its breakdown strength, causing it to become conductive and potentially leading to electrical failure. Corona discharge is a specific form of partial dielectric breakdown that happens around sharp edges or points in high-voltage systems, where the electric field ionizes the surrounding air without completely bridging the electrodes. Both phenomena demonstrate the limits of dielectric materials in high electric fields and influence the design and insulation requirements in power transmission and electrical equipment.

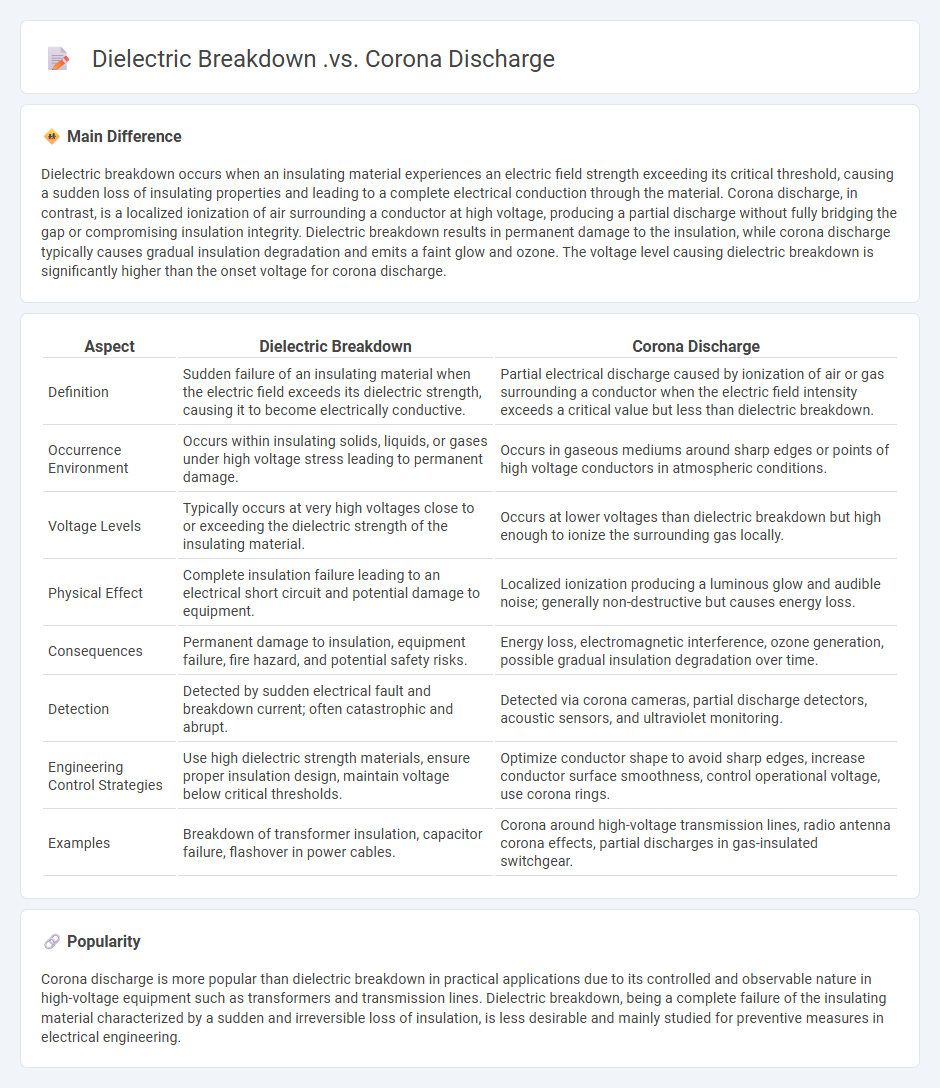

Comparison Table
| Aspect | Dielectric Breakdown | Corona Discharge |
|---|---|---|
| Definition | Sudden failure of an insulating material when the electric field exceeds its dielectric strength, causing it to become electrically conductive. | Partial electrical discharge caused by ionization of air or gas surrounding a conductor when the electric field intensity exceeds a critical value but less than dielectric breakdown. |
| Occurrence Environment | Occurs within insulating solids, liquids, or gases under high voltage stress leading to permanent damage. | Occurs in gaseous mediums around sharp edges or points of high voltage conductors in atmospheric conditions. |
| Voltage Levels | Typically occurs at very high voltages close to or exceeding the dielectric strength of the insulating material. | Occurs at lower voltages than dielectric breakdown but high enough to ionize the surrounding gas locally. |
| Physical Effect | Complete insulation failure leading to an electrical short circuit and potential damage to equipment. | Localized ionization producing a luminous glow and audible noise; generally non-destructive but causes energy loss. |
| Consequences | Permanent damage to insulation, equipment failure, fire hazard, and potential safety risks. | Energy loss, electromagnetic interference, ozone generation, possible gradual insulation degradation over time. |
| Detection | Detected by sudden electrical fault and breakdown current; often catastrophic and abrupt. | Detected via corona cameras, partial discharge detectors, acoustic sensors, and ultraviolet monitoring. |
| Engineering Control Strategies | Use high dielectric strength materials, ensure proper insulation design, maintain voltage below critical thresholds. | Optimize conductor shape to avoid sharp edges, increase conductor surface smoothness, control operational voltage, use corona rings. |
| Examples | Breakdown of transformer insulation, capacitor failure, flashover in power cables. | Corona around high-voltage transmission lines, radio antenna corona effects, partial discharges in gas-insulated switchgear. |
Electric Field Strength
Electric field strength measures the force exerted per unit charge at a specific point in space, expressed in volts per meter (V/m). It plays a critical role in electrical engineering for designing insulation systems, ensuring safety standards, and predicting electromagnetic interference. Engineers calculate electric field strength using Coulomb's law and consider factors like dielectric properties and conductor geometry to optimize device performance. Accurate assessment impacts the efficiency of power transmission lines, capacitors, and semiconductor devices.
Ionization Threshold
Ionization threshold in engineering refers to the minimum energy required to remove an electron from an atom or molecule, creating an ion. This parameter is critical in fields such as semiconductor manufacturing, plasma engineering, and radiation detection, where precise control of ionization processes affects device performance. For example, in plasma etching, controlling ionization thresholds ensures selective material removal without damaging underlying substrates. Understanding ionization thresholds also aids in designing sensors and materials that operate reliably under high-energy or radiation-rich environments.
Insulation Failure
Insulation failure occurs when the dielectric material within electrical systems loses its ability to resist electric current, leading to short circuits or equipment damage. Common causes include thermal degradation, moisture ingress, mechanical stress, and aging, which can reduce the insulation resistance below safe operating levels. Monitoring techniques such as partial discharge measurements, insulation resistance testing, and thermal imaging help detect early signs of deterioration. Preventive maintenance and the use of high-quality insulating materials like cross-linked polyethylene (XLPE) improve system reliability and lifespan.
Partial Discharge
Partial discharge (PD) in engineering refers to localized electrical discharges that only partially bridge the insulation between conductors, often occurring in high-voltage equipment such as transformers, switchgear, and cables. PD is a critical indicator of insulation degradation, which can lead to catastrophic equipment failure if left undetected. Techniques like ultrasonic detection, electrical pulse measurement, and optical sensors are commonly used to monitor and diagnose PD activity in real-time. Understanding PD phenomena helps improve asset reliability and extend the service life of electrical infrastructure.
Power System Reliability
Power system reliability is crucial for ensuring uninterrupted electricity supply and minimizing outages in electrical grids. It involves the assessment of generation adequacy, transmission system security, and distribution network resilience to withstand faults and extreme weather conditions. Techniques such as probabilistic risk assessment, load forecasting, and contingency analysis optimize system performance and prevent blackouts. Enhancing reliability supports economic growth by reducing downtime costs and increasing consumer trust in energy providers.
Source and External Links
Corona discharge - Wikipedia - Corona discharge is a localized electrical discharge caused by ionization of the air around a conductor at high voltage, occurring when the electric field exceeds air's dielectric strength but without complete insulation failure, seen as a glow and causing continuous leakage current.
Dielectric Breakdown and the Corona Effect - Dielectric breakdown is the complete failure of an insulating material under a high enough electric field, resulting in an arc or conductive path forming through the insulator, unlike corona discharge which is a partial discharge without total breakdown.
Difference between Corona Discharge and Dielectric Breakdown? - Corona discharge occurs under high electric field but below the threshold of full electrical breakdown, resulting in weak ionization and localized discharge, whereas dielectric breakdown is the catastrophic failure of insulation leading to a full electric arc.
FAQs
What are dielectrics?
Dielectrics are insulating materials that do not conduct electricity but can be polarized by an electric field, storing electrical energy.
What is dielectric breakdown?
Dielectric breakdown is the process where an insulating material becomes electrically conductive due to a high voltage exceeding its dielectric strength.
What is corona discharge?
Corona discharge is an electrical discharge caused by the ionization of a fluid surrounding a conductor carrying high voltage, resulting in a faint glow and hissing noise.
How do dielectric breakdown and corona discharge differ?
Dielectric breakdown is the complete failure of an insulating material when the electric field exceeds its breakdown strength, causing a sudden surge of current; corona discharge is a partial, localized ionization of air near sharp conductors under high voltage, producing a continuous, visible glow without total insulation failure.
What causes dielectric breakdown?
Dielectric breakdown is caused by the application of an electric field exceeding the material's dielectric strength, leading to a sudden drop in insulation resistance and allowing current to flow through the dielectric.
What causes corona discharge?
Corona discharge is caused by the ionization of air surrounding a conductor when the electric field intensity exceeds the dielectric breakdown strength of the air.
What are the effects of dielectric breakdown and corona discharge?
Dielectric breakdown causes permanent insulation damage and electrical failure, while corona discharge leads to gradual insulation degradation, power loss, electromagnetic interference, and ozone generation.
