Fused Deposition Modeling (FDM) utilizes thermoplastic filaments to build objects layer by layer through extrusion, offering cost-effective and durable prototypes suited for functional parts. Stereolithography (SLA) employs a laser to cure liquid resin into highly detailed and smooth components, ideal for intricate designs and fine surface finishes. Explore the detailed comparison of FDM and SLA to determine the best 3D printing technology for your specific application needs.
Main Difference
FDM (Fused Deposition Modeling) uses thermoplastic filament heated and extruded layer by layer to build parts, offering cost-effective and durable prototyping. SLA (Stereolithography) employs a laser to cure liquid resin into solid layers, achieving higher resolution and smoother surface finishes than FDM. FDM printers are widely accessible and suited for functional prototypes, while SLA excels in detailed models and intricate geometries. Material choices in FDM are typically ABS or PLA, whereas SLA relies on photopolymer resins with varying mechanical properties.
Connection
FDM (Fused Deposition Modeling) and SLA (Stereolithography) are both prominent 3D printing technologies used for additive manufacturing, each utilizing different materials and processes to build objects layer by layer. FDM operates by extruding thermoplastic filaments through a heated nozzle to create parts, while SLA employs a laser to cure liquid photopolymer resin selectively. Both methods enable rapid prototyping and complex geometries, contributing to advancements in fields such as automotive, aerospace, and healthcare.

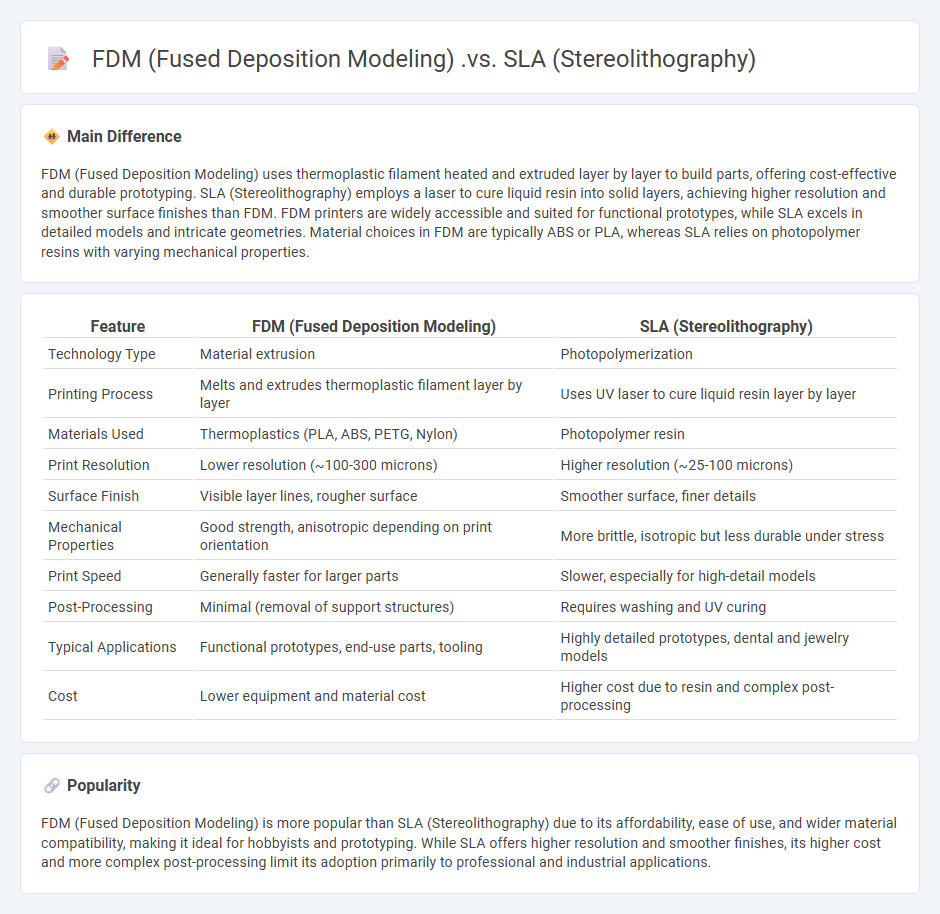

Comparison Table
| Feature | FDM (Fused Deposition Modeling) | SLA (Stereolithography) |
|---|---|---|
| Technology Type | Material extrusion | Photopolymerization |
| Printing Process | Melts and extrudes thermoplastic filament layer by layer | Uses UV laser to cure liquid resin layer by layer |
| Materials Used | Thermoplastics (PLA, ABS, PETG, Nylon) | Photopolymer resin |
| Print Resolution | Lower resolution (~100-300 microns) | Higher resolution (~25-100 microns) |
| Surface Finish | Visible layer lines, rougher surface | Smoother surface, finer details |
| Mechanical Properties | Good strength, anisotropic depending on print orientation | More brittle, isotropic but less durable under stress |
| Print Speed | Generally faster for larger parts | Slower, especially for high-detail models |
| Post-Processing | Minimal (removal of support structures) | Requires washing and UV curing |
| Typical Applications | Functional prototypes, end-use parts, tooling | Highly detailed prototypes, dental and jewelry models |
| Cost | Lower equipment and material cost | Higher cost due to resin and complex post-processing |
Printing Resolution
Printing resolution in engineering is measured in dots per inch (DPI), indicating the number of individual dots a printer can produce within a linear inch. High DPI values, such as 1200x1200 DPI, enable detailed and precise print outputs essential for technical drawings and CAD models. Advanced engineering printers utilize technologies like laser or inkjet to achieve resolutions that support clear visualization of complex schematics. Accurate printing resolution ensures that fine lines, dimensions, and annotations in engineering documents remain sharp and legible.
Material Compatibility
Material compatibility in engineering is critical to prevent corrosion, wear, and mechanical failure when different materials interact. Engineers analyze chemical properties, thermal expansion coefficients, and mechanical strengths to ensure structural integrity in assemblies. Common assessments include galvanic corrosion potential between metals and compatibility of polymers with solvents or lubricants. Selecting materials that maintain performance under operational environments extends lifespan and reduces maintenance costs in engineering applications.
Surface Finish
Surface finish in engineering refers to the texture and smoothness of a material's surface, typically measured by parameters such as Ra (roughness average) and Rz (mean peak-to-valley height). It significantly impacts the performance, wear resistance, and fatigue strength of mechanical components. Advanced surface finishing techniques include grinding, honing, polishing, and superfinishing, which improve dimensional accuracy and reduce friction. Precise control of surface finish is critical in industries like aerospace, automotive, and medical device manufacturing to ensure reliability and functionality.
Build Speed
Build speed in engineering significantly impacts project timelines and overall productivity, with efficient workflows reducing construction phases by up to 30%. Advanced techniques such as modular construction and prefabrication streamline assembly processes, leading to faster delivery without compromising quality. The integration of Building Information Modeling (BIM) enhances coordination among teams, minimizing delays and errors. Prioritizing build speed fosters cost savings and accelerates time-to-market for engineering projects.
Mechanical Properties
Mechanical properties of engineering materials define their behavior under various forces and conditions, including tensile strength, hardness, elasticity, and ductility. These properties are critical for applications in structures, automotive, aerospace, and manufacturing industries. High tensile strength materials like steel alloys enable load-bearing construction, while elasticity impacts shock absorption in components. Understanding fatigue resistance guides the design of durable machinery and infrastructure.
Source and External Links
SLA vs SLS vs FDM: comprehensive 3D printing comparison - FDM uses melted thermoplastic filament and is fast and cost-effective, while SLA uses UV-cured resin to achieve high detail and a smooth finish, but is more expensive with narrower material options.
FDM vs SLA Printing: Comparing 3D Printing Technologies - FDM is affordable and user-friendly, suitable for functional parts, whereas SLA excels in fine detail and smooth surfaces, making it ideal for intricate models and professional applications.
FDM vs. SLA 3D Printing: What Are the Differences? - FDM offers lower resolution and mechanical durability with simple operation, while SLA delivers higher resolution and smoother finishes but presents a steeper learning curve and less durable materials.
FAQs
What is Fused Deposition Modeling?
Fused Deposition Modeling (FDM) is an additive manufacturing technology that creates 3D objects by extruding thermoplastic filament layer by layer through a heated nozzle.
What is Stereolithography?
Stereolithography (SLA) is an additive manufacturing process that uses a UV laser to cure and solidify liquid photopolymer resin, creating highly detailed 3D printed parts layer by layer.
How does FDM work compared to SLA?
FDM (Fused Deposition Modeling) works by extruding melted thermoplastic filament layer by layer, while SLA (Stereolithography) uses a laser to cure liquid resin into solid layers, resulting in higher resolution and smoother surface finishes with SLA compared to the mechanical layering and potential stringing in FDM.
What materials are used in FDM and SLA?
FDM uses thermoplastic filaments like PLA, ABS, PETG, and TPU, while SLA uses photopolymer resins such as standard, tough, flexible, and castable resins.
Which technology produces higher resolution prints?
Laser printing technology produces higher resolution prints compared to inkjet printing.
What are the common applications for FDM and SLA?
FDM is commonly used for rapid prototyping, functional parts, and low-cost manufacturing, while SLA is preferred for high-detail prototypes, jewelry models, dental molds, and precision engineering parts.
What are the advantages and disadvantages of FDM and SLA?
FDM advantages: low cost, wide material availability, easy post-processing; disadvantages: lower resolution, visible layer lines, slower for fine details. SLA advantages: high resolution, smooth surface finish, precise detail; disadvantages: higher cost, limited material options, requires post-curing.
