Continuous Stirred-Tank Reactors (CSTR) and Plug Flow Reactors (PFR) are pivotal in chemical engineering for optimizing reactor design and process efficiency. CSTRs maintain uniform composition through continuous mixing, ideal for homogeneous reactions, while PFRs offer gradient concentration profiles suited for reactions benefiting from plug flow conditions. Explore detailed comparisons of CSTR vs PFR to optimize reactor selection for specific industrial applications.
Main Difference
CSTR (Continuous Stirred-Tank Reactor) operates with uniform composition and temperature throughout the reactor due to continuous stirring, resulting in a well-mixed environment. PFR (Plug Flow Reactor) exhibits concentration and temperature gradients along the reactor length, allowing reactants to flow in a plug-like manner with minimal back-mixing. Reaction rates in CSTR are typically lower because of the diluted concentration of reactants, while PFR achieves higher conversion per unit volume under similar conditions. Design equations for CSTR use average concentrations, whereas PFR calculations rely on differential changes along the reactor's axial coordinate.
Connection
CSTR and PFR are often connected in series to optimize chemical reaction conversion by utilizing the advantages of both reactor types. The CSTR provides thorough mixing and uniform composition, which is ideal for reactions requiring consistent temperature and concentration, while the PFR offers a plug flow pattern that enhances conversion for reactions dependent on concentration gradients. Combining CSTR and PFR in a hybrid system improves overall reactor performance, increases yield, and supports sequential reaction steps under varying operational conditions.
Comparison Table

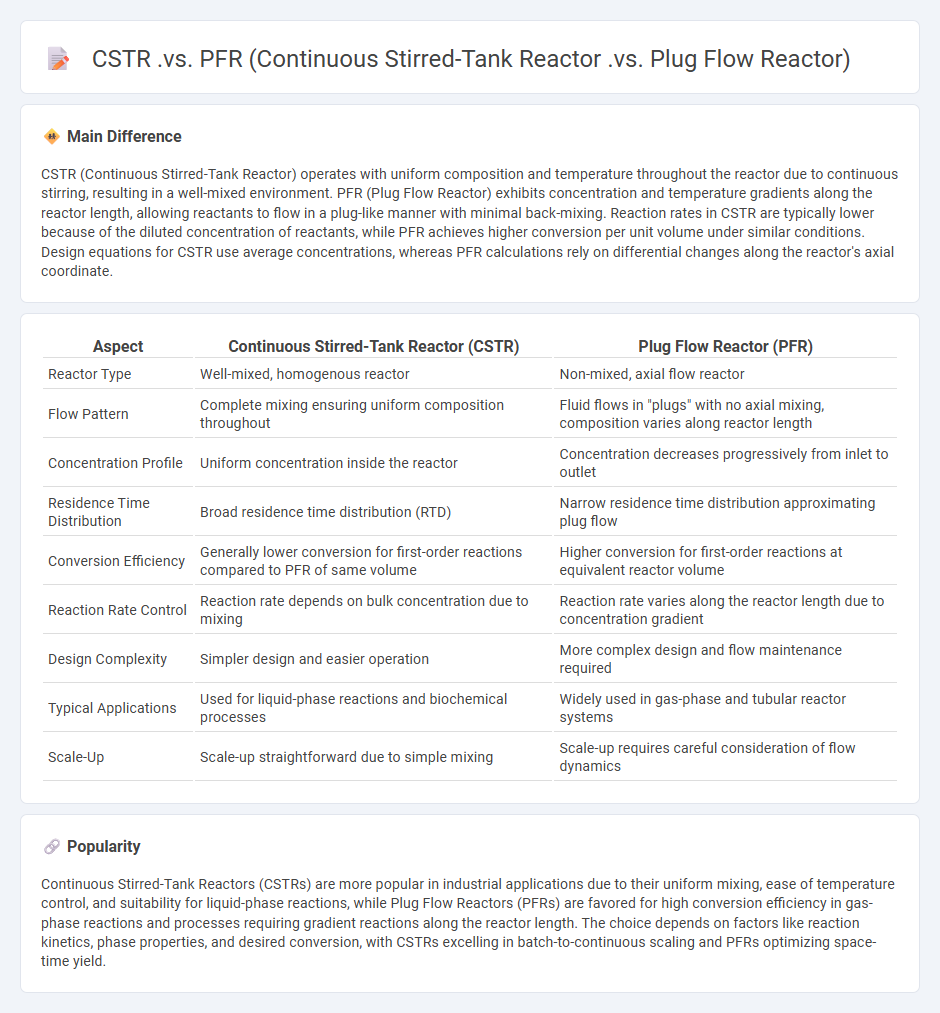

| Aspect | Continuous Stirred-Tank Reactor (CSTR) | Plug Flow Reactor (PFR) |
|---|---|---|
| Reactor Type | Well-mixed, homogenous reactor | Non-mixed, axial flow reactor |
| Flow Pattern | Complete mixing ensuring uniform composition throughout | Fluid flows in "plugs" with no axial mixing, composition varies along reactor length |
| Concentration Profile | Uniform concentration inside the reactor | Concentration decreases progressively from inlet to outlet |
| Residence Time Distribution | Broad residence time distribution (RTD) | Narrow residence time distribution approximating plug flow |
| Conversion Efficiency | Generally lower conversion for first-order reactions compared to PFR of same volume | Higher conversion for first-order reactions at equivalent reactor volume |
| Reaction Rate Control | Reaction rate depends on bulk concentration due to mixing | Reaction rate varies along the reactor length due to concentration gradient |
| Design Complexity | Simpler design and easier operation | More complex design and flow maintenance required |
| Typical Applications | Used for liquid-phase reactions and biochemical processes | Widely used in gas-phase and tubular reactor systems |
| Scale-Up | Scale-up straightforward due to simple mixing | Scale-up requires careful consideration of flow dynamics |
Mixing Uniformity
Mixing uniformity in engineering ensures consistent distribution of components within a mixture, critical for processes in chemical, pharmaceutical, and food industries. Precise control of mixing parameters such as impeller speed, mixer design, and residence time directly impacts product quality and process efficiency. Advanced computational fluid dynamics (CFD) models are frequently employed to predict and optimize mixing performance. Uniform mixing reduces variability, enhances reaction rates, and prevents segregation or agglomeration in materials.
Residence Time Distribution
Residence Time Distribution (RTD) characterizes the amount of time fluid particles spend inside a reactor or process equipment, crucial for optimizing chemical reaction efficiency and product quality. RTD analysis uses tracer studies to determine flow patterns and identify deviations from ideal plug flow or perfectly mixed conditions. Engineers employ RTD data to enhance reactor design, minimize dead zones, and reduce bypassing to improve conversion rates and selectivity. Advanced computational fluid dynamics (CFD) models integrate RTD to predict performance in complex industrial systems.
Conversion Efficiency
Conversion efficiency in engineering measures the effectiveness with which a system transforms input energy into useful output energy, often expressed as a percentage. This metric is critical in fields such as renewable energy, where photovoltaic cells commonly achieve conversion efficiencies between 15% and 22%. High conversion efficiency minimizes energy losses, directly impacting the performance and sustainability of engines, turbines, and electronic devices. Advances in materials science and nanotechnology continue to drive improvements in conversion efficiency across various engineering applications.
Reactor Design Geometry
Reactor design geometry significantly impacts the efficiency and safety of chemical engineering processes. Parameters such as reactor shape, volume, and surface area influence heat transfer, mixing, and reaction rates within the system. Common geometries include cylindrical, spherical, and tubular reactors, each optimized for specific reaction types and operational conditions. Precise geometric design enhances mass and energy balances, improving overall reactor performance in industrial applications.
Industrial Application
Industrial application in engineering focuses on the practical implementation of scientific principles to design, develop, and optimize machinery, systems, and processes for manufacturing and production. Key sectors include automotive, aerospace, chemical processing, and energy, where engineering innovations enhance efficiency, safety, and sustainability. Advanced technologies such as automation, robotics, and computer-aided design (CAD) play a critical role in streamlining operations and reducing costs. Engineers apply standards like ISO 9001 to ensure quality management and regulatory compliance across industrial applications.
Source and External Links
What is the Difference Between CSTR and PFR? - CSTRs have perfect mixing and uniform composition throughout, while PFRs operate with no back-mixing and a composition that varies along the reactor length, generally achieving higher conversion rates for most reaction orders.
Chemical Reactors: Types and Operations - EPCM Holdings - PFRs require less reactor volume than CSTRs for the same conversion and space-time, making them more compact and efficient for high-conversion processes, especially in gas-phase applications.
Comparison of PFR and CSTR in Softinery Web Application - The PFR's higher local reactant concentrations along the reactor result in faster reaction rates and typically higher overall conversion compared to the uniformly mixed, lower-concentration environment of a CSTR.
FAQs
What is a chemical reactor?
A chemical reactor is a vessel designed to contain and control chemical reactions for producing desired products efficiently and safely.
What is the difference between a CSTR and a PFR?
A CSTR (Continuous Stirred Tank Reactor) maintains uniform composition and temperature through continuous stirring, operates at steady-state with complete mixing, while a PFR (Plug Flow Reactor) has no mixing in the flow direction, exhibits concentration and temperature gradients along the reactor length, and treats reactants as flowing "plugs.
How does flow pattern differ in CSTR and PFR?
CSTR exhibits complete mixing with uniform composition throughout, while PFR maintains a unidirectional, plug flow with composition gradients along the reactor length.
What are the main advantages of CSTR?
CSTR offers uniform temperature and concentration control, efficient mixing, continuous operation, scalability for large volumes, and ease of temperature regulation.
What are the main advantages of PFR?
Plug Flow Reactors (PFR) offer higher conversion per unit volume, better control of reaction time, improved temperature control, and suitability for continuous processing in chemical reactions.
How is mixing achieved in CSTR and PFR?
In a CSTR (Continuous Stirred Tank Reactor), mixing is achieved through mechanical agitation or stirring that ensures uniform composition throughout the reactor. In a PFR (Plug Flow Reactor), mixing occurs primarily by radial diffusion and turbulence, maintaining a concentration gradient along the flow direction without back-mixing.
Which reactor type is more efficient for fast reactions?
Plug flow reactors (PFRs) are more efficient for fast reactions due to their high surface area-to-volume ratio and superior mixing characteristics.
