Piezoelectric actuators generate precise motion using electric voltage applied to piezoelectric materials, offering high resolution and fast response. Electromagnetic actuators convert electrical energy into mechanical motion via magnetic fields, providing greater force and stroke length for heavy-duty applications. Explore the key differences and performance characteristics to determine the best actuator type for your specific needs.
Main Difference
Piezoelectric actuators convert electrical energy into precise mechanical displacement through the deformation of piezoelectric materials, enabling high-resolution movements in the nanometer range. Electromagnetic actuators operate by generating force via magnetic fields and electric currents, typically producing larger displacements and higher force outputs suitable for heavy-duty applications. Piezoelectric actuators excel in applications requiring ultra-fine positioning and rapid response times, such as in microelectromechanical systems (MEMS) and precision optics. Electromagnetic actuators are preferred in robotics, industrial machinery, and automotive systems where robustness and high torque are essential.
Connection
Piezoelectric actuators and electromagnetic actuators are commonly integrated in hybrid systems to leverage the high precision of piezoelectric devices with the large force output of electromagnetic actuators. Connection typically involves mechanical coupling, where the electromagnetic actuator provides coarse positioning while the piezoelectric actuator enables fine adjustments at the micro or nano-scale. Electrical interfaces ensure synchronized control signals, optimizing performance in applications such as precision machining, robotics, and vibration control.
Comparison Table

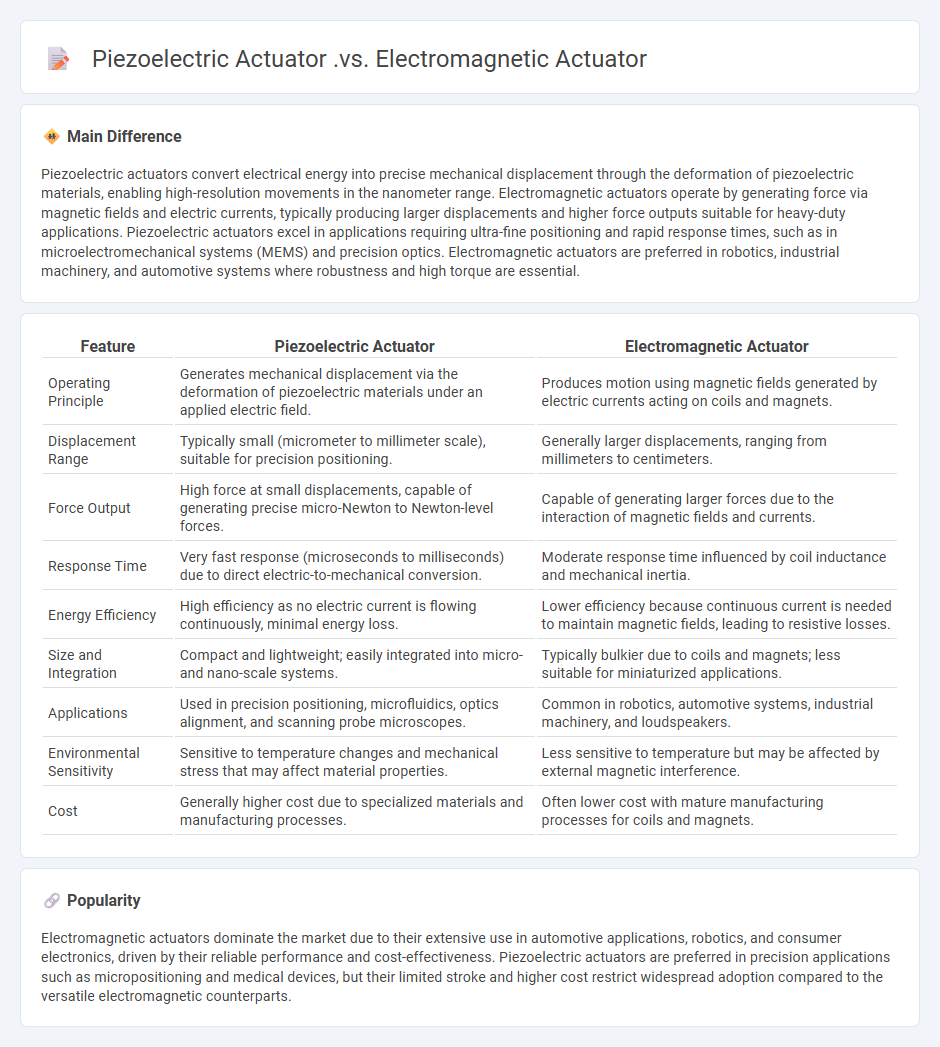

| Feature | Piezoelectric Actuator | Electromagnetic Actuator |
|---|---|---|
| Operating Principle | Generates mechanical displacement via the deformation of piezoelectric materials under an applied electric field. | Produces motion using magnetic fields generated by electric currents acting on coils and magnets. |
| Displacement Range | Typically small (micrometer to millimeter scale), suitable for precision positioning. | Generally larger displacements, ranging from millimeters to centimeters. |
| Force Output | High force at small displacements, capable of generating precise micro-Newton to Newton-level forces. | Capable of generating larger forces due to the interaction of magnetic fields and currents. |
| Response Time | Very fast response (microseconds to milliseconds) due to direct electric-to-mechanical conversion. | Moderate response time influenced by coil inductance and mechanical inertia. |
| Energy Efficiency | High efficiency as no electric current is flowing continuously, minimal energy loss. | Lower efficiency because continuous current is needed to maintain magnetic fields, leading to resistive losses. |
| Size and Integration | Compact and lightweight; easily integrated into micro- and nano-scale systems. | Typically bulkier due to coils and magnets; less suitable for miniaturized applications. |
| Applications | Used in precision positioning, microfluidics, optics alignment, and scanning probe microscopes. | Common in robotics, automotive systems, industrial machinery, and loudspeakers. |
| Environmental Sensitivity | Sensitive to temperature changes and mechanical stress that may affect material properties. | Less sensitive to temperature but may be affected by external magnetic interference. |
| Cost | Generally higher cost due to specialized materials and manufacturing processes. | Often lower cost with mature manufacturing processes for coils and magnets. |
