Piezoelectric sensors generate electrical charges in response to mechanical stress, making them ideal for detecting pressure, vibration, and acceleration with high sensitivity and fast response times. Hall-effect sensors measure magnetic fields and are commonly used for position sensing, current sensing, and speed detection in various automotive and industrial applications. Explore the distinctive features and applications of piezoelectric and Hall-effect sensors to understand their best use cases.
Main Difference
Piezoelectric sensors generate an electrical charge in response to mechanical stress, making them ideal for detecting vibrations, pressure, and force with high sensitivity. Hall-effect sensors measure magnetic fields by detecting voltage changes caused by a magnetic flux, commonly used for position, speed, and current sensing. Unlike piezoelectric sensors, Hall-effect sensors can provide continuous output signals and operate with static magnetic fields. The choice between these sensors depends on the specific application requirements, such as measurement type, environment, and signal characteristics.
Connection
Piezoelectric sensors generate voltage signals when subjected to mechanical stress, which can be connected to a voltage amplifier or microcontroller input for signal processing. Hall-effect sensors produce voltage proportional to magnetic field strength and are typically connected to a power supply, ground, and an analog or digital input pin on a microcontroller. Both sensors require proper wiring of power, ground, and output signal lines to interface effectively with measurement or control systems.
Comparison Table

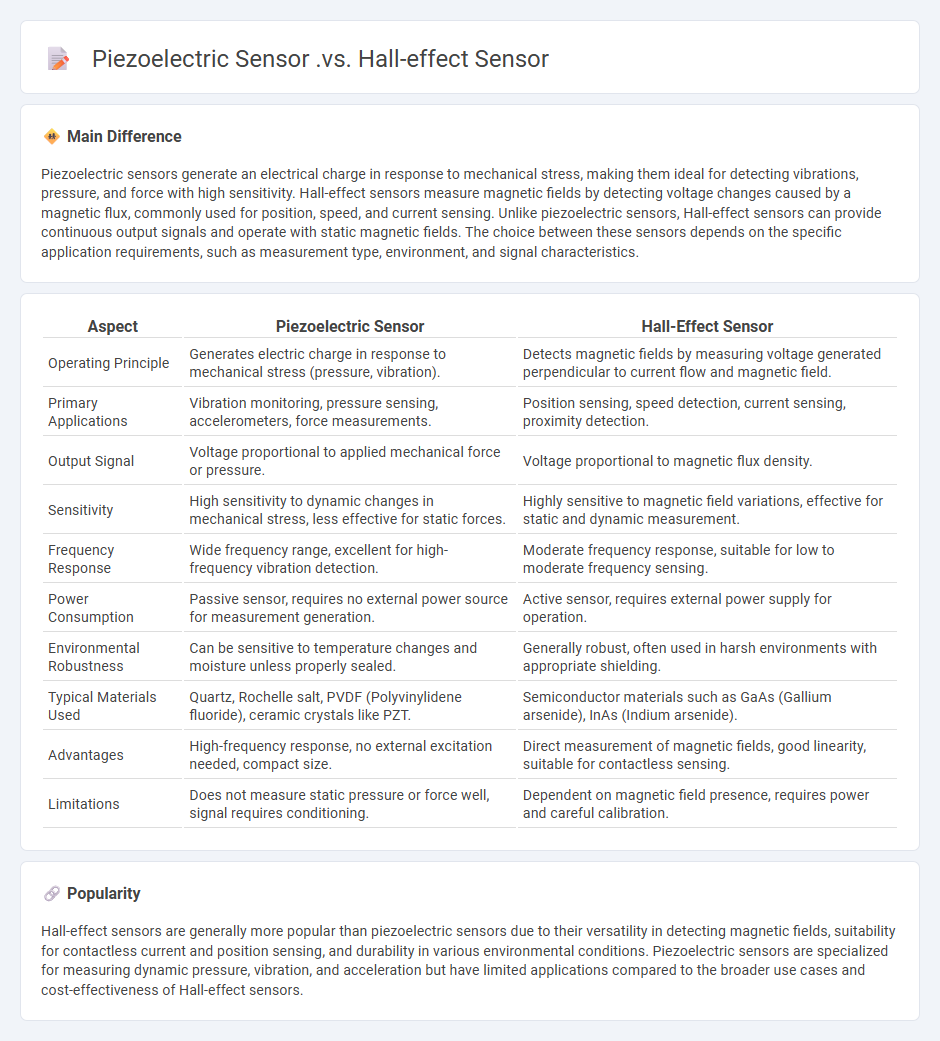

| Aspect | Piezoelectric Sensor | Hall-Effect Sensor |
|---|---|---|
| Operating Principle | Generates electric charge in response to mechanical stress (pressure, vibration). | Detects magnetic fields by measuring voltage generated perpendicular to current flow and magnetic field. |
| Primary Applications | Vibration monitoring, pressure sensing, accelerometers, force measurements. | Position sensing, speed detection, current sensing, proximity detection. |
| Output Signal | Voltage proportional to applied mechanical force or pressure. | Voltage proportional to magnetic flux density. |
| Sensitivity | High sensitivity to dynamic changes in mechanical stress, less effective for static forces. | Highly sensitive to magnetic field variations, effective for static and dynamic measurement. |
| Frequency Response | Wide frequency range, excellent for high-frequency vibration detection. | Moderate frequency response, suitable for low to moderate frequency sensing. |
| Power Consumption | Passive sensor, requires no external power source for measurement generation. | Active sensor, requires external power supply for operation. |
| Environmental Robustness | Can be sensitive to temperature changes and moisture unless properly sealed. | Generally robust, often used in harsh environments with appropriate shielding. |
| Typical Materials Used | Quartz, Rochelle salt, PVDF (Polyvinylidene fluoride), ceramic crystals like PZT. | Semiconductor materials such as GaAs (Gallium arsenide), InAs (Indium arsenide). |
| Advantages | High-frequency response, no external excitation needed, compact size. | Direct measurement of magnetic fields, good linearity, suitable for contactless sensing. |
| Limitations | Does not measure static pressure or force well, signal requires conditioning. | Dependent on magnetic field presence, requires power and careful calibration. |
