Hydrodynamic lubrication involves a full fluid film separating two moving surfaces, preventing direct contact and minimizing wear through viscous shear of the lubricant. Elastohydrodynamic lubrication (EHL) occurs under high pressure conditions where elastic deformation of surfaces and increased lubricant viscosity create a thin but highly effective lubricating film. Discover the key differences and applications of these lubrication regimes to enhance mechanical performance and durability.
Main Difference
Hydrodynamic lubrication occurs when a full fluid film separates two sliding surfaces under high relative velocity, relying on the viscous properties of the lubricant to prevent metal-to-metal contact. Elastohydrodynamic lubrication (EHL) involves high pressure in concentrated contact areas, causing elastic deformation of the surfaces and a significant increase in lubricant viscosity, which enhances the film thickness. EHL is typical in rolling element bearings and gear contacts, while hydrodynamic lubrication is common in journal bearings and plain bearing applications. The key difference lies in the pressure regime and surface deformation effects influencing lubricant film formation and load-carrying capacity.
Connection
Hydrodynamic lubrication occurs when a full fluid film separates two sliding surfaces, preventing direct contact and minimizing wear through fluid pressure generated by relative motion. Elastohydrodynamic lubrication (EHL) extends this concept under high load conditions where elastic deformation of contacting surfaces and increased lubricant viscosity result in a significantly thinner yet highly pressurized lubricant film. Both mechanisms rely on fluid film lubrication principles, with EHL specifically addressing scenarios involving elastic surface deformation and high-pressure effects in concentrated contacts such as gears and rolling element bearings.

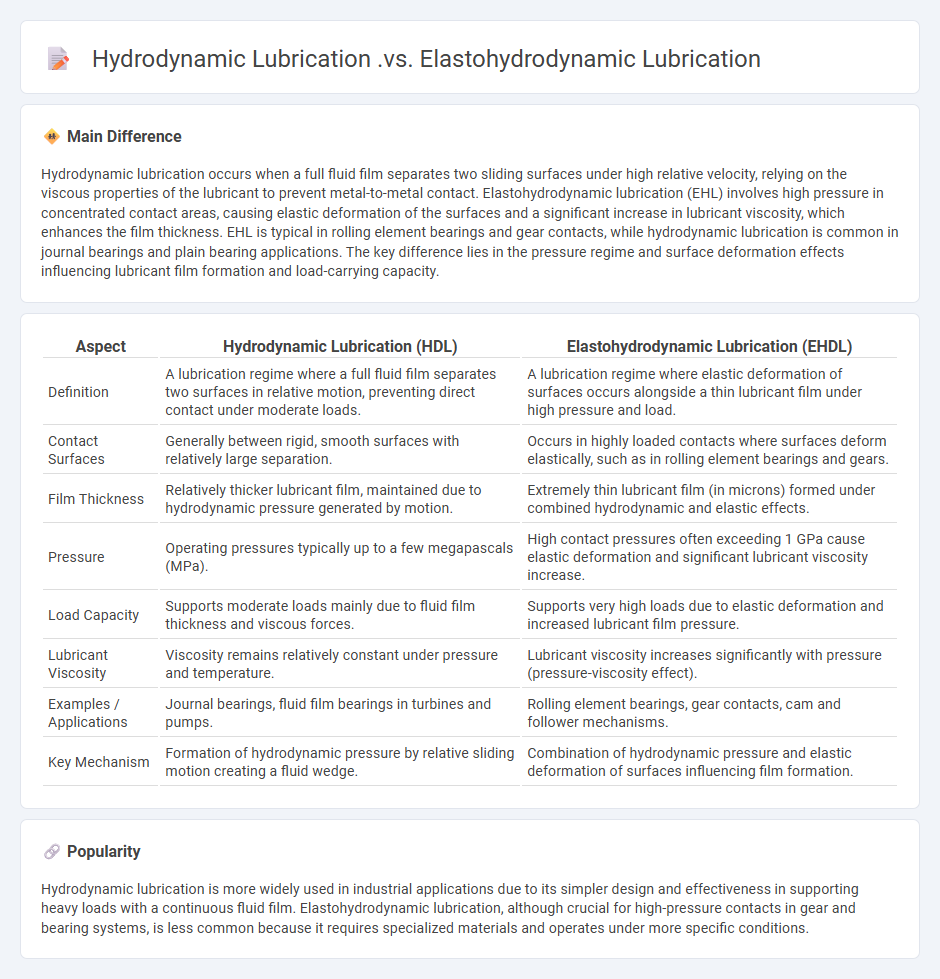

Comparison Table
| Aspect | Hydrodynamic Lubrication (HDL) | Elastohydrodynamic Lubrication (EHDL) |
|---|---|---|
| Definition | A lubrication regime where a full fluid film separates two surfaces in relative motion, preventing direct contact under moderate loads. | A lubrication regime where elastic deformation of surfaces occurs alongside a thin lubricant film under high pressure and load. |
| Contact Surfaces | Generally between rigid, smooth surfaces with relatively large separation. | Occurs in highly loaded contacts where surfaces deform elastically, such as in rolling element bearings and gears. |
| Film Thickness | Relatively thicker lubricant film, maintained due to hydrodynamic pressure generated by motion. | Extremely thin lubricant film (in microns) formed under combined hydrodynamic and elastic effects. |
| Pressure | Operating pressures typically up to a few megapascals (MPa). | High contact pressures often exceeding 1 GPa cause elastic deformation and significant lubricant viscosity increase. |
| Load Capacity | Supports moderate loads mainly due to fluid film thickness and viscous forces. | Supports very high loads due to elastic deformation and increased lubricant film pressure. |
| Lubricant Viscosity | Viscosity remains relatively constant under pressure and temperature. | Lubricant viscosity increases significantly with pressure (pressure-viscosity effect). |
| Examples / Applications | Journal bearings, fluid film bearings in turbines and pumps. | Rolling element bearings, gear contacts, cam and follower mechanisms. |
| Key Mechanism | Formation of hydrodynamic pressure by relative sliding motion creating a fluid wedge. | Combination of hydrodynamic pressure and elastic deformation of surfaces influencing film formation. |
Film Thickness
Film thickness in engineering refers to the precise measurement of the layer's depth within coatings, lubricants, or thin films applied to surfaces. It critically influences mechanical performance, wear resistance, and thermal insulation properties in machinery and electronic devices. Techniques such as ellipsometry, profilometry, and interferometry are commonly employed for accurate film thickness determination. Optimizing film thickness enhances durability and functionality across automotive, aerospace, and semiconductor industries.
Load-Bearing Capacity
Load-bearing capacity refers to the maximum load a structure or material can support without failure, critical in engineering design to ensure safety and durability. It depends on factors like material strength, cross-sectional area, and structural geometry, with common materials including steel, concrete, and timber exhibiting varying capacities. Engineers calculate load-bearing capacity using standards such as AISC for steel structures or ACI for concrete, incorporating safety factors to accommodate dynamic and unexpected stresses. Accurate assessment helps prevent structural collapse and optimizes material usage in buildings, bridges, and other infrastructures.
Elastic Deformation
Elastic deformation in engineering refers to the reversible change in shape or size of a material under applied stress, where the material returns to its original form upon removal of the load. It occurs within the elastic limit, governed by Hooke's law, which states that stress is proportional to strain. Common materials exhibiting elastic deformation include steel, aluminum, and rubber, each characterized by distinct elastic moduli. Understanding elastic deformation is critical for designing structural components to ensure safety and functionality under operational loads.
Viscosity Behavior
Viscosity behavior in engineering refers to the measure of a fluid's resistance to flow and deformation under applied stress. It plays a critical role in the design and optimization of systems such as lubrication, hydraulics, and fluid transport. Understanding how viscosity varies with temperature, pressure, and shear rate allows engineers to predict system performance and prevent failures. Accurate viscosity data guides material selection and process control to enhance efficiency and reliability in engineering applications.
Surface Contact
Surface contact in engineering refers to the interaction between two or more surfaces under load, critical in fields such as mechanical design and tribology. Accurate analysis of surface contact involves factors like contact pressure, friction coefficient, material properties, and surface roughness, which influence wear, fatigue, and heat generation. Advanced methods such as Hertzian contact theory and finite element analysis (FEA) enable precise predictions of stress distribution and deformation. Understanding surface contact mechanics is essential for optimizing machine components like bearings, gears, and seals, enhancing reliability and performance.
Source and External Links
Elastohydrodynamic Lubrication (EHL): Theory and Definition - Elastohydrodynamic lubrication is a form of hydrodynamic lubrication where significant elastic deformation of contacting surfaces occurs, altering the lubricant film thickness and shape to handle high pressures, commonly found in high load and speed contacts like gears and rolling bearings.
Tribology Explained: Lubrication Regimes - PCS Instruments - Hydrodynamic lubrication involves a full fluid film separating surfaces under relative motion with minimal deformation, while elastohydrodynamic lubrication adds the factor of surface elastic deformation caused by high pressure, resulting in a robust lubricant film suitable for high-load contacts.
Lubrication types explained - hydrodynamic and elastohydrodynamic - Hydrodynamic lubrication occurs with sliding surfaces separated by a fluid film, whereas elastohydrodynamic lubrication occurs under rolling contact with concentrated high pressure that elastically deforms the metal surfaces and increases lubricant viscosity, creating a very thin but strong lubricant film critical in applications like bearings and gears.
FAQs
What is hydrodynamic lubrication?
Hydrodynamic lubrication occurs when a full fluid film separates two sliding surfaces, preventing direct contact and minimizing friction by maintaining pressure generated by the relative motion of the surfaces.
What is elastohydrodynamic lubrication?
Elastohydrodynamic lubrication is a lubrication regime characterized by the formation of a high-pressure lubricant film between contacting elastic surfaces, where the lubricant viscosity increases significantly under pressure, preventing direct surface-to-surface contact and reducing wear in concentrated contact areas such as gears and rolling-element bearings.
How does hydrodynamic lubrication work?
Hydrodynamic lubrication works by creating a continuous fluid film between moving surfaces, generated by relative motion that draws lubricant into the contact area, separating the surfaces and preventing direct metal-to-metal contact.
How does elastohydrodynamic lubrication work?
Elastohydrodynamic lubrication works by forming a high-pressure lubricant film between contacting surfaces, where elastic deformation of surfaces and increased lubricant viscosity create a load-bearing, friction-reducing layer.
What are the key differences between hydrodynamic and elastohydrodynamic lubrication?
Hydrodynamic lubrication relies on a full fluid film supporting load through viscous fluid flow between surfaces, whereas elastohydrodynamic lubrication involves elastic deformation of contacting surfaces combined with high-pressure-induced changes in lubricant viscosity to maintain the lubricating film.
Where is hydrodynamic lubrication typically used?
Hydrodynamic lubrication is typically used in journal bearings, such as those in automotive engines, turbines, and heavy machinery.
Where is elastohydrodynamic lubrication commonly applied?
Elastohydrodynamic lubrication is commonly applied in rolling element bearings, gear contacts, and cam-follower interfaces.
