Nanoindentation measures mechanical properties like hardness and elastic modulus at the nanoscale by applying precise forces to small material volumes, enabling detailed analysis of thin films and coatings. Microhardness testing evaluates hardness on a micrometer scale using indenters such as Vickers or Knoop, providing insights into material behavior under localized stress. Explore the differences in these techniques to understand their applications in materials science and engineering.
Main Difference
Nanoindentation measures mechanical properties such as hardness and elastic modulus at the nanoscale by applying very low forces using a sharp indenter, ideal for thin films and small volumes. Microhardness testing involves applying higher loads with a Vickers or Knoop indenter to measure hardness on microscale areas, suitable for bulk materials and coatings. Nanoindentation provides detailed load-displacement data enabling calculation of viscoelastic properties and depth-dependent behavior, while microhardness testing offers a simpler hardness value based on indentation size. The precision of nanoindentation allows characterization of mechanical properties in materials with heterogeneous microstructures at extremely small scales.
Connection
Nanoindentation and microhardness testing both measure material hardness by assessing resistance to deformation, with nanoindentation providing precise hardness and elastic modulus data at the nanoscale using a sharp indenter and load-displacement curves. Microhardness testing, such as Vickers or Knoop methods, evaluates hardness on a microscale by measuring indentation size under defined loads, useful for heterogeneous materials and thin coatings. Together, these techniques complement each other in characterizing mechanical properties across different length scales, essential for material science and engineering applications.
Comparison Table

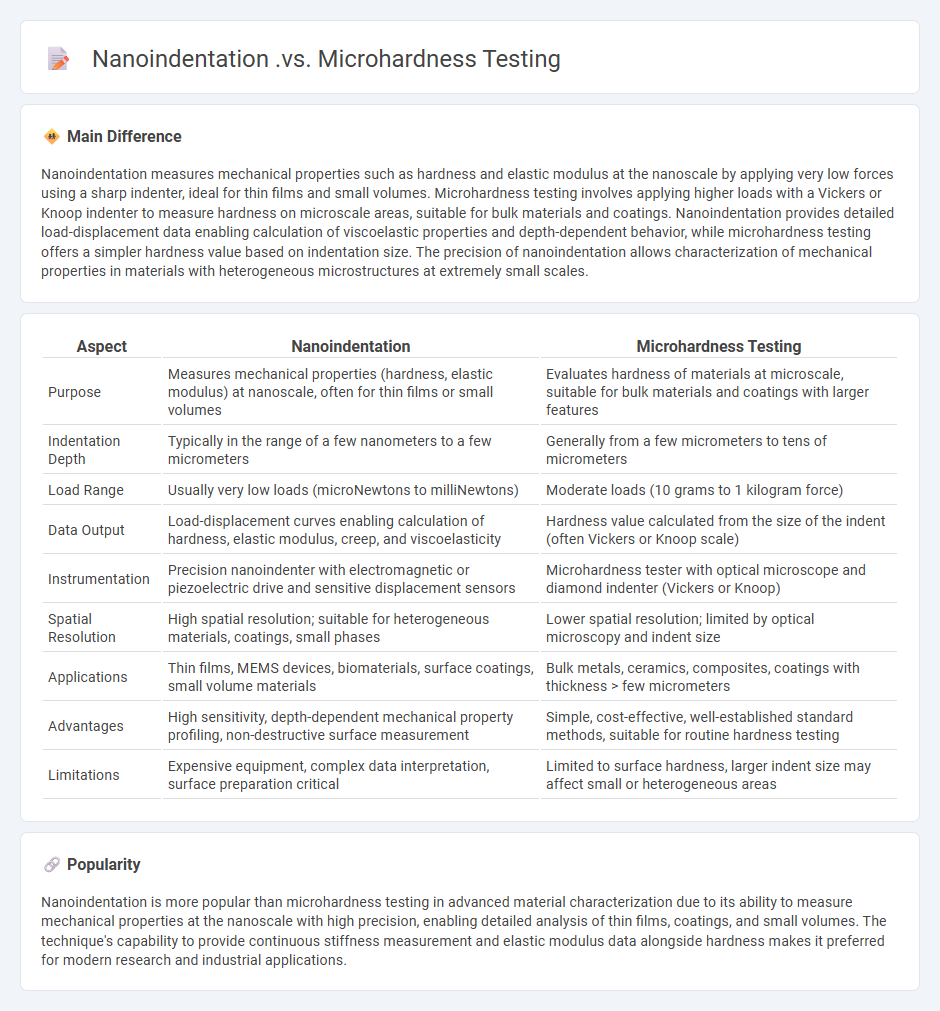

| Aspect | Nanoindentation | Microhardness Testing |
|---|---|---|
| Purpose | Measures mechanical properties (hardness, elastic modulus) at nanoscale, often for thin films or small volumes | Evaluates hardness of materials at microscale, suitable for bulk materials and coatings with larger features |
| Indentation Depth | Typically in the range of a few nanometers to a few micrometers | Generally from a few micrometers to tens of micrometers |
| Load Range | Usually very low loads (microNewtons to milliNewtons) | Moderate loads (10 grams to 1 kilogram force) |
| Data Output | Load-displacement curves enabling calculation of hardness, elastic modulus, creep, and viscoelasticity | Hardness value calculated from the size of the indent (often Vickers or Knoop scale) |
| Instrumentation | Precision nanoindenter with electromagnetic or piezoelectric drive and sensitive displacement sensors | Microhardness tester with optical microscope and diamond indenter (Vickers or Knoop) |
| Spatial Resolution | High spatial resolution; suitable for heterogeneous materials, coatings, small phases | Lower spatial resolution; limited by optical microscopy and indent size |
| Applications | Thin films, MEMS devices, biomaterials, surface coatings, small volume materials | Bulk metals, ceramics, composites, coatings with thickness > few micrometers |
| Advantages | High sensitivity, depth-dependent mechanical property profiling, non-destructive surface measurement | Simple, cost-effective, well-established standard methods, suitable for routine hardness testing |
| Limitations | Expensive equipment, complex data interpretation, surface preparation critical | Limited to surface hardness, larger indent size may affect small or heterogeneous areas |
