Computational Fluid Dynamics (CFD) simulates fluid flow by solving Navier-Stokes equations, crucial for analyzing airflow, water currents, and heat transfer in engineering applications. Discrete Element Modeling (DEM) focuses on particle interactions, modeling the behavior of granular materials and solids by simulating contact forces and motion trajectories. Explore the distinctive methodologies and applications of CFD and DEM to optimize your simulation projects.
Main Difference
Computational Fluid Dynamics (CFD) focuses on simulating the behavior of fluids such as liquids and gases by solving Navier-Stokes equations to analyze flow patterns, pressure distribution, and heat transfer. Discrete Element Modeling (DEM) simulates the motion and interaction of a large number of particles or discrete entities by calculating contact forces, collision dynamics, and particle trajectories. CFD is predominantly used in applications involving continuous media like airflow over aircraft wings, while DEM is applied in granular material handling, powder flow, or bulk solids processing. Combining CFD and DEM enables multiphase flow simulations, capturing both fluid dynamics and particle behaviors in complex systems.
Connection
Computational Fluid Dynamics (CFD) and Discrete Element Modeling (DEM) are connected through their combined use in simulating multiphase flows involving fluid-solid interactions. CFD solves the fluid flow equations, capturing the fluid phase behavior, while DEM models the movement and interactions of discrete particles within the fluid. Integrated CFD-DEM approaches enable detailed analysis of processes like sediment transport, fluidized beds, and particulate mixing in chemical engineering and environmental studies.

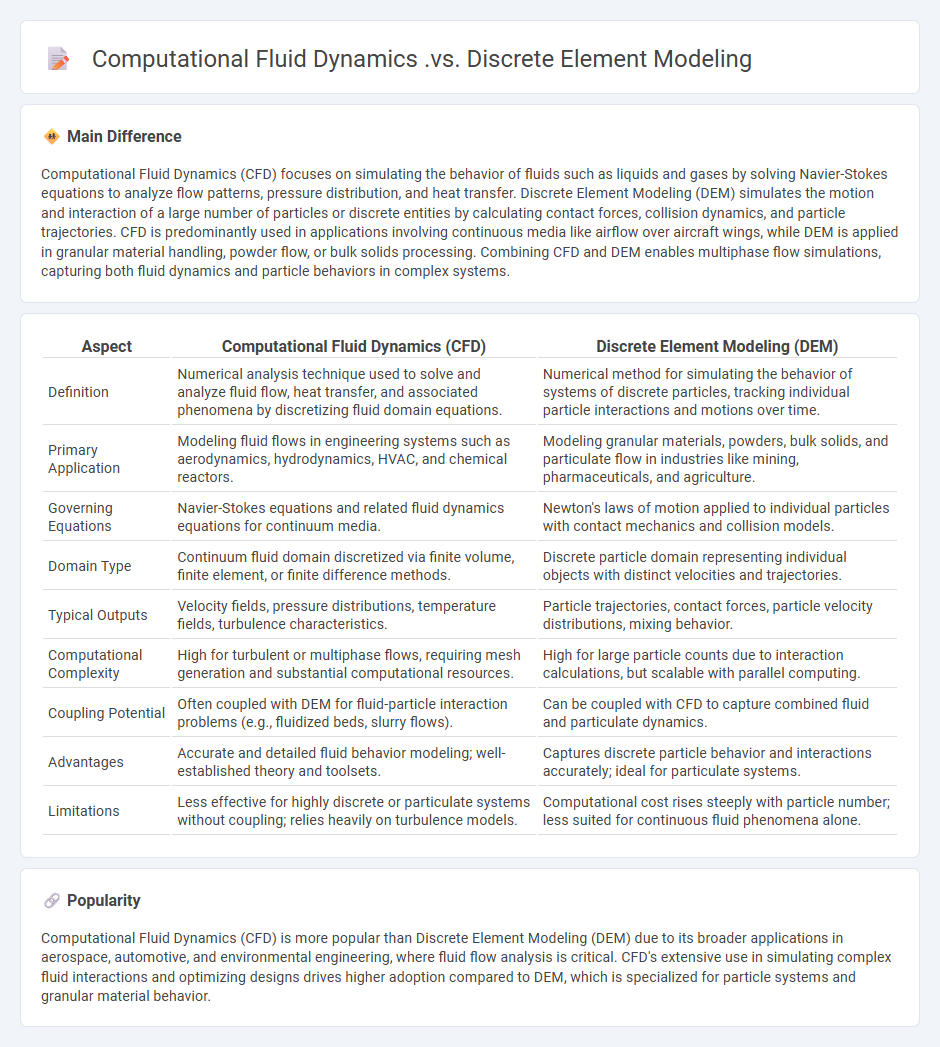

Comparison Table
| Aspect | Computational Fluid Dynamics (CFD) | Discrete Element Modeling (DEM) |
|---|---|---|
| Definition | Numerical analysis technique used to solve and analyze fluid flow, heat transfer, and associated phenomena by discretizing fluid domain equations. | Numerical method for simulating the behavior of systems of discrete particles, tracking individual particle interactions and motions over time. |
| Primary Application | Modeling fluid flows in engineering systems such as aerodynamics, hydrodynamics, HVAC, and chemical reactors. | Modeling granular materials, powders, bulk solids, and particulate flow in industries like mining, pharmaceuticals, and agriculture. |
| Governing Equations | Navier-Stokes equations and related fluid dynamics equations for continuum media. | Newton's laws of motion applied to individual particles with contact mechanics and collision models. |
| Domain Type | Continuum fluid domain discretized via finite volume, finite element, or finite difference methods. | Discrete particle domain representing individual objects with distinct velocities and trajectories. |
| Typical Outputs | Velocity fields, pressure distributions, temperature fields, turbulence characteristics. | Particle trajectories, contact forces, particle velocity distributions, mixing behavior. |
| Computational Complexity | High for turbulent or multiphase flows, requiring mesh generation and substantial computational resources. | High for large particle counts due to interaction calculations, but scalable with parallel computing. |
| Coupling Potential | Often coupled with DEM for fluid-particle interaction problems (e.g., fluidized beds, slurry flows). | Can be coupled with CFD to capture combined fluid and particulate dynamics. |
| Advantages | Accurate and detailed fluid behavior modeling; well-established theory and toolsets. | Captures discrete particle behavior and interactions accurately; ideal for particulate systems. |
| Limitations | Less effective for highly discrete or particulate systems without coupling; relies heavily on turbulence models. | Computational cost rises steeply with particle number; less suited for continuous fluid phenomena alone. |
Fluid Flow Simulation
Fluid flow simulation in engineering employs computational fluid dynamics (CFD) to model the behavior of liquids and gases within various systems. Utilizing Navier-Stokes equations and turbulence models, engineers optimize designs in aerospace, automotive, and civil engineering sectors. High-fidelity simulations help predict pressure distribution, velocity fields, and heat transfer, reducing the need for physical prototypes. Advanced software like ANSYS Fluent and OpenFOAM enable accurate analysis of complex fluid interactions under different boundary conditions.
Particle Interaction
Particle interaction in engineering involves the study of forces and energy exchanges between particles, crucial for material science and fluid dynamics. Understanding how particles collide, bond, or repel each other informs the design of advanced materials like composites and nanomaterials. Computational models such as molecular dynamics simulations enable precise prediction of particle behavior under varying conditions, enhancing the efficiency of processes like filtration and catalysis. These insights drive innovations in aerospace, chemical engineering, and electronics manufacturing.
Eulerian-Lagrangian Methods
Eulerian-Lagrangian methods combine fixed-grid Eulerian frameworks with particle-tracking Lagrangian approaches to simulate complex fluid dynamics and multiphase flows accurately. These hybrid techniques are essential in engineering applications such as combustion modeling, sediment transport, and chemical reactor design, where capturing interactions between dispersed phases and continuous media is critical. High-resolution computational implementations enable detailed tracking of interfaces and mixing processes, improving predictive capabilities for turbulent flows and reactive systems. Advances in numerical algorithms and parallel computing have enhanced the efficiency and scalability of Eulerian-Lagrangian simulations in engineering research and industry.
Multiphase Systems
Multiphase systems in engineering involve the study and application of multiple phases such as solid, liquid, and gas interacting within a single system. These systems are critical in industries like chemical processing, petroleum extraction, and environmental engineering, where phase interactions influence mass transfer, reaction rates, and fluid dynamics. Computational fluid dynamics (CFD) and experimental methods help optimize multiphase flow designs for efficiency and safety. Key parameters include phase distribution, interfacial area, and flow regime, which dictate system behavior and performance.
Boundary Conditions
Boundary conditions in engineering define the constraints and limits applied to physical systems or models, ensuring accurate simulation of real-world behavior. These conditions specify values of variables such as temperature, pressure, displacement, or velocity at the boundaries of a domain, which are critical for solving differential equations in fields like structural analysis, fluid mechanics, and heat transfer. Common types include Dirichlet, Neumann, and Robin boundary conditions, each influencing the solution's uniqueness and stability. Precise boundary condition implementation enhances predictive accuracy in finite element analysis and computational fluid dynamics.
Source and External Links
CFD-DEM - Wikipedia - Computational Fluid Dynamics (CFD) models the continuum fluid flow using Navier-Stokes equations, while Discrete Element Method (DEM) simulates the motion of individual particles by applying Newton's laws, with CFD-DEM coupling these to simulate fluid-solid interactions in multiphase systems.
CFD-DEM: Modeling the Small to Understand the Large - AIChE - CFD focuses on fluid phase as a continuum, whereas DEM treats particles as discrete entities; their coupling (Eulerian-Lagrangian method) enables detailed study of multiphase particulate flows by combining continuum fluid modeling with particle-level dynamics.
What is Discrete Element Method (DEM)? - Ansys - DEM simulates interactions and movement of individual particles by calculating contact forces, often coupled with CFD to include fluid flow effects, enabling prediction of particle positions and behaviors in fluid-particle systems.
FAQs
What is Computational Fluid Dynamics?
Computational Fluid Dynamics (CFD) is the use of numerical analysis and algorithms to solve and analyze problems involving fluid flows.
What is Discrete Element Modeling?
Discrete Element Modeling is a numerical simulation technique used to analyze and predict the behavior of systems composed of distinct, interacting particles or elements.
How do CFD and DEM differ in approach?
CFD models fluid flow using continuum mechanics and solves Navier-Stokes equations, while DEM simulates discrete particles' motion and interactions using Newtonian mechanics.
What types of problems are best suited for CFD?
CFD is best suited for solving fluid dynamics problems involving complex flow behavior, heat transfer, turbulence, and multiphase flows in engineering, aerospace, automotive, and environmental applications.
What applications commonly use DEM?
Digital Elevation Models (DEMs) are commonly used in geographic information systems (GIS), environmental modeling, hydrology, urban planning, forestry, geology, and military simulations.
Can CFD and DEM be coupled together?
CFD and DEM can be coupled by integrating fluid flow simulation with particle dynamics to accurately model fluid-particle interactions in multiphase systems.
What are the limitations of CFD and DEM?
CFD is limited by high computational cost for complex, transient flows and challenges in accurately modeling turbulence and multiphase interactions. DEM is constrained by particle number scalability, simplified particle interaction models, and difficulties in capturing fluid-particle coupling without CFD integration.
