Microstrip patch antennas offer low-profile design and ease of fabrication, making them ideal for compact wireless communication devices. Slot antennas provide wide bandwidth and high radiation efficiency, suitable for applications requiring robust signal performance. Explore detailed comparisons and applications to determine the best antenna for your project needs.

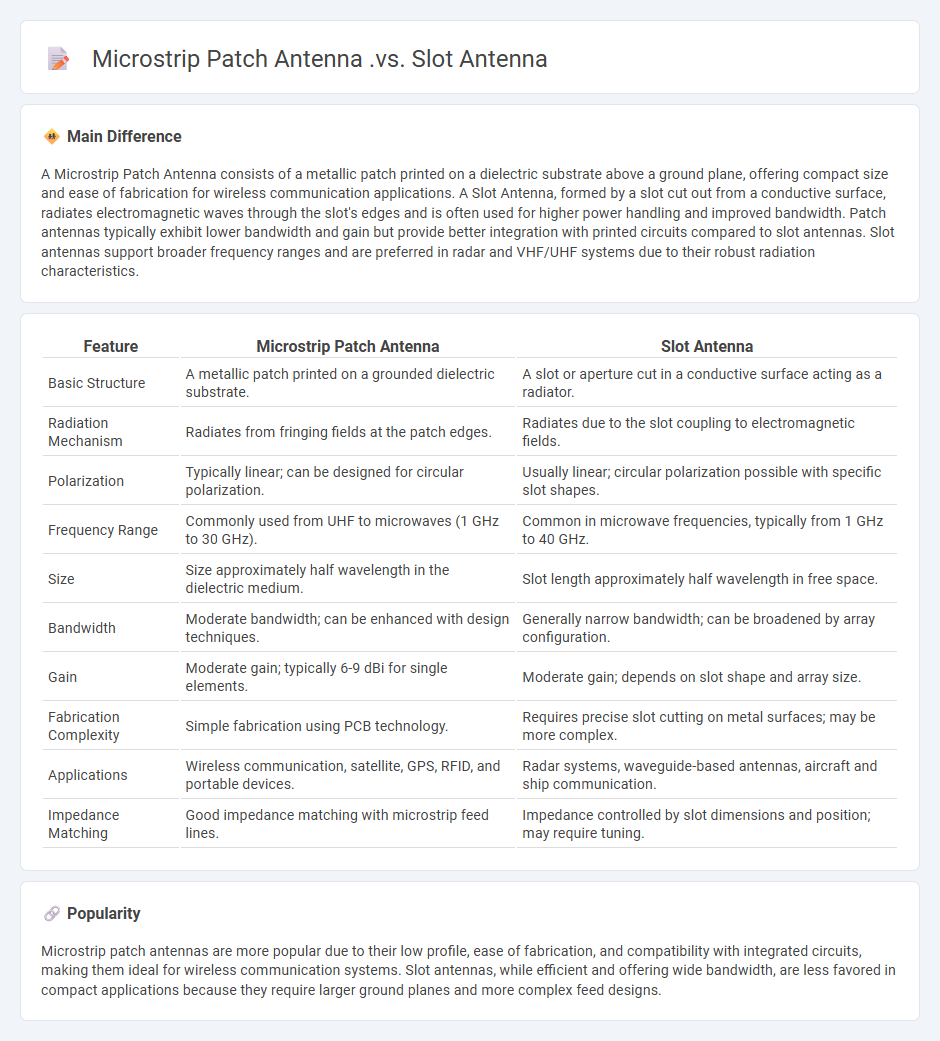

Main Difference
A Microstrip Patch Antenna consists of a metallic patch printed on a dielectric substrate above a ground plane, offering compact size and ease of fabrication for wireless communication applications. A Slot Antenna, formed by a slot cut out from a conductive surface, radiates electromagnetic waves through the slot's edges and is often used for higher power handling and improved bandwidth. Patch antennas typically exhibit lower bandwidth and gain but provide better integration with printed circuits compared to slot antennas. Slot antennas support broader frequency ranges and are preferred in radar and VHF/UHF systems due to their robust radiation characteristics.
Connection
Microstrip patch antennas and slot antennas are typically connected through a feeding mechanism such as a microstrip line or coaxial probe that excites both structures efficiently. The microstrip patch antenna is mounted on one side of the substrate with a ground plane on the opposite side, where the slot antenna is often etched into the ground plane to enable coupling. This configuration allows electromagnetic energy to transfer between the patch and the slot, optimizing bandwidth and radiation characteristics for applications like wireless communication.
Comparison Table
| Feature | Microstrip Patch Antenna | Slot Antenna |
|---|---|---|
| Basic Structure | A metallic patch printed on a grounded dielectric substrate. | A slot or aperture cut in a conductive surface acting as a radiator. |
| Radiation Mechanism | Radiates from fringing fields at the patch edges. | Radiates due to the slot coupling to electromagnetic fields. |
| Polarization | Typically linear; can be designed for circular polarization. | Usually linear; circular polarization possible with specific slot shapes. |
| Frequency Range | Commonly used from UHF to microwaves (1 GHz to 30 GHz). | Common in microwave frequencies, typically from 1 GHz to 40 GHz. |
| Size | Size approximately half wavelength in the dielectric medium. | Slot length approximately half wavelength in free space. |
| Bandwidth | Moderate bandwidth; can be enhanced with design techniques. | Generally narrow bandwidth; can be broadened by array configuration. |
| Gain | Moderate gain; typically 6-9 dBi for single elements. | Moderate gain; depends on slot shape and array size. |
| Fabrication Complexity | Simple fabrication using PCB technology. | Requires precise slot cutting on metal surfaces; may be more complex. |
| Applications | Wireless communication, satellite, GPS, RFID, and portable devices. | Radar systems, waveguide-based antennas, aircraft and ship communication. |
| Impedance Matching | Good impedance matching with microstrip feed lines. | Impedance controlled by slot dimensions and position; may require tuning. |
Radiation Pattern
The radiation pattern in engineering describes the spatial distribution of electromagnetic wave intensity emitted or received by an antenna. It is typically represented in polar or Cartesian coordinates, illustrating the directional dependence of antenna gain or power. Accurate analysis of the radiation pattern is crucial for optimizing antenna design, ensuring efficient signal propagation and minimizing interference. Common types include omnidirectional, directional, and bidirectional patterns, each suited to specific communication applications.
Bandwidth
Bandwidth in engineering refers to the range of frequencies within a given band that a system can effectively transmit or process, typically measured in hertz (Hz). It determines the data transfer capacity of communication channels, with higher bandwidth enabling faster transmission speeds. In electronic circuits and signal processing, bandwidth impacts the clarity and quality of signals by limiting the frequency components that can pass through filters or devices. Precise bandwidth management is critical in telecommunications, networking, and audio engineering to optimize performance and avoid interference.
Polarization
Polarization in engineering refers to the orientation of electromagnetic wave oscillations, which is critical in antenna design and optical systems. Controlling polarization enhances signal clarity and reduces interference in wireless communication technologies such as 5G and satellite networks. Materials like liquid crystals and polarizing filters are engineered to manipulate polarization for applications in display technologies and photonics. Accurate polarization management improves system efficiency, bandwidth, and overall performance in modern engineering solutions.
Substrate Material
Substrate material plays a critical role in engineering applications, serving as the foundational layer for electronic components, printed circuit boards (PCBs), and semiconductor devices. Common substrates include silicon, glass, ceramics, and flexible polymers like polyimide, each chosen for specific thermal, electrical, and mechanical properties. Advanced substrates such as gallium arsenide (GaAs) and silicon carbide (SiC) are employed in high-frequency and high-power applications due to their superior electron mobility and thermal conductivity. Engineering the right substrate material directly impacts device performance, reliability, and manufacturing efficiency in sectors like microelectronics, aerospace, and automotive engineering.
Feeding Mechanism
The feeding mechanism in engineering plays a critical role in the automation of manufacturing processes, ensuring accurate and consistent material supply to machines such as CNC routers, injection molding machines, and assembly lines. These mechanisms utilize precise motor drives, sensors, and control systems to regulate feed rate, positioning, and timing, optimizing production efficiency and reducing material waste. Common types include belt feeders, vibratory feeders, and robotic feeders, each selected based on material type, weight, and production speed requirements. Advances in servo-driven feeding systems integrate IoT technology for real-time monitoring and predictive maintenance in industrial settings.
Source and External Links
Design of Wearable Microstrip Patch Antenna Using T-Shaped Slot Antenna Compared with U-Shaped Slot Antenna for Health Monitoring Systems - T-shaped slot microstrip patch antennas offer higher bandwidth, gain, and lower VSWR compared to U-shaped slot antennas, making them suitable for wearable health monitoring systems within the 2.2 to 2.6 GHz range.
Microstrip Antenna: Types, Uses, Advantages & Disadvantages - Microstrip patch antennas are low-profile, lightweight antennas with a metal patch above a ground plane and dielectric in between, suitable for short-range wireless communication; printed slot antennas feature a thin metal layer with a slot cut into it, offering compact size but lower sensitivity, and are used in applications like RFID and radar.
Difference between Antennas: Printed Monopole, Printed Slot Antenna, Microstrip Patch Antenna - Printed slot antennas differ structurally from microstrip patch antennas, with slot antennas having a cut in a metal layer and typically exhibiting bidirectional radiation patterns, whereas microstrip patch antennas usually have a metal patch radiating primarily in one direction; classifications and implementations vary depending on design and application.
FAQs
What is a microstrip patch antenna?
A microstrip patch antenna is a type of antenna consisting of a flat rectangular or circular metallic patch mounted on a grounded dielectric substrate, widely used in wireless communication for its low-profile, lightweight, and ease of fabrication.
What is a slot antenna?
A slot antenna is a radio antenna consisting of a metal surface with a narrow, elongated slot cut out, which radiates electromagnetic waves when excited by a transmission line.
How do microstrip patch antennas and slot antennas differ in structure?
Microstrip patch antennas consist of a metallic patch on a dielectric substrate above a ground plane, while slot antennas feature a slot cut into the conductive ground plane itself, using the slot as the radiating element.
What are the advantages of microstrip patch antennas compared to slot antennas?
Microstrip patch antennas offer advantages such as low profile, easy fabrication, lightweight structure, cost-effectiveness, and simple integration with printed circuits compared to slot antennas.
What are the typical applications of slot antennas versus microstrip patch antennas?
Slot antennas are typically used in radar systems, satellite communications, and aerospace applications requiring wide bandwidth and high power handling; microstrip patch antennas are favored in mobile devices, GPS systems, and wireless communication due to their low profile, ease of fabrication, and integration with printed circuit boards.
How do the radiation patterns differ between microstrip patch and slot antennas?
Microstrip patch antennas exhibit broadside radiation patterns with maximum energy directed perpendicular to the patch surface, while slot antennas produce end-fire or multi-lobe radiation patterns with energy radiated primarily along the plane of the slot.
Which antenna type is better for miniaturized wireless devices?
Planar inverted-F antennas (PIFAs) are better for miniaturized wireless devices due to their compact size and good performance.
