Strain gauges measure the deformation of materials under load by converting mechanical strain into an electrical signal, while rosette gauges consist of multiple strain gauges arranged in specific orientations to capture strain components in different directions. Strain gauges provide uniaxial strain data, whereas rosette gauges enable multi-axial strain analysis critical for complex stress assessments in engineering applications. Explore the differences and applications of these sensors to optimize your strain measurement techniques.
Main Difference
Strain gauges measure strain at a single point along one axis, providing linear strain data. Rosette gauges consist of multiple strain gauges arranged at specific angles, typically 0deg, 45deg, and 90deg, to measure multi-directional strains on a surface. The rosette gauge enables calculation of principal strains and stress directions, offering comprehensive strain analysis. Strain gauges are ideal for simple uniaxial measurements, while rosette gauges are essential for complex stress state evaluations.
Connection
Strain gauges are connected to rosette gauges in configurations that allow measurement of multi-directional strain by combining readings from individual strain gauges oriented at specific angles, typically 0deg, 45deg, and 90deg. The strain rosette consists of three single-element strain gauges arranged in a triangular pattern to capture the complete strain state on a surface. Data from these gauges are processed using transformation equations to calculate principal strains and their orientations accurately.
Comparison Table

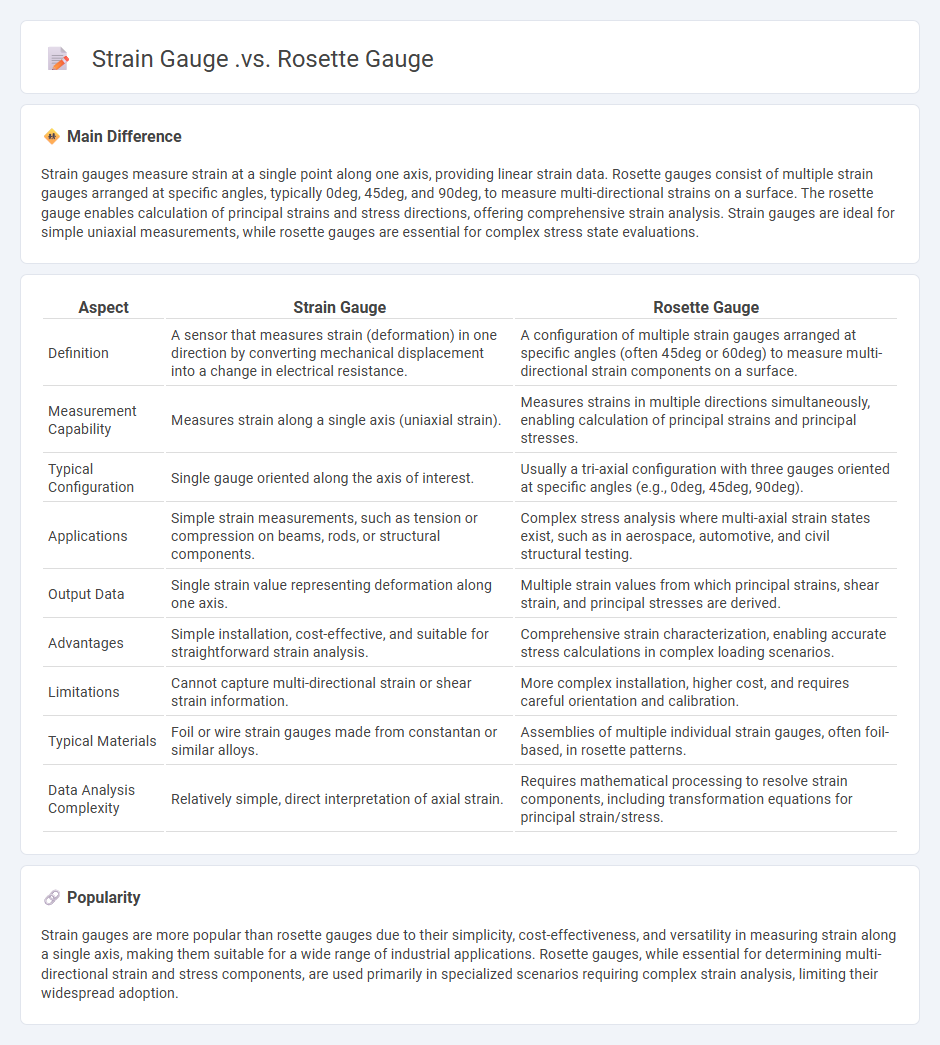

| Aspect | Strain Gauge | Rosette Gauge |
|---|---|---|
| Definition | A sensor that measures strain (deformation) in one direction by converting mechanical displacement into a change in electrical resistance. | A configuration of multiple strain gauges arranged at specific angles (often 45deg or 60deg) to measure multi-directional strain components on a surface. |
| Measurement Capability | Measures strain along a single axis (uniaxial strain). | Measures strains in multiple directions simultaneously, enabling calculation of principal strains and principal stresses. |
| Typical Configuration | Single gauge oriented along the axis of interest. | Usually a tri-axial configuration with three gauges oriented at specific angles (e.g., 0deg, 45deg, 90deg). |
| Applications | Simple strain measurements, such as tension or compression on beams, rods, or structural components. | Complex stress analysis where multi-axial strain states exist, such as in aerospace, automotive, and civil structural testing. |
| Output Data | Single strain value representing deformation along one axis. | Multiple strain values from which principal strains, shear strain, and principal stresses are derived. |
| Advantages | Simple installation, cost-effective, and suitable for straightforward strain analysis. | Comprehensive strain characterization, enabling accurate stress calculations in complex loading scenarios. |
| Limitations | Cannot capture multi-directional strain or shear strain information. | More complex installation, higher cost, and requires careful orientation and calibration. |
| Typical Materials | Foil or wire strain gauges made from constantan or similar alloys. | Assemblies of multiple individual strain gauges, often foil-based, in rosette patterns. |
| Data Analysis Complexity | Relatively simple, direct interpretation of axial strain. | Requires mathematical processing to resolve strain components, including transformation equations for principal strain/stress. |
Measurement Principle
Measurement principles in engineering rely on quantifying physical quantities through standardized methods to ensure accuracy and consistency. Common principles include direct measurement techniques such as using rulers, calipers, and micrometers, as well as indirect methods involving sensors and transducers like strain gauges and thermocouples. Engineers apply principles of calibration, traceability, and error analysis to minimize uncertainty and improve measurement reliability. Advanced engineering fields utilize digital measurement systems and automated data acquisition for precise monitoring and control.
Directionality
Directionality in engineering refers to the property of materials or systems to exhibit different characteristics when measured along different orientations. It plays a critical role in anisotropic materials like composites, where mechanical properties such as strength, stiffness, and thermal conductivity vary based on fiber alignment. Directionality also impacts sensor performance, antenna design, and signal propagation, influencing efficiency and accuracy in applications like radar and communication systems. Understanding and optimizing directionality enables enhanced control over structural behavior and system functionality in diverse engineering disciplines.
Stress Analysis
Stress analysis in engineering involves evaluating internal forces within materials and structures under external loads to ensure safety and performance. Techniques such as finite element analysis (FEA) are widely used to simulate stress distribution in complex components, helping predict failure points and optimize design. Common applications include aerospace, civil, and mechanical engineering sectors where materials like steel, aluminum, and composites are analyzed for tensile, compressive, and shear stresses. Accurate stress analysis reduces risk of structural failure, extends component lifespan, and improves overall system reliability.
Application Suitability
Application suitability in engineering focuses on evaluating materials, methods, and technologies to ensure optimal performance under specific operational conditions. Engineers assess factors such as material strength, durability, environmental resistance, and cost-effectiveness to select the most appropriate solutions for projects ranging from civil infrastructure to aerospace systems. Advanced simulation tools and standards like ASTM and ISO guide the decision-making process, enhancing reliability and safety. This targeted approach minimizes risk, improves efficiency, and supports sustainable engineering outcomes.
Data Interpretation
Data interpretation in engineering involves analyzing and making sense of collected data to inform design, development, and problem-solving processes. It relies on statistical methods, software tools, and domain-specific knowledge to extract actionable insights from complex datasets. Engineers utilize interpreted data to optimize system performance, ensure quality control, and predict maintenance needs. Effective data interpretation enhances decision-making and drives innovation across various engineering disciplines.
Source and External Links
Strain Gage Rosettes: Selection, Application and Data Reduction - A strain gauge measures strain in one direction, while a rosette is an arrangement of two or more strain gauges oriented at different angles to measure strains along multiple directions, enabling calculation of principal strains and stresses in biaxial stress states.
Strain Rosette - Dewesoft Manual - Rosettes come in types defined by the angles between gauges (45deg, 60deg, 90deg, 120deg), with the 90deg type using only two gauges and requiring principal strain directions to align with the gauge axes, while others use three gauges to fully determine 2D strain states.
What is a Strain Gauge Rosette? | HBK - Single strain gauges measure strain in one direction, whereas rosettes combine multiple strain gauges closely positioned at specific angles to analyze biaxial stresses with unknown principal direction, thus providing more comprehensive strain data.
FAQs
What is a strain gauge?
A strain gauge is a sensor that measures the amount of strain or deformation on an object by detecting changes in electrical resistance.
What is a rosette gauge?
A rosette gauge is a measurement tool used to determine the strain or deformation in materials by analyzing the strain at multiple orientations simultaneously.
How does a strain gauge work?
A strain gauge measures strain by converting mechanical deformation into a change in electrical resistance, which varies proportionally to the amount of strain experienced by the material.
How does a rosette gauge measure strain?
A rosette strain gauge measures strain by using multiple strain gauge elements oriented at different angles to capture strain components in various directions, enabling calculation of principal strains and their directions.
What are the main differences between strain gauge and rosette gauge?
A strain gauge measures strain in one direction, while a rosette gauge consists of three strain gauges arranged at specific angles to measure multi-directional strains and determine principal strains.
When should you use a rosette gauge instead of a single strain gauge?
Use a rosette gauge instead of a single strain gauge when measuring multi-axial strain components to accurately determine principal strains and their orientations.
What are the advantages and disadvantages of strain gauge and rosette gauge?
Strain gauges offer high sensitivity, accuracy, and are suitable for measuring uniaxial strain, while rosette gauges measure multi-directional strain components at a point, enabling determination of principal strains and directions. Strain gauges have limited capability for complex strain states, whereas rosette gauges are more complex to install and interpret, and may introduce cumulative errors due to multiple gauge alignments.
