Microchannel heat sinks offer superior thermal management by utilizing microscopic channels that significantly increase surface area and enhance heat dissipation compared to conventional heat sinks. These advanced cooling solutions improve thermal performance in high-power electronics, ensuring greater efficiency and reliability. Explore the detailed comparison to understand which heat sink technology best suits your cooling needs.
Main Difference
Microchannel heat sinks feature numerous small channels that increase surface area and enhance convective heat transfer efficiency compared to conventional heat sinks with larger, fewer fins. The compact design of microchannel heat sinks allows for higher heat flux dissipation and better cooling performance in limited spaces. Conventional heat sinks typically rely on passive airflow and have slower thermal response times, while microchannel heat sinks use micro-scale fluid flow to achieve faster heat removal. The improved heat transfer coefficient in microchannel heat sinks makes them ideal for high-performance electronics and power devices requiring efficient thermal management.
Connection
Microchannel heat sinks and conventional heat sinks are connected through their shared purpose of enhancing thermal management in electronic devices by dissipating heat efficiently. Both types rely on heat transfer principles but differ in design; microchannel heat sinks use numerous small channels to increase surface area and fluid contact, improving cooling performance compared to traditional finned heat sinks. Integration often involves combining microchannel structures with conventional heat sink bases to optimize cooling capacity for high-power applications.
Comparison Table

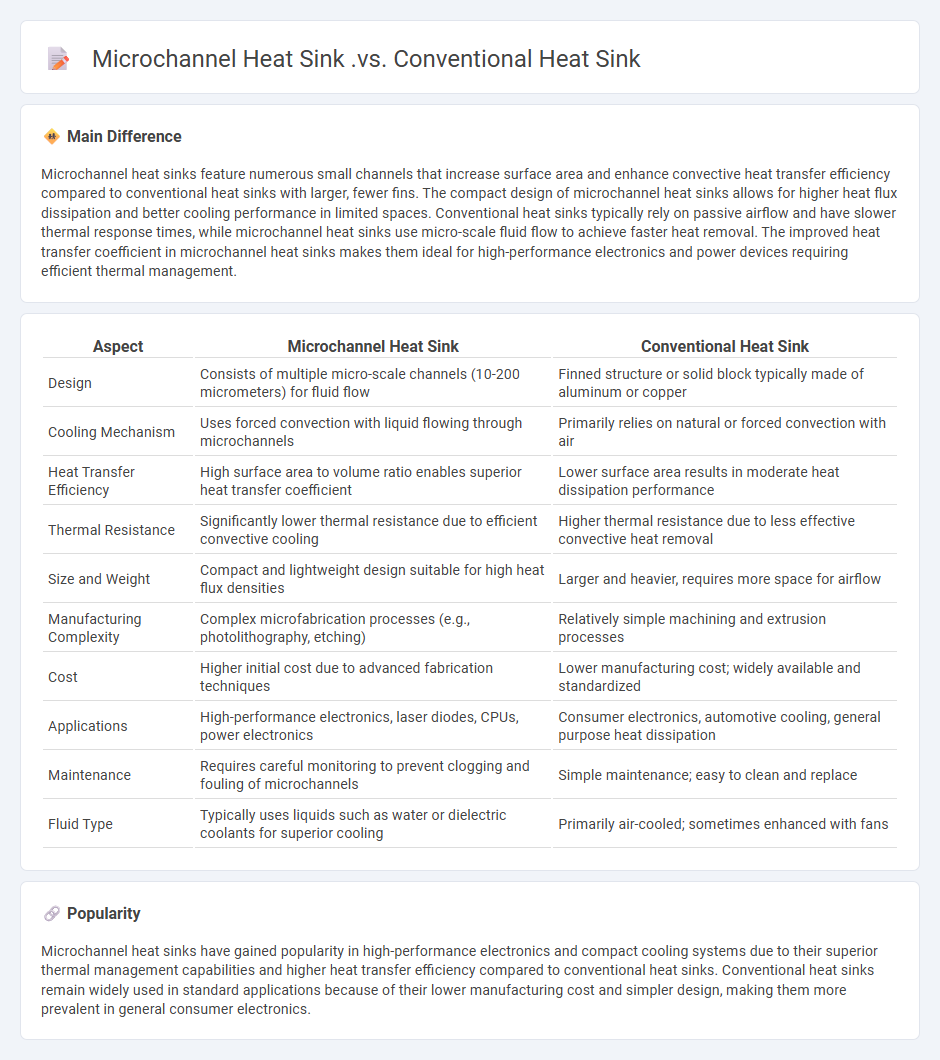

| Aspect | Microchannel Heat Sink | Conventional Heat Sink |
|---|---|---|
| Design | Consists of multiple micro-scale channels (10-200 micrometers) for fluid flow | Finned structure or solid block typically made of aluminum or copper |
| Cooling Mechanism | Uses forced convection with liquid flowing through microchannels | Primarily relies on natural or forced convection with air |
| Heat Transfer Efficiency | High surface area to volume ratio enables superior heat transfer coefficient | Lower surface area results in moderate heat dissipation performance |
| Thermal Resistance | Significantly lower thermal resistance due to efficient convective cooling | Higher thermal resistance due to less effective convective heat removal |
| Size and Weight | Compact and lightweight design suitable for high heat flux densities | Larger and heavier, requires more space for airflow |
| Manufacturing Complexity | Complex microfabrication processes (e.g., photolithography, etching) | Relatively simple machining and extrusion processes |
| Cost | Higher initial cost due to advanced fabrication techniques | Lower manufacturing cost; widely available and standardized |
| Applications | High-performance electronics, laser diodes, CPUs, power electronics | Consumer electronics, automotive cooling, general purpose heat dissipation |
| Maintenance | Requires careful monitoring to prevent clogging and fouling of microchannels | Simple maintenance; easy to clean and replace |
| Fluid Type | Typically uses liquids such as water or dielectric coolants for superior cooling | Primarily air-cooled; sometimes enhanced with fans |
Thermal Conductivity
Thermal conductivity measures a material's ability to conduct heat, expressed in watts per meter-kelvin (W/m*K). Metals such as copper and aluminum exhibit high thermal conductivity values, often exceeding 200 W/m*K, facilitating efficient heat transfer in engineering applications. Insulating materials like polystyrene foam have significantly lower thermal conductivities, typically below 0.05 W/m*K, minimizing heat flow. Accurate thermal conductivity data is essential for designing heat exchangers, thermal insulation, and electronic cooling systems.
Heat Transfer Coefficient
The heat transfer coefficient quantifies the rate of heat transfer between a solid surface and a fluid per unit area and temperature difference, measured in watts per square meter per kelvin (W/m2*K). It is pivotal in designing heat exchangers, HVAC systems, and thermal insulation to ensure efficient thermal management. Values vary widely depending on the mode of heat transfer, such as conduction, convection, or radiation, with convective heat transfer coefficients ranging from 10 to 10,000 W/m2*K depending on fluid velocity and properties. Accurate determination of this coefficient allows engineers to optimize thermal systems for energy efficiency and process control.
Pressure Drop
Pressure drop refers to the reduction in fluid pressure as it flows through a system, such as pipes, valves, or fittings. It is caused by frictional forces, turbulence, and changes in flow area or direction, which convert mechanical energy into heat. Accurate calculation of pressure drop is crucial for designing efficient HVAC systems, pipelines, and pumps, ensuring proper fluid transport and energy conservation. Engineers use equations like the Darcy-Weisbach or Hazen-Williams to quantify pressure loss in various materials and flow conditions.
Surface Area-to-Volume Ratio
The surface area-to-volume ratio is a critical factor in engineering applications, influencing heat transfer, material strength, and chemical reactions. In microscale devices, a high surface area-to-volume ratio enhances efficiency by facilitating rapid thermal dissipation and increased reaction rates. Materials with optimized ratios are essential in designing heat exchangers, catalysts, and biomedical implants to ensure effective performance and durability. Engineers use computational modeling to predict and manipulate this ratio for improved system functionality across various industries.
Fluid Flow Dynamics
Fluid flow dynamics in engineering involves the study of fluid behavior under various forces and conditions, crucial for designing systems such as pipelines, HVAC, and hydraulic machinery. Understanding laminar and turbulent flow regimes helps optimize efficiency and safety in applications like aerospace, automotive, and civil engineering. Computational Fluid Dynamics (CFD) software, including ANSYS Fluent and OpenFOAM, enables precise simulation of fluid interactions in complex geometries. Key parameters such as Reynolds number, viscosity, and pressure gradients are vital for predicting flow patterns and performance in engineering designs.
Source and External Links
Topological structures for microchannel heat sink applications - Microchannel heat sinks (MCHS) offer smaller heat transfer resistance, higher efficiency, and more compact size compared to conventional heat sinks, resulting in significantly improved heat dissipation performance especially in high heat flux applications, though they have drawbacks like fabrication complexity and fluid flow distribution challenges.
FLUID & THERMAL ANALYSIS OF A MANIFOLD MICROCHANNEL ... - Manifold microchannel coolers can reduce pressure drop and pumping power significantly compared to traditional heat sinks, while achieving high heat transfer rates through improved fluid flow dynamics inside microchannels.
Flow and Heat Transfer Correlations for Mini and Microchannels - Microchannel heat sinks achieve much higher heat transfer coefficients than conventional heat sinks due to their narrow channels enabling laminar flow and larger surface area-to-volume ratio, which allows cooling of very high heat fluxes efficiently.
FAQs
What is a heat sink?
A heat sink is a device that dissipates heat generated by electronic components to prevent overheating and ensure optimal performance.
How does a microchannel heat sink differ from a conventional heat sink?
A microchannel heat sink features microscale channels that enhance heat transfer by increasing surface area and fluid flow velocity, whereas a conventional heat sink relies on larger fins and passive convection for heat dissipation.
What materials are used for microchannel heat sinks?
Microchannel heat sinks are typically made from copper, aluminum, silicon, and sometimes polymers or ceramics for specialized applications.
How does heat dissipation compare between microchannel and conventional heat sinks?
Microchannel heat sinks exhibit significantly higher heat dissipation rates than conventional heat sinks due to their increased surface area and enhanced convective heat transfer coefficients.
What are the main applications of microchannel heat sinks?
Microchannel heat sinks are primarily used in high-performance electronics cooling, microprocessor thermal management, power electronics, optoelectronic devices, and micro-electromechanical systems (MEMS).
What are the advantages of using a microchannel heat sink?
Microchannel heat sinks offer high thermal performance, compact size, enhanced heat dissipation efficiency, uniform temperature distribution, reduced thermal resistance, and lower coolant volume requirements.
Are there any limitations or challenges with microchannel heat sinks?
Microchannel heat sinks face limitations including high pressure drop, clogging risk, manufacturing complexity, thermal stress, and cost concerns.
