Open loop control systems operate without feedback, executing predetermined commands regardless of output changes, commonly found in simple applications like washing machines or microwave ovens. Closed loop control systems use feedback to continuously adjust their actions, enhancing accuracy and stability in complex tasks such as temperature regulation or robotic movement. Explore the distinctions between open loop and closed loop control to optimize system performance and efficiency.
Main Difference
Open loop control operates without feedback, executing pre-set instructions regardless of the output, making it simpler but less accurate. Closed loop control continuously monitors output through sensors to adjust inputs dynamically, ensuring higher precision and adaptability. Open loop systems are common in applications where output variability is minimal, while closed loop systems are essential in environments requiring precise regulation, such as temperature or speed control. The presence or absence of feedback is the primary distinguishing factor between these control strategies.
Connection
Open Loop Control operates without feedback, relying solely on predefined input signals to manage system output, while Closed Loop Control continuously monitors output through sensors to adjust inputs dynamically. Both control methods are interconnected in hybrid systems where Open Loop provides initial control actions, and Closed Loop refines performance via real-time feedback. This integration enhances system accuracy and stability in applications ranging from industrial automation to robotics.

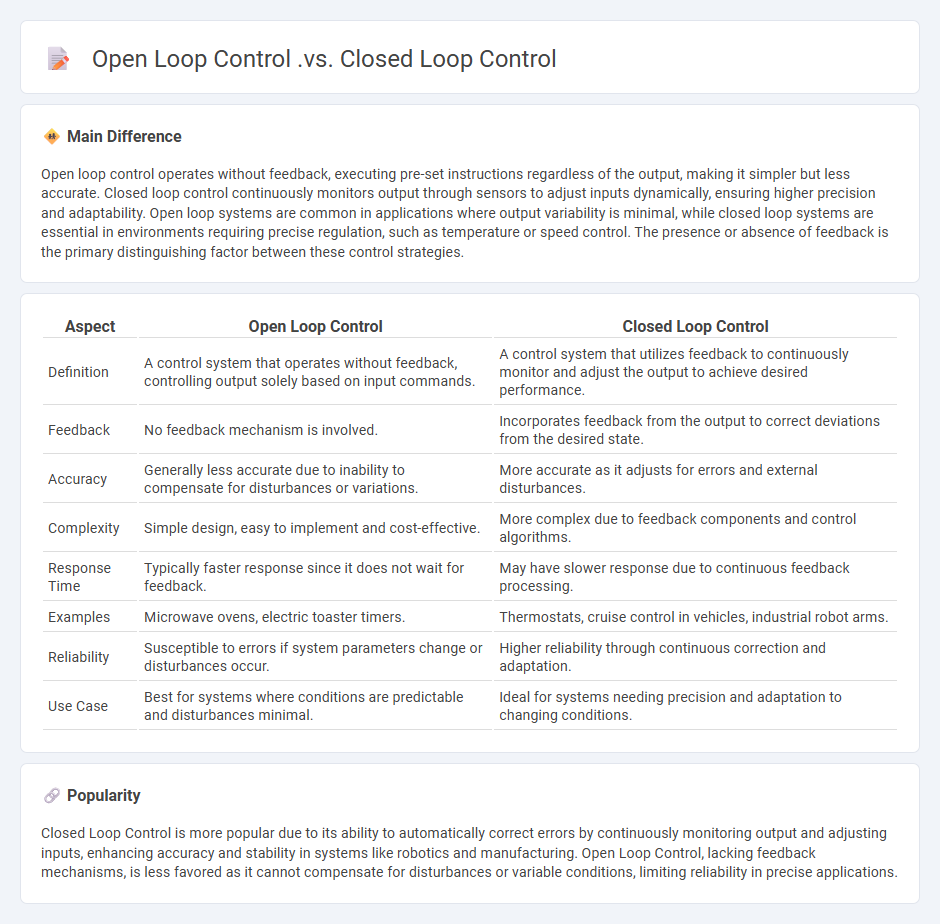

Comparison Table
| Aspect | Open Loop Control | Closed Loop Control |
|---|---|---|
| Definition | A control system that operates without feedback, controlling output solely based on input commands. | A control system that utilizes feedback to continuously monitor and adjust the output to achieve desired performance. |
| Feedback | No feedback mechanism is involved. | Incorporates feedback from the output to correct deviations from the desired state. |
| Accuracy | Generally less accurate due to inability to compensate for disturbances or variations. | More accurate as it adjusts for errors and external disturbances. |
| Complexity | Simple design, easy to implement and cost-effective. | More complex due to feedback components and control algorithms. |
| Response Time | Typically faster response since it does not wait for feedback. | May have slower response due to continuous feedback processing. |
| Examples | Microwave ovens, electric toaster timers. | Thermostats, cruise control in vehicles, industrial robot arms. |
| Reliability | Susceptible to errors if system parameters change or disturbances occur. | Higher reliability through continuous correction and adaptation. |
| Use Case | Best for systems where conditions are predictable and disturbances minimal. | Ideal for systems needing precision and adaptation to changing conditions. |
Feedback Mechanism
Feedback mechanisms in engineering involve the process of using output signals to regulate and control system behavior, ensuring stability and desired performance. Common types include negative feedback, which reduces errors by comparing output with a reference input, and positive feedback, which amplifies specific signals to enhance system response. These mechanisms are crucial in control systems, electronics, and mechanical engineering for applications such as temperature control, signal processing, and automation. Precise feedback implementation improves system accuracy, efficiency, and robustness in dynamic environments.
System Stability
System stability in engineering ensures that a system consistently returns to its equilibrium state after a disturbance, preventing failure or unbounded output. Stability analysis involves evaluating system behavior using criteria such as the Lyapunov method, Routh-Hurwitz criterion, and Nyquist plot, which help predict response to inputs and perturbations. Designing stable control systems requires precise tuning of parameters like gain and feedback loops to maintain desired performance and avoid oscillations. In practical applications, stability directly impacts the reliability of electrical grids, mechanical structures, and automated processes.
Error Correction
Error correction in engineering involves detecting and rectifying faults within systems to enhance reliability and performance. Techniques like error detection codes, such as parity bits and cyclic redundancy checks (CRC), are widely employed in digital communications and data storage to identify corrupted data. Advanced error correction methods, including Reed-Solomon and Turbo codes, enable the reconstruction of original signals even in the presence of noise and interference. Implementing robust error correction algorithms is essential in aerospace, telecommunications, and control systems to ensure operational safety and data integrity.
Response Time
Response time in engineering measures the interval between an input signal and the system's output reaction, critical in control systems, real-time computing, and telecommunications. It directly influences system stability, user experience, and operational efficiency in applications such as robotics, network traffic management, and automated manufacturing. Minimizing response time enhances performance in microprocessor design, signal processing, and embedded systems, often measured in milliseconds or microseconds depending on the context. Techniques like feedback control, predictive algorithms, and hardware optimization are employed to reduce response delays and improve system responsiveness.
Accuracy
Accuracy in engineering refers to the degree of closeness between a measured or calculated value and the true or accepted reference value. It is a critical parameter in quality control, ensuring components and systems meet specified design tolerances. Measurement instruments like calipers, micrometers, and coordinate measuring machines (CMM) are calibrated regularly to maintain accuracy within industry standards such as ISO 9001. High accuracy reduces errors, enhances reliability, and improves overall system performance in engineering applications.
Source and External Links
Close Loop vs. Open Loop Motor Control: The Definitive Guide - This article discusses the differences between open-loop and closed-loop motor control systems, focusing on feedback mechanisms and accuracy.
Know when to use open- or closed-loop control - The article provides guidance on when to use open-loop versus closed-loop control systems, highlighting their respective advantages and applications.
Difference between Open-Loop Control System and Closed-Loop Control System - This resource outlines the key differences and applications of open-loop and closed-loop control systems, including their design complexity and cost.
FAQs
What is a control system?
A control system is a set of devices or algorithms designed to manage, regulate, and guide the behavior of other devices or systems to achieve desired outputs.
What is the difference between open loop and closed loop control?
Open loop control operates without feedback, applying input to a system regardless of output, while closed loop control continuously monitors output via feedback to adjust inputs and maintain desired performance.
How does open loop control work?
Open loop control works by sending predetermined commands to a system without using feedback to adjust or correct the output.
How does closed loop control operate?
Closed loop control operates by continuously measuring the system output through sensors, comparing it to a desired setpoint, and automatically adjusting the input to minimize the error and maintain system stability.
What are the advantages of open loop control?
Open loop control offers advantages such as simplicity in design, lower cost, faster response time, and ease of implementation due to the absence of feedback mechanisms.
What are the benefits of closed loop control?
Closed loop control improves system accuracy, reduces steady-state error, enhances disturbance rejection, increases stability, and enables automatic compensation for process parameter variations.
Where are open loop and closed loop controls used?
Open loop controls are used in systems without feedback, such as simple household appliances like washing machines, while closed loop controls are applied in systems requiring feedback for accuracy, such as thermostats and automatic cruise control in vehicles.
