Structural Health Monitoring (SHM) focuses on the continuous assessment of a structure's condition through sensor data to detect damage and ensure safety. Structural Dynamics studies how structures respond to loads, vibrations, and environmental forces, emphasizing behavior analysis over time. Explore the distinctions between SHM and Structural Dynamics to enhance infrastructure durability and performance.
Main Difference
Structural Health Monitoring (SHM) focuses on the continuous or periodic assessment of a structure's condition using sensor data to detect damage or degradation over time. Structural Dynamics studies the behavior of structures subjected to dynamic loads such as earthquakes, wind, or vibrations, analyzing the response and stability through mathematical models and simulations. SHM provides real-time or long-term data for maintenance decisions, while Structural Dynamics offers predictive insights into how structures respond to varying forces. Both fields contribute to structural safety but differ in their primary objectives and methodologies.
Connection
Structural Health Monitoring (SHM) relies on Structural Dynamics to analyze vibrational responses and detect anomalies indicating damage or deterioration in structures. By interpreting dynamic data such as natural frequencies, mode shapes, and damping ratios, SHM systems can assess structural integrity in real-time. This integration enhances predictive maintenance and prolongs the lifespan of bridges, buildings, and aerospace components.

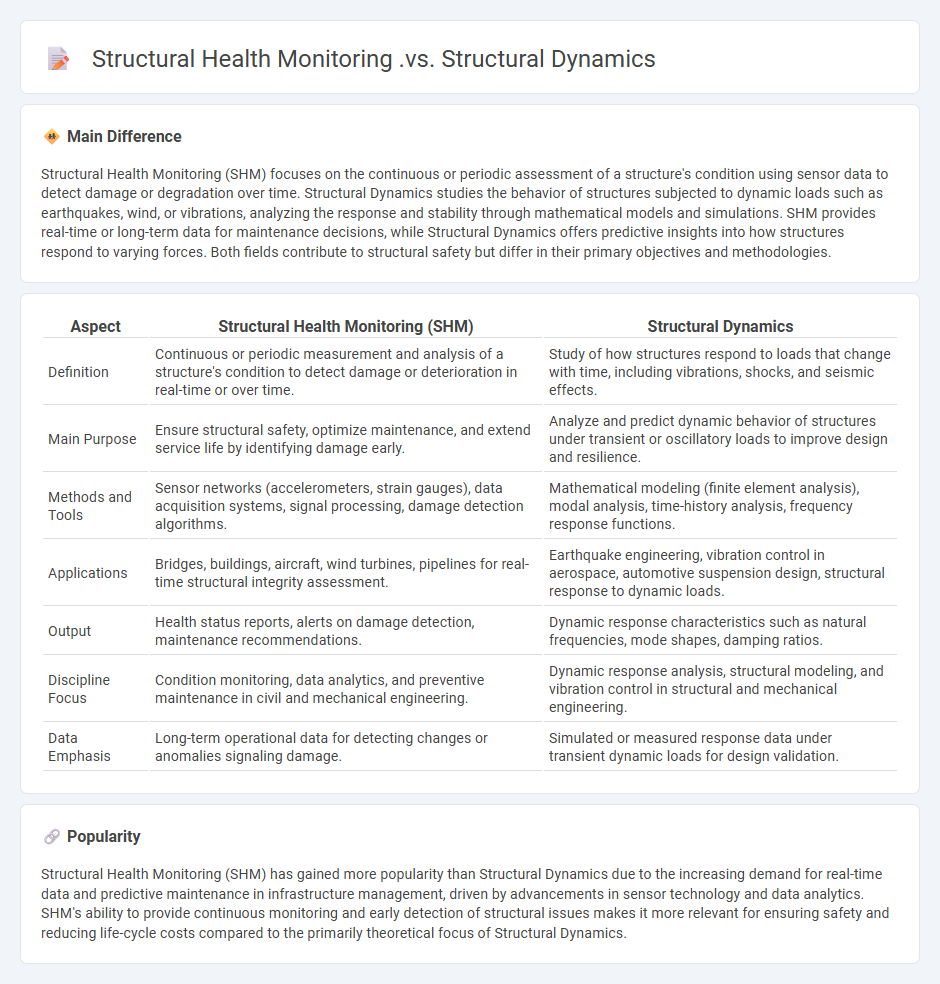

Comparison Table
| Aspect | Structural Health Monitoring (SHM) | Structural Dynamics |
|---|---|---|
| Definition | Continuous or periodic measurement and analysis of a structure's condition to detect damage or deterioration in real-time or over time. | Study of how structures respond to loads that change with time, including vibrations, shocks, and seismic effects. |
| Main Purpose | Ensure structural safety, optimize maintenance, and extend service life by identifying damage early. | Analyze and predict dynamic behavior of structures under transient or oscillatory loads to improve design and resilience. |
| Methods and Tools | Sensor networks (accelerometers, strain gauges), data acquisition systems, signal processing, damage detection algorithms. | Mathematical modeling (finite element analysis), modal analysis, time-history analysis, frequency response functions. |
| Applications | Bridges, buildings, aircraft, wind turbines, pipelines for real-time structural integrity assessment. | Earthquake engineering, vibration control in aerospace, automotive suspension design, structural response to dynamic loads. |
| Output | Health status reports, alerts on damage detection, maintenance recommendations. | Dynamic response characteristics such as natural frequencies, mode shapes, damping ratios. |
| Discipline Focus | Condition monitoring, data analytics, and preventive maintenance in civil and mechanical engineering. | Dynamic response analysis, structural modeling, and vibration control in structural and mechanical engineering. |
| Data Emphasis | Long-term operational data for detecting changes or anomalies signaling damage. | Simulated or measured response data under transient dynamic loads for design validation. |
Real-time Monitoring
Real-time monitoring in engineering involves the continuous collection and analysis of data from sensors and equipment to ensure optimal performance and safety. This process integrates Internet of Things (IoT) devices, machine learning algorithms, and advanced analytics to detect anomalies and predict failures. Industries such as manufacturing, civil engineering, and energy heavily rely on real-time monitoring to minimize downtime and improve operational efficiency. State-of-the-art platforms like SCADA and digital twins enhance decision-making by providing accurate, up-to-date status reports.
Damage Detection
Damage detection in engineering employs advanced techniques such as vibration analysis, ultrasonic testing, and infrared thermography to identify structural defects early. Recent studies highlight the effectiveness of machine learning algorithms in processing sensor data to enhance fault diagnosis accuracy. Structural health monitoring systems integrate real-time data acquisition with predictive analytics to prevent catastrophic failures in bridges, aircraft, and industrial machinery. Industry standards like ASTM E1820 guide the evaluation of material degradation and crack propagation using non-destructive testing methods.
Vibration Analysis
Vibration analysis plays a critical role in engineering by monitoring the dynamic behavior of machines and structures to detect imbalances, misalignments, and mechanical faults. Techniques such as Fast Fourier Transform (FFT) and modal analysis are employed to analyze frequency spectra, enabling early identification of issues in rotating equipment like turbines, pumps, and compressors. Implementing vibration sensors and predictive maintenance software improves operational reliability and reduces downtime in industries including aerospace, automotive, and manufacturing. Real-time vibration monitoring systems enhance safety and optimize performance by preventing catastrophic failures and extending machinery lifespan.
Life-Cycle Assessment
Life-Cycle Assessment (LCA) in engineering systematically evaluates the environmental impacts of products, processes, or systems from raw material extraction to disposal. This methodology quantifies energy consumption, greenhouse gas emissions, water usage, and waste generation throughout the entire life cycle. Engineers apply LCA to improve design efficiency, promote sustainable material selection, and minimize ecological footprints in manufacturing and construction projects. The ISO 14040 series provides standardized guidelines ensuring consistent and reliable LCA practices across engineering disciplines.
Predictive Maintenance
Predictive maintenance in engineering utilizes advanced data analytics and machine learning to monitor equipment health and forecast potential failures. Sensor data from machinery such as turbines, pumps, and conveyor belts enables the detection of anomalies and wear patterns before breakdowns occur. Industries like aerospace, automotive, and manufacturing implement predictive maintenance to reduce downtime, lower repair costs, and extend asset lifespans. Key technologies driving this approach include IoT devices, vibration analysis, thermal imaging, and cloud-based predictive algorithms.
Source and External Links
Different Types of SHM: Which one to Choose? - Structural Health Monitoring (SHM) can be divided into static and dynamic analysis, where static SHM measures slow-varying parameters over long periods (e.g., inclination, static displacement), and dynamic SHM captures fast-changing loads involving vibration and frequencies (e.g., wind, traffic, earthquakes) with continuous sampling before, during, and after peak events.
Structural health monitoring - SHM involves observing and analyzing the structural system over time using response measurements to monitor changes in material and geometry, often incorporating dynamic responses like vibration amplitudes and frequencies to detect damage.
Structural Health Monitoring (SHM) - Structural dynamics focuses on global structural responses to damage detected through vibration-based methods, while structural health monitoring combines local sensitive methods (like ultrasonic waves) with global dynamic responses to identify and quantify damage robustly.
FAQs
What is Structural Health Monitoring?
Structural Health Monitoring (SHM) is the process of using sensors and data analysis to continuously assess the integrity, safety, and performance of infrastructure such as bridges, buildings, and aircraft.
What is Structural Dynamics?
Structural Dynamics is the study of how structures respond to loads that vary with time, including vibrations, shocks, and seismic forces, to predict and improve their dynamic behavior and safety.
How do Structural Health Monitoring and Structural Dynamics differ?
Structural Health Monitoring focuses on the continuous assessment of a structure's condition through sensor data to detect damage or degradation, while Structural Dynamics studies the behavior of structures under dynamic loads such as vibrations, impacts, and seismic forces.
What technologies are used in Structural Health Monitoring?
Structural Health Monitoring technologies include fiber optic sensors, wireless sensor networks, accelerometers, strain gauges, ultrasonic testing, acoustic emission sensors, and vibration analysis systems.
What role does Structural Dynamics play in engineering?
Structural Dynamics analyzes the behavior of structures under dynamic loads such as earthquakes, wind, and vibrations, ensuring safety, stability, and performance in engineering design.
Why is Structural Health Monitoring important for safety?
Structural Health Monitoring detects and evaluates damage in real-time, preventing catastrophic failures and ensuring the safety of infrastructure and occupants.
How does Structural Dynamics influence structural design?
Structural Dynamics influences structural design by determining how structures respond to dynamic loads such as earthquakes, wind, and vibrations, ensuring safety, stability, and performance through accurate analysis and appropriate material selection.
