Shielded Metal Arc Welding (SMAW) utilizes a consumable electrode coated in flux to provide both filler material and shielding gas during the welding process, making it versatile for construction and maintenance. Gas Tungsten Arc Welding (GTAW), also known as TIG welding, employs a non-consumable tungsten electrode and inert gas, typically argon, to produce high-precision, clean welds ideal for aerospace and automotive industries. Explore the detailed comparison to understand the strengths, applications, and equipment requirements of each welding technique.
Main Difference
Shielded Metal Arc Welding (SMAW) uses a consumable electrode coated with flux that generates a shielding gas and slag, protecting the weld area from contamination, making it ideal for outdoor and heavy-duty applications. Gas Tungsten Arc Welding (GTAW), also known as Tungsten Inert Gas (TIG) welding, employs a non-consumable tungsten electrode and an external inert gas shield, providing superior control and higher quality, precise welds on thinner or more delicate materials. SMAW is generally more versatile and cost-effective for thicker metals, while GTAW excels in producing clean, high-quality welds with minimal post-weld cleanup. The choice between SMAW and GTAW depends on factors like material type, thickness, required weld quality, and environmental conditions.
Connection
Shielded Metal Arc Welding (SMAW) and Gas Tungsten Arc Welding (GTAW) both utilize an electric arc to generate heat for joining metals, ensuring strong welds. SMAW employs a consumable electrode coated with flux, providing shielding gas upon decomposition, whereas GTAW uses a non-consumable tungsten electrode with an external inert gas supply for protection. Both processes are essential in metal fabrication, offering versatility across various materials and thicknesses, with GTAW favored for precision and SMAW for robust outdoor applications.

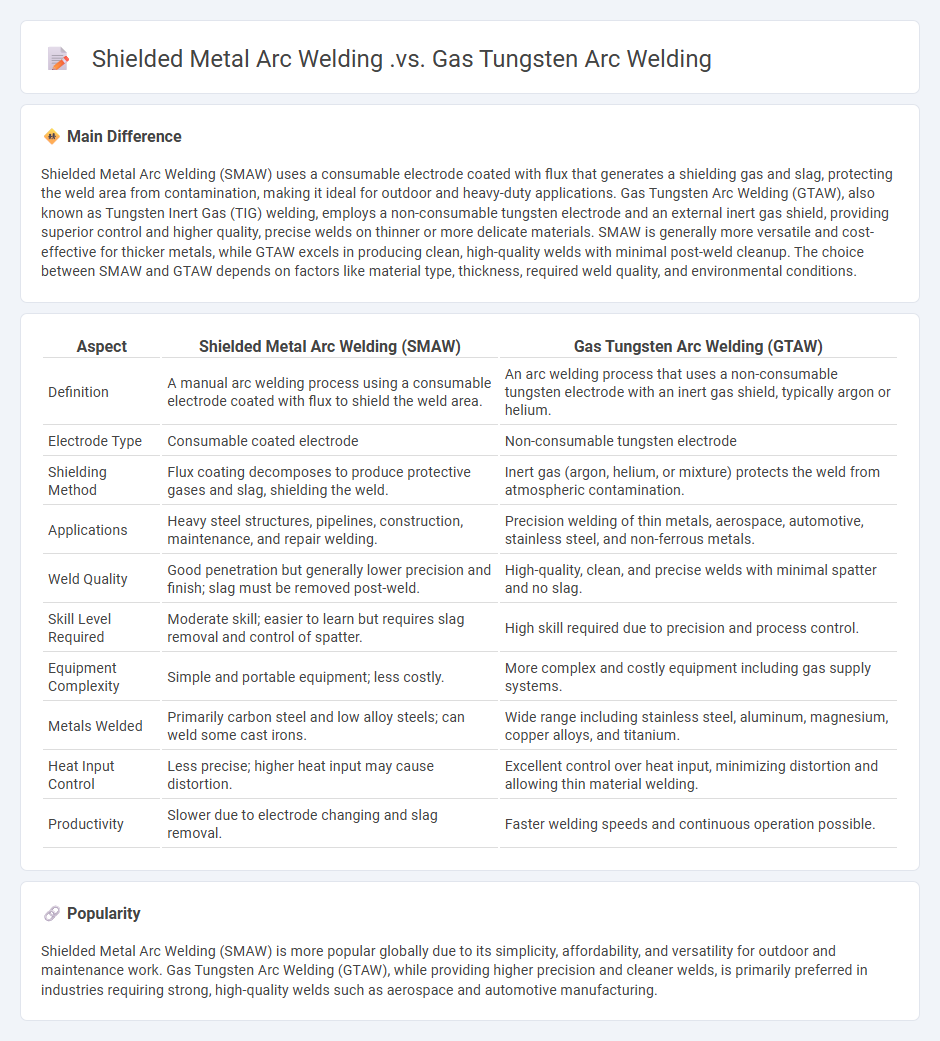

Comparison Table
| Aspect | Shielded Metal Arc Welding (SMAW) | Gas Tungsten Arc Welding (GTAW) |
|---|---|---|
| Definition | A manual arc welding process using a consumable electrode coated with flux to shield the weld area. | An arc welding process that uses a non-consumable tungsten electrode with an inert gas shield, typically argon or helium. |
| Electrode Type | Consumable coated electrode | Non-consumable tungsten electrode |
| Shielding Method | Flux coating decomposes to produce protective gases and slag, shielding the weld. | Inert gas (argon, helium, or mixture) protects the weld from atmospheric contamination. |
| Applications | Heavy steel structures, pipelines, construction, maintenance, and repair welding. | Precision welding of thin metals, aerospace, automotive, stainless steel, and non-ferrous metals. |
| Weld Quality | Good penetration but generally lower precision and finish; slag must be removed post-weld. | High-quality, clean, and precise welds with minimal spatter and no slag. |
| Skill Level Required | Moderate skill; easier to learn but requires slag removal and control of spatter. | High skill required due to precision and process control. |
| Equipment Complexity | Simple and portable equipment; less costly. | More complex and costly equipment including gas supply systems. |
| Metals Welded | Primarily carbon steel and low alloy steels; can weld some cast irons. | Wide range including stainless steel, aluminum, magnesium, copper alloys, and titanium. |
| Heat Input Control | Less precise; higher heat input may cause distortion. | Excellent control over heat input, minimizing distortion and allowing thin material welding. |
| Productivity | Slower due to electrode changing and slag removal. | Faster welding speeds and continuous operation possible. |
