The Jominy End-Quench Test measures hardenability, evaluating how steel hardens at varying distances from the quenched end, while the Brinell Hardness Test assesses surface hardness by indenting materials with a steel or carbide ball under a specific load. Jominy tests provide detailed hardenability curves essential in heat treatment processes, whereas Brinell tests offer quantitative hardness values critical for material strength assessment. Explore the differences and applications of these tests to optimize material selection and heat treatment.
Main Difference
The Jominy End-Quench Test measures the hardenability of steel by analyzing the hardness gradient from a quenched end, providing insight into the material's ability to harden at different depths. The Brinell Hardness Test quantifies surface hardness using a steel or carbide ball indenter pressed into the material under a specific load, yielding a Brinell Hardness Number (BHN) indicative of resistance to deformation. Jominy test results help in predicting microstructure transformations during cooling, while Brinell hardness focuses on surface wear resistance. Both tests are critical in material selection but serve distinct roles in assessing steel properties.
Connection
The Jominy End-Quench Test measures the hardenability of steel by evaluating its ability to harden in depth after quenching, providing a hardness gradient along the specimen. The Brinell Hardness Test quantifies the hardness of a material's surface by measuring indentation from a hardened steel or carbide ball under a specific load. The connection lies in using Brinell hardness measurements on Jominy end-quenched samples to analyze variation in hardness and assess steel hardenability across different distances from the quenched end.

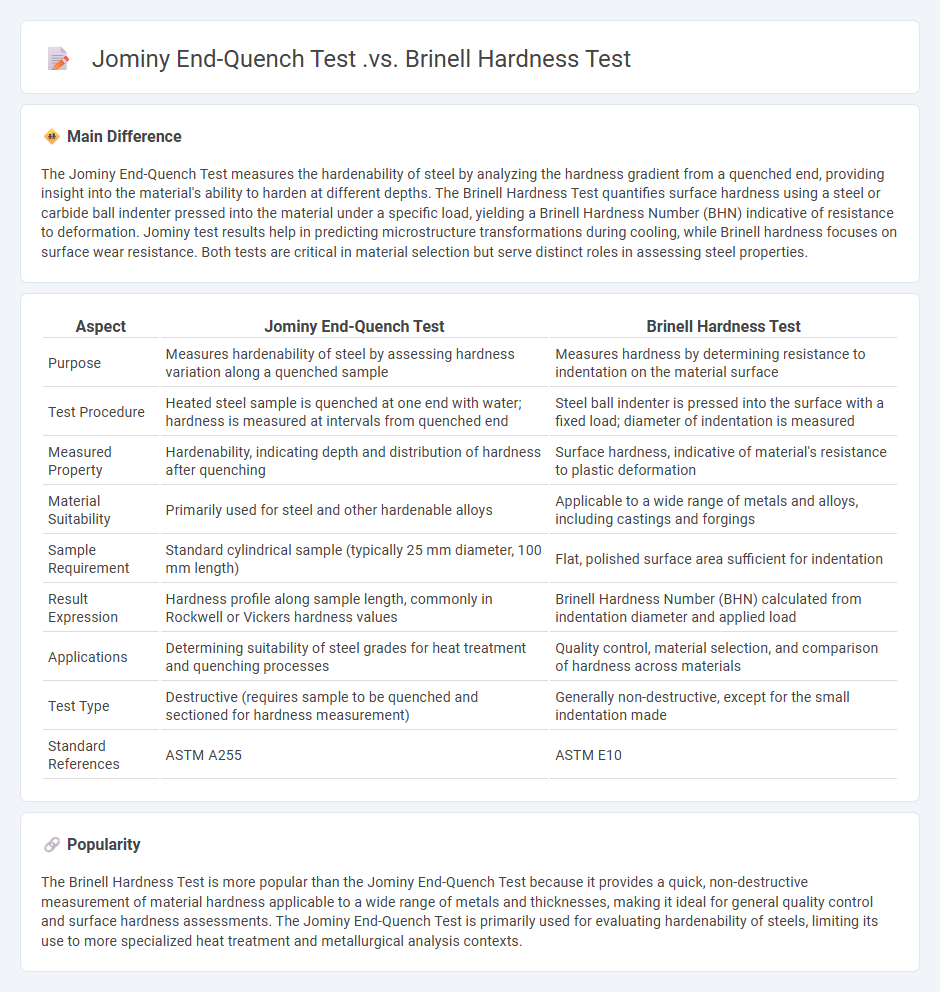

Comparison Table
| Aspect | Jominy End-Quench Test | Brinell Hardness Test |
|---|---|---|
| Purpose | Measures hardenability of steel by assessing hardness variation along a quenched sample | Measures hardness by determining resistance to indentation on the material surface |
| Test Procedure | Heated steel sample is quenched at one end with water; hardness is measured at intervals from quenched end | Steel ball indenter is pressed into the surface with a fixed load; diameter of indentation is measured |
| Measured Property | Hardenability, indicating depth and distribution of hardness after quenching | Surface hardness, indicative of material's resistance to plastic deformation |
| Material Suitability | Primarily used for steel and other hardenable alloys | Applicable to a wide range of metals and alloys, including castings and forgings |
| Sample Requirement | Standard cylindrical sample (typically 25 mm diameter, 100 mm length) | Flat, polished surface area sufficient for indentation |
| Result Expression | Hardness profile along sample length, commonly in Rockwell or Vickers hardness values | Brinell Hardness Number (BHN) calculated from indentation diameter and applied load |
| Applications | Determining suitability of steel grades for heat treatment and quenching processes | Quality control, material selection, and comparison of hardness across materials |
| Test Type | Destructive (requires sample to be quenched and sectioned for hardness measurement) | Generally non-destructive, except for the small indentation made |
| Standard References | ASTM A255 | ASTM E10 |
Hardness Measurement
Hardness measurement in engineering evaluates a material's resistance to deformation, abrasion, or indentation, providing critical insights into wear resistance and durability. Common methods include the Rockwell, Brinell, and Vickers tests, each standardized by ASTM and ISO for accuracy and consistency. Hardness values inform material selection and quality control in industries such as aerospace, automotive, and manufacturing. Precise hardness testing ensures components meet specifications for performance and safety under operational stresses.
Hardenability Assessment
Hardenability assessment evaluates the capacity of steel to harden through heat treatment, primarily by measuring the depth and distribution of hardness after quenching. This process is critical in engineering applications to ensure components achieve desired mechanical properties such as tensile strength and wear resistance. Methods like the Jominy end-quench test produce hardness profiles that guide alloy design and heat-treatment parameters. Understanding hardenability enables engineers to predict performance and optimize manufacturing for structural and automotive parts.
Indentation Testing
Indentation testing is a critical method in engineering for assessing the mechanical properties of materials, including hardness, elastic modulus, and fracture toughness. This technique involves pressing an indenter with a specific geometry and load into the material's surface to record the deformation response. Common indenters used include Vickers, Berkovich, and spherical tips, each suitable for different scales and material types. Indentation testing provides valuable data for material characterization, quality control, and failure analysis in sectors such as aerospace, automotive, and metallurgical engineering.
Heat Treatment Evaluation
Heat treatment in engineering involves controlled heating and cooling processes to alter the microstructure of metals, enhancing properties like hardness, strength, and ductility. Evaluating heat treatment effectiveness requires metallographic analysis, hardness testing methods such as Rockwell or Vickers, and microstructural examination using optical or electron microscopy. Precise temperature control and cycle duration influence phase transformations critical to achieving desired mechanical properties. Standards like ASTM A255 guide testing procedures to ensure consistency and reliability in heat treatment outcomes.
Material Property Comparison
Material property comparison in engineering focuses on key attributes such as tensile strength, hardness, thermal conductivity, and corrosion resistance to determine suitability for specific applications. Metals like steel exhibit high tensile strength and excellent durability, making them ideal for structural components, while polymers often offer superior chemical resistance and flexibility. Composite materials combine the advantages of different constituents, providing enhanced performance in aerospace and automotive industries. Engineers utilize databases like MatWeb and ASTM standards to perform accurate property comparisons for informed material selection.
Source and External Links
Jominy End-Quench Test - Measures the hardenability of steel by assessing its ability to form martensite throughout different cooling rates along a sample length.
Brinell Hardness Test - Assesses the hardness of a material by applying a known load through a sphere, measuring the resulting indentation.
Jominy End-Quench vs Brinell - Jominy measures hardenability (ability to harden in depth) while Brinell measures hardness (resistance to deformation), serving different purposes in material testing.
FAQs
What is the Jominy end-quench test?
The Jominy end-quench test measures a steel alloy's hardenability by cooling one end of a heated cylindrical sample with water and evaluating the resulting hardness gradient along its length.
What is the Brinell hardness test?
The Brinell hardness test measures a material's hardness by pressing a 10mm steel or tungsten carbide ball into the surface under a specific load and calculating hardness based on the indentation diameter.
How do the test procedures differ?
Test procedures differ in setup, execution steps, measurement criteria, and evaluation methods.
What materials are suitable for each test?
Metals like steel and aluminum are suitable for tensile and hardness tests; ceramics and glasses are ideal for fracture toughness and brittleness tests; polymers fit well for tensile, compression, and impact tests; composites are tested for tensile, compression, and shear properties.
What information does each test provide?
Each test provides specific information: blood tests reveal biochemical markers and health conditions, imaging tests offer visual insights into internal structures, genetic tests identify DNA mutations and hereditary risks, and psychological tests assess cognitive and emotional states.
What are the limitations of each test?
The limitations of each test include accuracy constraints, sample size dependency, sensitivity to outliers, assumptions about data distribution, potential biases, and scope of applicability specific to the test type.
When should you use the Jominy test instead of Brinell hardness testing?
Use the Jominy test to measure hardenability of steel by assessing hardness variation from a quenched end, whereas use Brinell hardness testing for determining overall surface hardness of materials.
