Signal-to-noise ratio (SNR) measures the clarity of a signal by comparing its power to the background noise, expressed in decibels (dB). Distortion factor quantifies the extent to which a signal deviates from its original form due to nonlinearities or other alterations during transmission or processing. Explore more to understand how optimizing SNR and minimizing distortion factor impact audio and communication system performance.
Main Difference
Signal-to-noise ratio (SNR) quantifies the level of desired signal relative to background noise, typically measured in decibels (dB), and higher values indicate clearer signals in audio, communication, and imaging systems. Distortion factor, often expressed as total harmonic distortion (THD) percentage, measures the extent of signal alteration caused by nonlinearities and unwanted harmonic components introduced by devices like amplifiers. While SNR focuses on signal clarity against random noise, distortion factor evaluates the fidelity and purity of the signal waveform itself. Engineers use SNR to optimize signal clarity and distortion factor to ensure accurate signal reproduction without waveform degradation.
Connection
Signal-to-noise ratio (SNR) measures the level of a desired signal relative to background noise, indicating the clarity of the signal. Distortion factor quantifies the alteration of the original signal waveform, often caused by nonlinearities or interference. A higher distortion factor generally reduces the effective SNR by introducing unwanted signal components that degrade overall signal quality.
Comparison Table

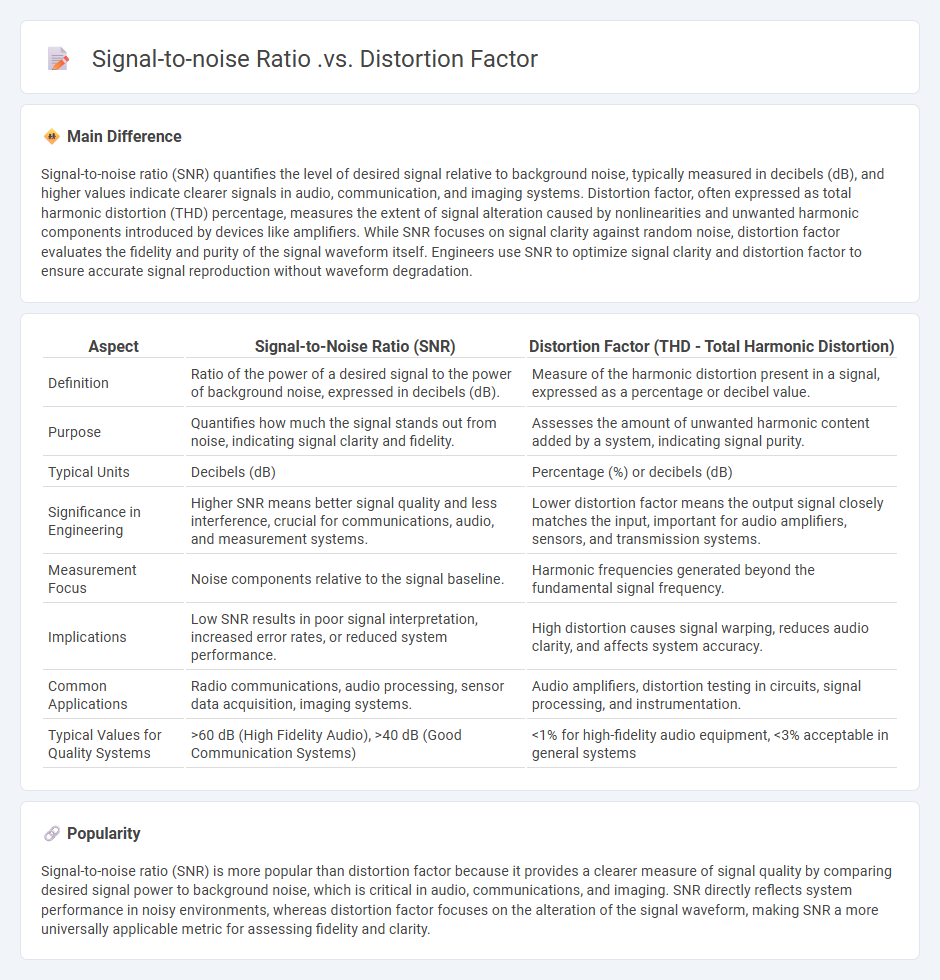

| Aspect | Signal-to-Noise Ratio (SNR) | Distortion Factor (THD - Total Harmonic Distortion) |
|---|---|---|
| Definition | Ratio of the power of a desired signal to the power of background noise, expressed in decibels (dB). | Measure of the harmonic distortion present in a signal, expressed as a percentage or decibel value. |
| Purpose | Quantifies how much the signal stands out from noise, indicating signal clarity and fidelity. | Assesses the amount of unwanted harmonic content added by a system, indicating signal purity. |
| Typical Units | Decibels (dB) | Percentage (%) or decibels (dB) |
| Significance in Engineering | Higher SNR means better signal quality and less interference, crucial for communications, audio, and measurement systems. | Lower distortion factor means the output signal closely matches the input, important for audio amplifiers, sensors, and transmission systems. |
| Measurement Focus | Noise components relative to the signal baseline. | Harmonic frequencies generated beyond the fundamental signal frequency. |
| Implications | Low SNR results in poor signal interpretation, increased error rates, or reduced system performance. | High distortion causes signal warping, reduces audio clarity, and affects system accuracy. |
| Common Applications | Radio communications, audio processing, sensor data acquisition, imaging systems. | Audio amplifiers, distortion testing in circuits, signal processing, and instrumentation. |
| Typical Values for Quality Systems | >60 dB (High Fidelity Audio), >40 dB (Good Communication Systems) | <1% for high-fidelity audio equipment, <3% acceptable in general systems |
Signal-to-Noise Ratio (SNR)
Signal-to-Noise Ratio (SNR) quantifies the level of a desired signal relative to the background noise, measured in decibels (dB). Higher SNR values indicate clearer and more reliable signal transmission, essential in fields like telecommunications, audio engineering, and data communications. Calculations involve dividing the power of the signal by the power of the noise, often expressed as SNR = 10 log10(P_signal / P_noise). Optimizing SNR directly improves system performance, reducing error rates and enhancing data integrity in various engineering applications.
Distortion Factor
Distortion factor in engineering refers to a measure of waveform deformation in electrical signals, commonly used to evaluate the quality of power systems and audio equipment. It quantifies the deviation from a pure sine wave, expressed as a percentage of total harmonic distortion (THD). Lower distortion factors indicate higher signal fidelity, crucial in power distribution, telecommunications, and signal processing applications. Accurate assessment of distortion factor helps prevent equipment malfunction and ensures compliance with industry standards such as IEEE 519.
Audio Quality
Audio quality in engineering is determined by parameters such as frequency response, signal-to-noise ratio, total harmonic distortion, and dynamic range. High-fidelity audio systems aim to reproduce sound accurately, maintaining clarity and detail across the audible spectrum from 20 Hz to 20 kHz. Techniques like digital signal processing (DSP) optimize audio performance by minimizing distortion and enhancing spatial effects. Industry standards like AES67 ensure interoperability and consistent audio quality in professional audio engineering environments.
Harmonic Distortion
Harmonic distortion occurs when unwanted frequencies at multiples of the original signal frequency are introduced into electrical systems, impacting power quality and signal integrity. It is a significant concern in power engineering, particularly in electrical distribution systems where non-linear loads such as variable frequency drives and electronic devices generate harmonic currents. Measuring total harmonic distortion (THD) provides a quantitative metric to assess the extent of distortion in voltage or current waveforms. Mitigation techniques include the use of passive and active filters, harmonic compensators, and proper system design to ensure compliance with IEEE Standard 519 for harmonic control.
Measurement Techniques
Measurement techniques in engineering encompass a variety of methods such as coordinate measuring machines (CMM), laser scanning, and ultrasonic testing to ensure precision and accuracy in product design and manufacturing. Advanced techniques like 3D metrology provide detailed spatial data, improving quality control and reducing errors in complex assemblies. Sensors and instrumentation, including strain gauges and thermocouples, are critical for monitoring physical parameters like stress, temperature, and pressure during testing phases. Integrating digital measurement tools with computer-aided design (CAD) systems enhances the efficiency and reliability of engineering processes.
Source and External Links
THD vs SINAD vs SNR: Key Differences Explained - Signal-to-noise ratio (SNR) measures the ratio of the fundamental signal amplitude to noise amplitude, while distortion factor (often measured as Total Harmonic Distortion or THD) quantifies harmonic distortion contributing to the unwanted signal components beyond noise alone.
SNDR - Wikipedia - Distortion factor corresponds with the distortion power part in Signal to Noise and Distortion Ratio (SINAD), which combines noise and distortion power in the denominator, unlike SNR which considers noise only; thus, distortion factor directly affects SINAD but not SNR.
Total Harmonic Distortion vs. THD+N - Audio Precision - Distortion factor is often measured as THD+N (total harmonic distortion plus noise), representing harmonic deviation plus noise components, whereas SNR isolates noise level relative to the signal, making distortion factor a complementary but distinct measure from signal-to-noise ratio.
FAQs
What is signal-to-noise ratio?
Signal-to-noise ratio (SNR) is the measure of signal strength relative to background noise, expressed as a ratio or in decibels (dB), indicating the clarity or quality of the received signal.
What is distortion factor?
Distortion factor quantifies the degree of waveform distortion in an electrical signal, defined as the ratio of the root mean square (RMS) value of the harmonics to the RMS value of the fundamental frequency.
How do signal-to-noise ratio and distortion factor differ?
Signal-to-noise ratio (SNR) measures the power ratio between the desired signal and background noise, indicating signal clarity, while distortion factor quantifies the alteration or deformation of the original signal waveform, reflecting signal fidelity.
What affects the signal-to-noise ratio in a system?
Signal-to-noise ratio (SNR) is affected by factors including source signal power, noise power level, system bandwidth, quality of components (like amplifiers and sensors), interference, and environmental conditions.
How can distortion factor impact audio quality?
Distortion factor increases unwanted alterations in sound waves, reducing audio clarity and fidelity by introducing noise and harmonic inaccuracies.
How are signal-to-noise ratio and distortion factor measured?
Signal-to-noise ratio (SNR) is measured by comparing the power of the desired signal to the power of background noise, typically using a spectrum analyzer or audio analyzer, expressed in decibels (dB). Distortion factor, also known as total harmonic distortion (THD), is measured by applying a pure sine wave input to a device and analyzing the output spectrum to quantify harmonics relative to the fundamental frequency, also expressed as a percentage or in decibels.
Why are both signal-to-noise ratio and distortion factor important in electronics?
Signal-to-noise ratio ensures clear signal quality by minimizing background noise, while distortion factor measures signal integrity by quantifying waveform alterations; both metrics are crucial for optimizing electronic device performance.
