Superheterodyne receivers use frequency mixing to convert a received signal to a fixed intermediate frequency (IF) for easier processing, providing better selectivity and sensitivity. Direct conversion receivers, also known as zero-IF receivers, convert the RF signal directly to baseband without an intermediate frequency, simplifying the design and reducing component count. Explore the detailed comparison to understand their operational differences and application advantages.
Main Difference
The main difference between a Superheterodyne Receiver and a Direct Conversion Receiver lies in their signal processing approach. A Superheterodyne Receiver mixes the incoming RF signal with a local oscillator to produce an intermediate frequency (IF) for easier filtering and amplification, enhancing selectivity and sensitivity. In contrast, a Direct Conversion Receiver directly converts the RF signal to baseband without an intermediate frequency, simplifying the design but often facing challenges like DC offset and local oscillator leakage. Superheterodyne designs remain prevalent in applications requiring high performance and robust interference rejection, whereas Direct Conversion is favored for compact, low-power implementations.
Connection
Superheterodyne receivers and direct conversion receivers both serve to process radio frequency signals but use different methods for frequency conversion. Superheterodyne receivers convert the incoming RF signal to an intermediate frequency (IF) before demodulation, improving selectivity and sensitivity. Direct conversion receivers, also known as zero-IF receivers, convert the RF signal directly to baseband, simplifying the design but often requiring advanced filtering and signal processing to handle issues like DC offset and I/Q imbalance.
Comparison Table

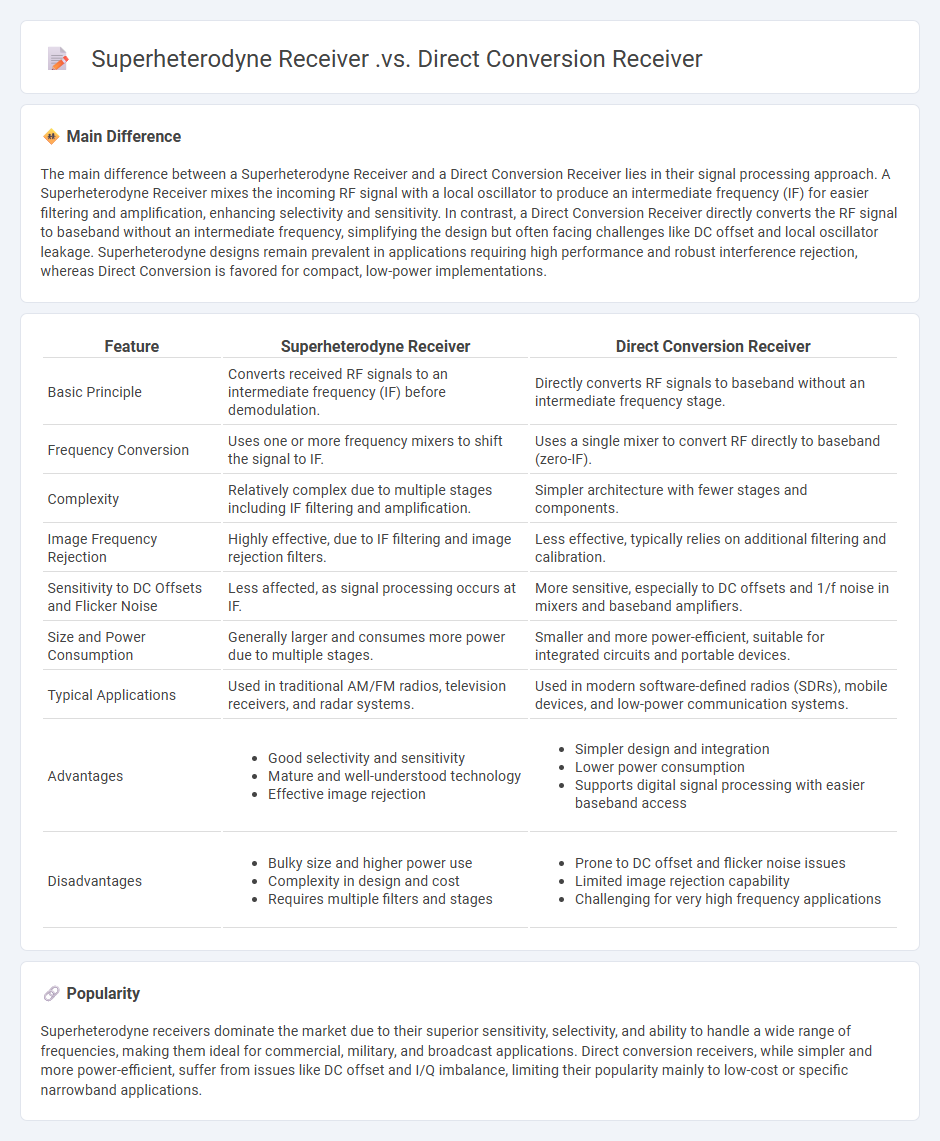

| Feature | Superheterodyne Receiver | Direct Conversion Receiver |
|---|---|---|
| Basic Principle | Converts received RF signals to an intermediate frequency (IF) before demodulation. | Directly converts RF signals to baseband without an intermediate frequency stage. |
| Frequency Conversion | Uses one or more frequency mixers to shift the signal to IF. | Uses a single mixer to convert RF directly to baseband (zero-IF). |
| Complexity | Relatively complex due to multiple stages including IF filtering and amplification. | Simpler architecture with fewer stages and components. |
| Image Frequency Rejection | Highly effective, due to IF filtering and image rejection filters. | Less effective, typically relies on additional filtering and calibration. |
| Sensitivity to DC Offsets and Flicker Noise | Less affected, as signal processing occurs at IF. | More sensitive, especially to DC offsets and 1/f noise in mixers and baseband amplifiers. |
| Size and Power Consumption | Generally larger and consumes more power due to multiple stages. | Smaller and more power-efficient, suitable for integrated circuits and portable devices. |
| Typical Applications | Used in traditional AM/FM radios, television receivers, and radar systems. | Used in modern software-defined radios (SDRs), mobile devices, and low-power communication systems. |
| Advantages |
|
|
| Disadvantages |
|
|
Frequency Translation
Frequency translation in engineering involves shifting the frequency of a signal to another frequency band, commonly used in radio communication systems to facilitate signal processing and transmission. This process employs mixers and local oscillators to convert signals between baseband, intermediate frequency (IF), and radio frequency (RF) ranges. Frequency translation enhances signal clarity, reduces interference, and enables efficient modulation and demodulation in wireless networks and radar technologies. Accurate frequency conversion is critical in applications such as software-defined radios (SDR), satellite communications, and radar signal processing.
Local Oscillator
A Local Oscillator (LO) is a critical component in radio frequency (RF) engineering, providing a stable sinusoidal signal used for frequency conversion in mixers. Its frequency accuracy and phase noise directly impact the performance of communication receivers and transmitters. Modern LOs often utilize phase-locked loop (PLL) technology to maintain signal stability across varying environmental conditions. Precise local oscillators enable efficient signal demodulation and spectrum analysis in applications ranging from radar systems to wireless communication devices.
Intermediate Frequency (IF)
Intermediate Frequency (IF) is a key stage in superheterodyne receivers used in communication engineering, where received signals are converted from radio frequency (RF) to a fixed frequency for easier processing. Typical IF values range from 10.7 MHz in FM radios to 455 kHz in AM radios, optimizing selectivity and sensitivity of the device. IF stages enable improved filtering and signal amplification while minimizing noise and interference, essential for accurate signal demodulation. Modern IF systems often incorporate digital signal processing to enhance performance in wireless communication and radar applications.
Image Rejection
Image rejection in engineering refers to the ability of a receiver or signal processing system to suppress unwanted image frequencies that can interfere with the desired signal. It is a critical parameter in radio frequency (RF) and communication systems to enhance signal clarity and reduce noise. High image rejection ratios are achieved using filters, mixers, and carefully designed local oscillators to prevent image signals from degrading performance. Typical image rejection values in modern superheterodyne receivers exceed 60 dB, ensuring effective suppression of image interference.
Demodulation Method
Demodulation methods extract the original information signal from a modulated carrier wave in communication systems. Common techniques include amplitude demodulation for AM signals, frequency demodulation for FM signals, and phase demodulation for PM signals. Digital demodulation methods such as Quadrature Amplitude Modulation (QAM) and Phase Shift Keying (PSK) are essential in modern telecommunications. Efficient demodulation directly impacts signal integrity and overall system performance in engineering applications.
