Dielectrics are insulating materials that resist the flow of electric current by storing electrical energy in an electric field, whereas conductors allow free movement of electric charges, facilitating efficient current flow. The dielectric constant and electrical conductivity are key parameters distinguishing these two types of materials, impacting their applications in capacitors, insulators, and electrical wiring. Explore the fundamental differences between dielectrics and conductors to enhance your understanding of their roles in electrical and electronic systems.

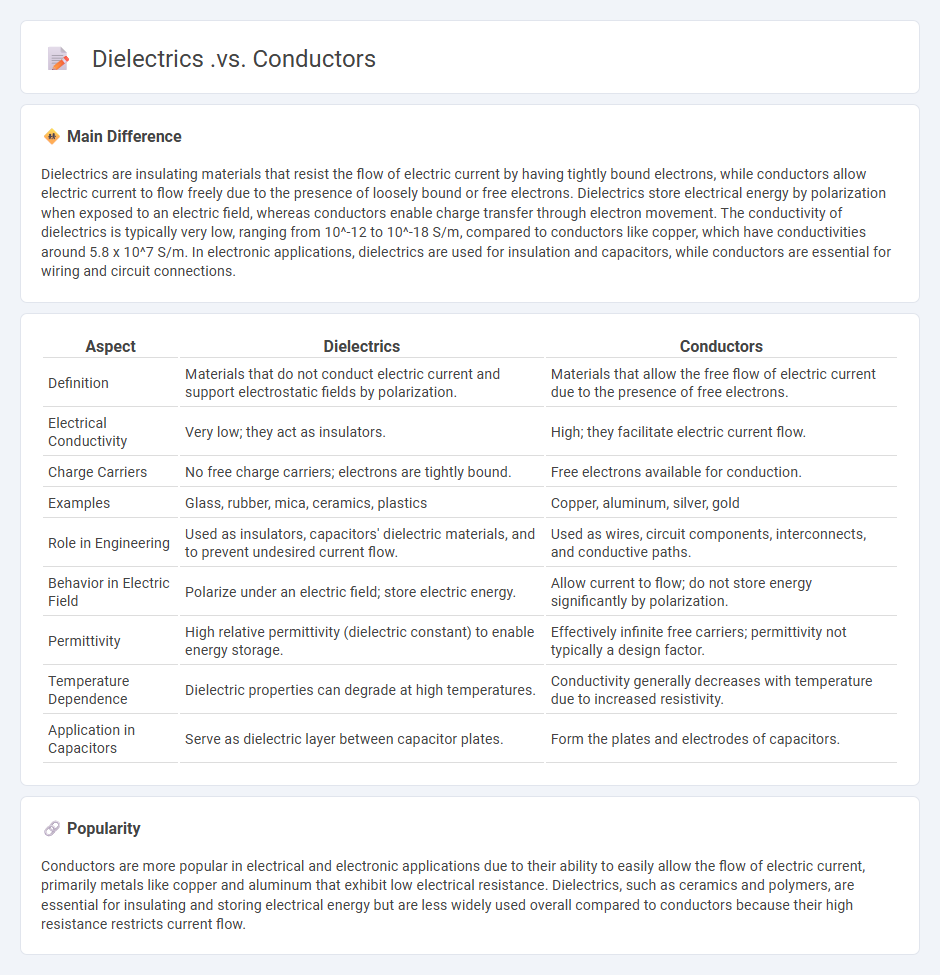

Main Difference
Dielectrics are insulating materials that resist the flow of electric current by having tightly bound electrons, while conductors allow electric current to flow freely due to the presence of loosely bound or free electrons. Dielectrics store electrical energy by polarization when exposed to an electric field, whereas conductors enable charge transfer through electron movement. The conductivity of dielectrics is typically very low, ranging from 10^-12 to 10^-18 S/m, compared to conductors like copper, which have conductivities around 5.8 x 10^7 S/m. In electronic applications, dielectrics are used for insulation and capacitors, while conductors are essential for wiring and circuit connections.
Connection
Dielectrics and conductors are connected through their interaction with electric fields; dielectrics act as insulators that store electrical energy by polarizing in response to an electric field, while conductors allow free movement of electric charges, enabling current flow. In capacitors, dielectrics are placed between conductive plates to increase capacitance by reducing the effective electric field and preventing charge leakage. This relationship is fundamental in electronics, affecting the design and functionality of sensors, capacitors, and insulation materials.
Comparison Table
| Aspect | Dielectrics | Conductors |
|---|---|---|
| Definition | Materials that do not conduct electric current and support electrostatic fields by polarization. | Materials that allow the free flow of electric current due to the presence of free electrons. |
| Electrical Conductivity | Very low; they act as insulators. | High; they facilitate electric current flow. |
| Charge Carriers | No free charge carriers; electrons are tightly bound. | Free electrons available for conduction. |
| Examples | Glass, rubber, mica, ceramics, plastics | Copper, aluminum, silver, gold |
| Role in Engineering | Used as insulators, capacitors' dielectric materials, and to prevent undesired current flow. | Used as wires, circuit components, interconnects, and conductive paths. |
| Behavior in Electric Field | Polarize under an electric field; store electric energy. | Allow current to flow; do not store energy significantly by polarization. |
| Permittivity | High relative permittivity (dielectric constant) to enable energy storage. | Effectively infinite free carriers; permittivity not typically a design factor. |
| Temperature Dependence | Dielectric properties can degrade at high temperatures. | Conductivity generally decreases with temperature due to increased resistivity. |
| Application in Capacitors | Serve as dielectric layer between capacitor plates. | Form the plates and electrodes of capacitors. |
Electrical conductivity
Electrical conductivity measures a material's ability to conduct electric current, expressed in siemens per meter (S/m). Metals such as copper (5.96 x 10^7 S/m) and silver (6.30 x 10^7 S/m) exhibit high conductivity, making them ideal for electrical wiring and components. In engineering applications, conductivity influences the design of circuits, electromagnetic devices, and thermal management systems. Accurate assessment of electrical conductivity ensures optimal performance and energy efficiency in electronic and power engineering projects.
Permittivity
Permittivity is a fundamental property of materials that quantifies their ability to store electrical energy in an electric field, measured in farads per meter (F/m). In engineering, permittivity influences the capacitance of capacitors, dielectric strength, and signal propagation in cables and circuits. Materials with high permittivity, such as ceramics with relative permittivity values exceeding 1000, are commonly used in capacitors to increase energy storage efficiency. Accurate knowledge of permittivity is crucial for designing electronic components, antennas, and insulation systems in power engineering.
Insulation
Insulation in engineering refers to materials or methods used to reduce heat transfer, sound transmission, or electrical conductivity between different environments or components. Common thermal insulation materials include fiberglass, foam board, and mineral wool, which help improve energy efficiency in buildings and industrial processes. Electrical insulation involves non-conductive substances like rubber, glass, or plastic to prevent undesired current flow and enhance safety in circuits. Acoustic insulation employs materials such as cellulose or acoustic foam to minimize noise pollution in various applications.
Charge mobility
Charge mobility in engineering refers to the speed at which charge carriers, such as electrons or holes, move through a semiconductor material under the influence of an electric field. High charge mobility is critical for enhancing the performance of electronic devices, including transistors and integrated circuits, by improving conductivity and switching speeds. Silicon-based semiconductors typically exhibit electron mobilities around 1,400 cm2/V*s, while materials like gallium arsenide (GaAs) can reach mobilities exceeding 8,500 cm2/V*s, enabling faster electronic applications. Advances in two-dimensional materials like graphene show promise with mobilities surpassing 200,000 cm2/V*s under specific conditions, potentially revolutionizing nanoscale engineering.
Capacitor design
Capacitor design focuses on optimizing materials, geometry, and dielectric properties to achieve desired capacitance and voltage ratings. Engineers select dielectric materials like ceramic, tantalum, or electrolytic based on application requirements such as temperature stability and frequency response. Physical parameters such as plate area and separation distance directly influence capacitance, governed by the equation C = eA/d. Advanced design techniques incorporate modeling software to predict performance and reliability in electronic circuits.
Source and External Links
Dielectric vs. Conductor: Key Differences Explained - Dielectrics act as insulators with no free charge carriers, preventing current flow, while conductors have abundant free charges that allow easy current flow.
Dielectrics vs. Insulators - Both dielectrics and insulators block direct current, but dielectrics can allow alternating current to pass and are essential in capacitors for storing electrical energy, unlike regular insulators which block all current.
Dielectrics article - Dielectrics are materials that do not conduct electricity and are used to increase capacitance in capacitors by reducing the internal electric field through polarization.
FAQs
What are dielectrics and conductors?
Dielectrics are insulating materials that do not conduct electricity but can store electrical energy by polarization; conductors are materials that allow the free flow of electric charge due to the presence of free electrons.
How do dielectrics differ from conductors in terms of electrical properties?
Dielectrics are electrical insulators that resist electric current flow and store energy by polarization, while conductors allow free flow of electric current due to abundant free electrons.
What materials are commonly used as dielectrics and conductors?
Common dielectrics include glass, ceramics, mica, and polymers like polyethylene; typical conductors are copper, aluminum, silver, and gold.
How do electric fields behave in dielectrics versus conductors?
Electric fields penetrate dielectrics causing polarization and reduced internal field, while in conductors free charges rearrange to cancel internal electric fields, resulting in zero electric field inside.
What role do dielectrics play in capacitors compared to conductors?
Dielectrics in capacitors increase capacitance by storing electric energy through polarization without conducting current, unlike conductors that allow free charge flow but do not store energy.
Can both dielectrics and conductors be polarized by an electric field?
Dielectrics can be polarized by an electric field through the alignment of dipoles, whereas conductors exhibit charge redistribution rather than true polarization.
Why are conductors used for wiring while dielectrics are used for insulation?
Conductors like copper have low electrical resistance, allowing efficient current flow for wiring, while dielectrics such as rubber have high electrical resistance, preventing current leakage and providing effective insulation.
