Flux meters measure magnetic flux in webers to quantify the total magnetic field passing through a surface, essential for applications requiring precise flux evaluation. Gaussmeters assess magnetic flux density in gauss or tesla, providing localized measurements of magnetic field strength critical for material and device testing. Explore the distinctions and applications of flux meters and gaussmeters to understand their roles in magnetic field analysis.

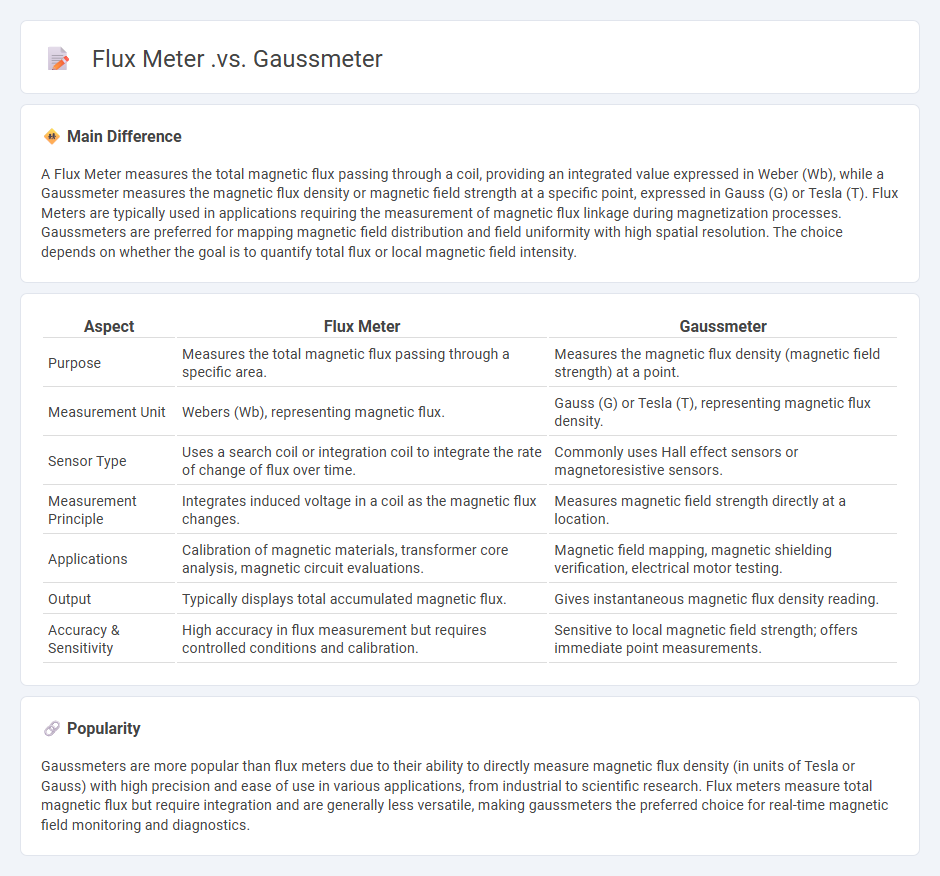

Main Difference
A Flux Meter measures the total magnetic flux passing through a coil, providing an integrated value expressed in Weber (Wb), while a Gaussmeter measures the magnetic flux density or magnetic field strength at a specific point, expressed in Gauss (G) or Tesla (T). Flux Meters are typically used in applications requiring the measurement of magnetic flux linkage during magnetization processes. Gaussmeters are preferred for mapping magnetic field distribution and field uniformity with high spatial resolution. The choice depends on whether the goal is to quantify total flux or local magnetic field intensity.
Connection
Flux meters and gaussmeters are connected through their shared purpose of measuring magnetic fields, with the flux meter quantifying the total magnetic flux through a coil and the gaussmeter measuring the magnetic field intensity or magnetic flux density at a point. In practical applications, a flux meter often uses a coil connected to it to capture magnetic flux, while a gaussmeter employs a Hall probe or a similar sensor to detect the local magnetic field strength. Integrating both instruments provides comprehensive magnetic field analysis by combining spatial flux distribution and point-specific field intensity measurements.
Comparison Table
| Aspect | Flux Meter | Gaussmeter |
|---|---|---|
| Purpose | Measures the total magnetic flux passing through a specific area. | Measures the magnetic flux density (magnetic field strength) at a point. |
| Measurement Unit | Webers (Wb), representing magnetic flux. | Gauss (G) or Tesla (T), representing magnetic flux density. |
| Sensor Type | Uses a search coil or integration coil to integrate the rate of change of flux over time. | Commonly uses Hall effect sensors or magnetoresistive sensors. |
| Measurement Principle | Integrates induced voltage in a coil as the magnetic flux changes. | Measures magnetic field strength directly at a location. |
| Applications | Calibration of magnetic materials, transformer core analysis, magnetic circuit evaluations. | Magnetic field mapping, magnetic shielding verification, electrical motor testing. |
| Output | Typically displays total accumulated magnetic flux. | Gives instantaneous magnetic flux density reading. |
| Accuracy & Sensitivity | High accuracy in flux measurement but requires controlled conditions and calibration. | Sensitive to local magnetic field strength; offers immediate point measurements. |
Measurement Principle
Measurement principle in engineering refers to the fundamental approach or method used to quantify physical quantities, such as length, temperature, pressure, or electrical signals. Common measurement principles include electrical resistance for temperature sensing with thermistors, capacitive sensing for displacement measurements, and piezoelectric effect for force or pressure detection. Accurate implementation of these principles relies on calibration standards, sensor precision, and environmental compensation to minimize errors. Understanding the appropriate measurement principle is crucial for designing reliable instrumentation and control systems in various engineering applications.
Magnetic Flux
Magnetic flux quantifies the total magnetic field passing through a specified area, measured in webers (Wb) within engineering contexts. Engineers utilize magnetic flux to analyze the performance of electromagnetic devices, such as transformers, inductors, and electric motors. Calculations rely on the integration of the magnetic field vector over the surface area, considering factors like permeability and coil configuration. Precise control of magnetic flux enhances energy efficiency and operational stability in electrical and electronic systems.
Magnetic Field Strength
Magnetic field strength, measured in amperes per meter (A/m), represents the intensity of the magnetic field generated by an electric current or magnetic material. It plays a crucial role in electrical engineering applications, including the design of transformers, electric motors, and inductors, where controlling magnetic flux density is essential. Engineers use magnetic field strength values to optimize magnetic circuits for maximum efficiency and minimal energy loss. Magnetic field strength directly influences electromagnetic force, inductance, and overall device performance.
Sensor Type
Sensor types in engineering encompass a wide range of devices designed to detect and measure physical properties such as temperature, pressure, humidity, motion, and light. Common sensors include thermocouples for temperature measurement, strain gauges for stress analysis, accelerometers for vibration monitoring, and photodiodes for light detection. These sensors convert physical phenomena into electrical signals that can be interpreted by control systems or data acquisition devices. Accurate sensor selection is crucial for system reliability, efficiency, and data precision across various engineering applications.
Application Scope
Application scope in engineering encompasses the range of projects, systems, and technologies where specific principles, methods, or tools are applied. It defines the boundaries for utilizing engineering disciplines such as civil, mechanical, electrical, or software engineering within industries like construction, manufacturing, energy, and information technology. Precise application scope ensures optimized resource allocation, risk management, and compliance with standards like ISO 9001 or ASME codes. Understanding this scope helps engineers deliver targeted solutions that meet technical specifications and stakeholder requirements efficiently.
Source and External Links
Fluxmeters - Gaussmeters by Hirst Magnetic Instruments - Fluxmeters measure the total magnetic flux in a volume contained within a coil (such as a Helmholtz coil), while gaussmeters measure the magnetic flux density at a specific point where the probe is located.
Flux Density Test (Gaussmeter) Total Flux Test (Fluxmeter) - Gaussmeters use Hall Effect probes to measure flux density (Gauss or Tesla) precisely at a surface point, whereas fluxmeters measure the total flux output of a magnet through a coil and are often used with Helmholtz coils to produce B-H or hysteresis curves.
Magnetometers: A Comprehensive Guide | GMW Associates - Gaussmeters (or teslameters) specifically measure magnetic field density in Gauss or Tesla units, typically for higher field strengths, while fluxmeters measure total magnetic flux, representing different aspects of magnetic field measurement.
FAQs
What is a flux meter?
A flux meter is an instrument used to measure magnetic flux in a magnetic circuit.
What is a gaussmeter?
A gaussmeter is an instrument that measures the strength and direction of magnetic fields, expressed in gauss (G) or tesla (T).
What is the main difference between a flux meter and a gaussmeter?
A flux meter measures the total magnetic flux linked with a coil, indicating the change in magnetic flux over time, while a gaussmeter directly measures the magnetic flux density or magnetic field strength at a specific point.
How does a flux meter measure magnetic fields?
A flux meter measures magnetic fields by detecting the change in magnetic flux through a coil, inducing a voltage proportional to the rate of change, which is integrated to quantify the total magnetic flux linked to the coil.
How does a gaussmeter measure magnetic fields?
A gaussmeter measures magnetic fields by detecting the Hall effect voltage generated when a magnetic field influences charge carriers in a sensor, allowing it to quantify the field strength in gauss or tesla.
What are the primary applications of flux meters and gaussmeters?
Flux meters primarily measure total magnetic flux in materials and magnetic circuits; gaussmeters measure magnetic field strength (magnetic flux density) in units of gauss or tesla for magnetic field mapping and equipment testing.
Which instrument is more accurate for measuring magnetic field strength?
A fluxgate magnetometer is more accurate for measuring magnetic field strength than a Hall effect sensor.
