Impulse turbines operate by converting kinetic energy from high-velocity jets of water striking the turbine blades, causing rotation with minimal pressure changes. Reaction turbines utilize both pressure and kinetic energy by allowing water to flow continuously over the blades, creating lift and rotation through changes in pressure and velocity. Explore the detailed working principles and applications of Both impulse and reaction turbines.
Main Difference
Impulse turbines convert the kinetic energy of a high-velocity jet of water striking the turbine blades, causing them to rotate without a pressure change within the runner. Reaction turbines operate based on both pressure and velocity changes as water flows over blades, generating thrust due to the reaction force. Impulse turbines are typically used for high-head, low-flow applications, whereas reaction turbines suit low-head, high-flow conditions. The structural design and operational principles differ to optimize energy extraction for specific hydraulic environments.
Connection
Impulse turbines and reaction turbines are connected through their fundamental principles of converting fluid energy into mechanical energy but operate differently in hydraulic power plants. Impulse turbines use the kinetic energy of water jets striking the turbine blades, while reaction turbines rely on both the pressure and kinetic energy of water flowing over the blades immersed in the water. They can be connected in series in large hydroelectric projects where varying head and flow conditions require flexible energy extraction methods for optimal efficiency.
Comparison Table

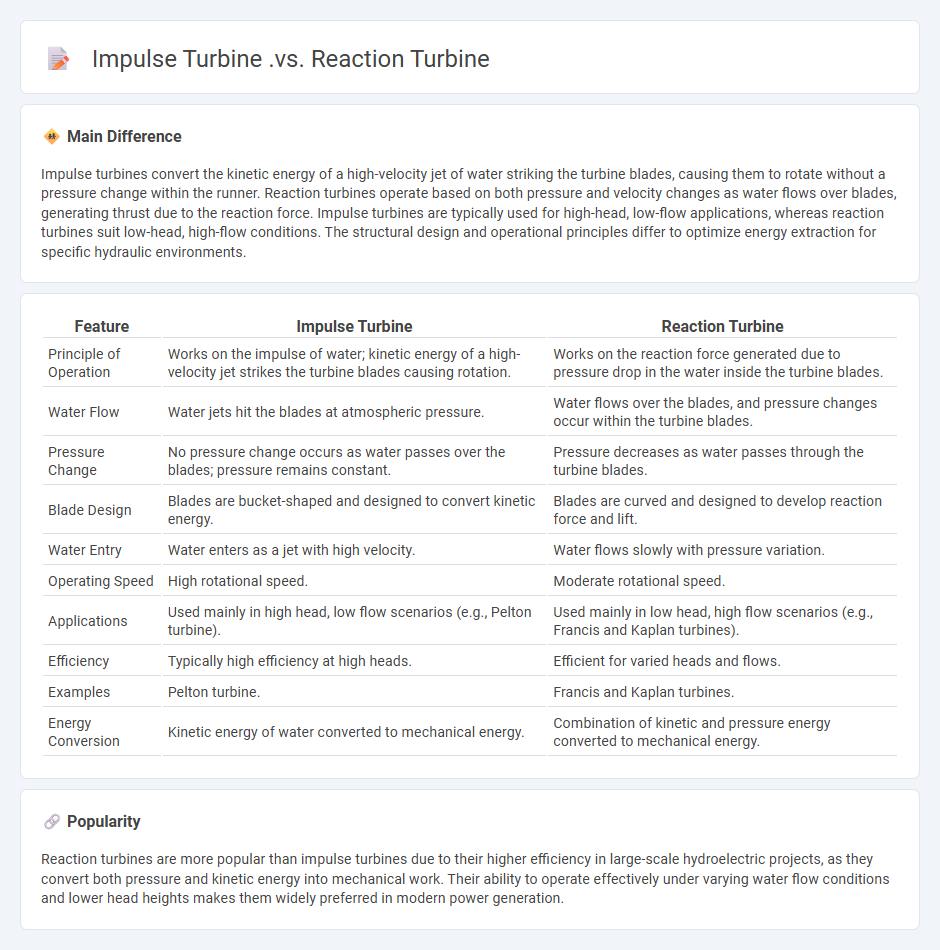

| Feature | Impulse Turbine | Reaction Turbine |
|---|---|---|
| Principle of Operation | Works on the impulse of water; kinetic energy of a high-velocity jet strikes the turbine blades causing rotation. | Works on the reaction force generated due to pressure drop in the water inside the turbine blades. |
| Water Flow | Water jets hit the blades at atmospheric pressure. | Water flows over the blades, and pressure changes occur within the turbine blades. |
| Pressure Change | No pressure change occurs as water passes over the blades; pressure remains constant. | Pressure decreases as water passes through the turbine blades. |
| Blade Design | Blades are bucket-shaped and designed to convert kinetic energy. | Blades are curved and designed to develop reaction force and lift. |
| Water Entry | Water enters as a jet with high velocity. | Water flows slowly with pressure variation. |
| Operating Speed | High rotational speed. | Moderate rotational speed. |
| Applications | Used mainly in high head, low flow scenarios (e.g., Pelton turbine). | Used mainly in low head, high flow scenarios (e.g., Francis and Kaplan turbines). |
| Efficiency | Typically high efficiency at high heads. | Efficient for varied heads and flows. |
| Examples | Pelton turbine. | Francis and Kaplan turbines. |
| Energy Conversion | Kinetic energy of water converted to mechanical energy. | Combination of kinetic and pressure energy converted to mechanical energy. |
Energy Conversion Mechanism
Energy conversion mechanisms are fundamental processes in engineering that transform energy from one form to another to perform useful work. Common mechanisms include turbines converting kinetic energy of fluids into mechanical energy and photovoltaic cells transforming solar energy into electrical energy. Advanced engineering designs optimize these conversions to maximize efficiency and reduce energy losses, leveraging thermodynamics and material science principles. Innovations in energy conversion contribute significantly to sustainable power generation and industrial applications worldwide.
Pressure Variation
Pressure variation in engineering refers to changes in pressure within systems such as fluid dynamics, aerodynamics, and mechanical processes. It is critical in designing pipelines, hydraulic systems, and air conditioning units to ensure structural integrity and optimal performance. Understanding pressure variation helps predict system behavior under different operating conditions, preventing failures and enhancing safety. Engineers frequently use sensors and computational models to monitor and analyze these fluctuations for efficient system management.
Blades Design
Blades design in engineering focuses on optimizing the aerodynamic and structural performance of turbine, compressor, and fan blades used in aerospace, power generation, and automotive industries. Advanced materials such as titanium alloys and carbon fiber composites enhance blade durability and reduce weight, improving efficiency. Computational fluid dynamics (CFD) and finite element analysis (FEA) are critical tools for simulating airflow and stress distribution, ensuring optimal blade geometry and operational safety. Precision manufacturing techniques like additive manufacturing enable complex blade geometries that maximize energy conversion and minimize drag.
Steam Flow Direction
Steam flow direction in engineering is critical for optimizing turbine efficiency and ensuring proper heat exchange in power plants. Engineers design steam piping and turbines to control flow paths, minimizing pressure losses and turbulence. Accurate modeling using computational fluid dynamics (CFD) helps predict flow behavior under varying operating conditions. Maintaining correct flow direction prevents equipment damage and improves energy conversion rates in thermal power generation.
Typical Applications
Engineering applications span various fields including civil, mechanical, electrical, and software engineering. In civil engineering, typical applications involve designing infrastructure such as bridges, roads, and water supply systems. Mechanical engineering focuses on developing machinery, engines, and HVAC systems, while electrical engineering covers power generation, circuit design, and telecommunications. Software engineering applications include developing algorithms, control systems, and data management solutions tailored for engineering tasks.
Source and External Links
Differences between Impulse and Reaction Turbine. - YouTube - The impulse turbine uses steam that strikes moving blades with kinetic energy only, keeping steam pressure constant through the blades, while the reaction turbine steam flows through guide and moving blades carrying both pressure and kinetic energy, with steam pressure dropping as it passes through moving blades.
Steam Turbine Impulse and Reaction Blading - The key difference is that impulse turbines have a pressure drop only across fixed blades which accelerate steam to high velocity impacting the moving blades, whereas reaction turbines have pressure drop across both fixed and moving blades, transferring energy from both the potential and kinetic energy of the steam.
How turbines work | Impulse and reaction turbines - Explain that Stuff - Impulse turbines capture energy at single points where high-velocity jets strike buckets or blades and are often exposed to air, whereas reaction turbines are enclosed, capturing energy continuously across the runner as water or steam flows over the entire surface.
FAQs
What is a turbine?
A turbine is a mechanical device that converts fluid energy, such as steam, water, or gas, into rotational mechanical energy to generate power.
What is the main difference between impulse and reaction turbines?
Impulse turbines convert kinetic energy of a high-velocity jet striking the blades into mechanical energy, while reaction turbines generate power from both pressure and kinetic energy as fluid flows continuously over the blades causing a reaction force.
How does an impulse turbine work?
An impulse turbine works by converting the kinetic energy of high-velocity water jets into mechanical energy through the impact of the jets on turbine blades, causing the rotor to spin.
How does a reaction turbine work?
A reaction turbine converts fluid pressure energy into mechanical energy by utilizing both the fluid's velocity and pressure drop across fixed and moving blades, generating torque on the rotor as the fluid flows through the turbine stages.
Where are impulse turbines commonly used?
Impulse turbines are commonly used in high-head hydroelectric power plants and steam power plants for electricity generation.
Where are reaction turbines commonly applied?
Reaction turbines are commonly applied in hydroelectric power plants where water flow drives the turbine blades to generate electricity.
What are the advantages of impulse turbines over reaction turbines?
Impulse turbines offer advantages such as simpler design with no need for pressure casing, suitability for high-head and low-flow applications, easier maintenance due to external moving parts, and less sensitivity to water impurities compared to reaction turbines.
