Strain gauges measure strain by detecting changes in electrical resistance caused by deformation, offering precise stress analysis in materials testing. LVDTs (Linear Variable Differential Transformers) provide accurate displacement measurements through electromagnetic induction, widely used in industrial position sensing. Explore their detailed applications and advantages to determine the best choice for your measurement needs.
Main Difference
Strain gauges measure strain by detecting changes in electrical resistance caused by deformation in a material, making them ideal for stress analysis and structural testing. LVDTs measure linear displacement through inductive coupling and produce an electrical output proportional to the movement of a ferromagnetic core, suitable for precise position sensing. Strain gauges provide localized strain measurements, while LVDTs are designed for accurate, repeatable displacement readings over a range. The choice depends on whether the application requires strain measurement or linear position detection.
Connection
Strain gauges are typically connected in a Wheatstone bridge circuit to accurately measure small changes in resistance caused by strain on an object. LVDTs are connected through their primary coil to an AC excitation source, while their secondary coils feed the differential output voltage to a signal conditioning unit. To integrate both devices in a measurement system, the strain gauge output is often digitized and synchronized with the conditioned LVDT signal for combined displacement and strain analysis.
Comparison Table

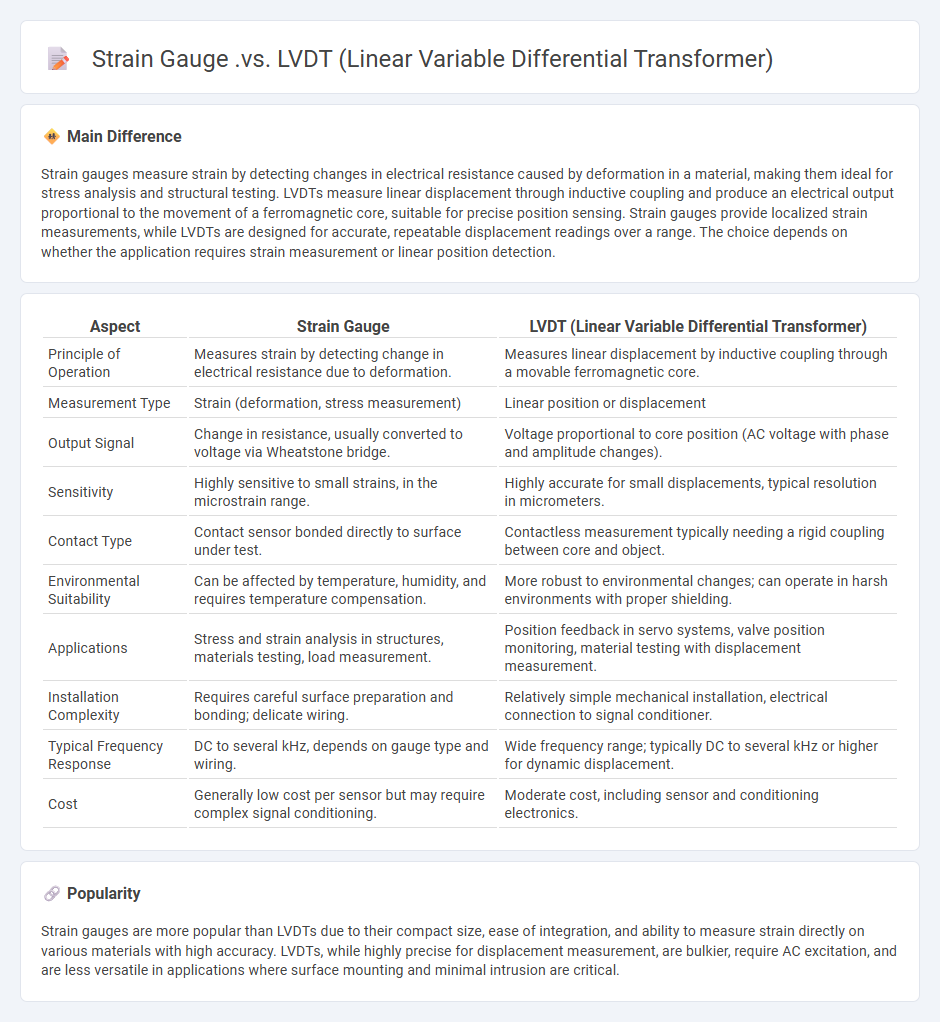

| Aspect | Strain Gauge | LVDT (Linear Variable Differential Transformer) |
|---|---|---|
| Principle of Operation | Measures strain by detecting change in electrical resistance due to deformation. | Measures linear displacement by inductive coupling through a movable ferromagnetic core. |
| Measurement Type | Strain (deformation, stress measurement) | Linear position or displacement |
| Output Signal | Change in resistance, usually converted to voltage via Wheatstone bridge. | Voltage proportional to core position (AC voltage with phase and amplitude changes). |
| Sensitivity | Highly sensitive to small strains, in the microstrain range. | Highly accurate for small displacements, typical resolution in micrometers. |
| Contact Type | Contact sensor bonded directly to surface under test. | Contactless measurement typically needing a rigid coupling between core and object. |
| Environmental Suitability | Can be affected by temperature, humidity, and requires temperature compensation. | More robust to environmental changes; can operate in harsh environments with proper shielding. |
| Applications | Stress and strain analysis in structures, materials testing, load measurement. | Position feedback in servo systems, valve position monitoring, material testing with displacement measurement. |
| Installation Complexity | Requires careful surface preparation and bonding; delicate wiring. | Relatively simple mechanical installation, electrical connection to signal conditioner. |
| Typical Frequency Response | DC to several kHz, depends on gauge type and wiring. | Wide frequency range; typically DC to several kHz or higher for dynamic displacement. |
| Cost | Generally low cost per sensor but may require complex signal conditioning. | Moderate cost, including sensor and conditioning electronics. |
Measurement Principle
Measurement principle in engineering involves quantifying physical quantities through established methods and instruments to obtain accurate and reproducible data. It relies on the selection of appropriate sensors, transducers, and signal processing techniques to convert physical phenomena into measurable electrical signals. Common measurement principles include resistive, capacitive, inductive, and optical methods, each suited for specific parameters such as temperature, pressure, displacement, or flow. Precise calibration and error analysis ensure the reliability of measurements across various engineering applications.
Accuracy and Sensitivity
Accuracy in engineering measures the closeness of a system's output to the true value, critical in fields like control systems and instrumentation. Sensitivity evaluates how system output varies with changes in input parameters, influencing the design of sensors and feedback mechanisms. High accuracy ensures reliable performance, while optimal sensitivity enables detection of minor fluctuations, essential for stability and precision. Engineers balance these factors to enhance system robustness and functionality across applications such as robotics, aerospace, and manufacturing.
Application Areas
Engineering encompasses diverse application areas including civil, mechanical, electrical, and software engineering, each targeting specific industry needs. Civil engineering focuses on infrastructure projects like bridges, roads, and water supply systems, while mechanical engineering involves the design and manufacturing of machines and mechanical systems. Electrical engineering addresses power generation, electronics, and telecommunications, supporting the development of circuits, control systems, and renewable energy technologies. Software engineering drives advancements in computer programming, system architecture, and cybersecurity, essential for developing applications, networks, and data management solutions.
Signal Output Type
Signal output type in engineering refers to the form of the electrical or data signal that a device or system produces to communicate information. Common output types include analog signals, which vary continuously over a range, and digital signals, represented by discrete values such as binary states. Understanding the signal output type is crucial for ensuring compatibility with subsequent processing components, such as sensors, actuators, or data acquisition systems. Specific examples include voltage output, current output (4-20 mA), pulse output, and frequency output, each suited to different industrial and instrumentation applications.
Environmental Suitability
Environmental suitability in engineering assesses how well a site or material meets specific ecological and regulatory criteria for sustainable development. Factors such as soil composition, climate conditions, water availability, and local biodiversity are analyzed to minimize environmental impact and ensure compliance with standards like ISO 14001. Advanced tools like Geographic Information Systems (GIS) and environmental impact assessments (EIA) enable engineers to integrate data-driven decisions into project planning. This approach supports resilient infrastructure design while promoting conservation and reducing carbon footprints.
Source and External Links
Linear Variable Differential Transformer and Strain Gauge Transducer - Strain gauges measure strain by changes in resistance under load and provide linear voltage output proportional to strain, while LVDTs measure linear displacement with small voltage outputs that require amplification for accurate measurement.
Strain measurements: Strain gauges vs LVDTs - Geomechanica - Strain gauges offer localized strain measurement bonded directly to samples, whereas LVDTs measure displacement over larger regions and are mounted on loading platens, measuring overall linear deformation.
What is a LVDT? | linear variable differential transformer - LVDTs are electromechanical sensors converting linear motion into electrical signals, used commonly with load cells for tensile testing, but have limitations such as vulnerability to damage under sudden loads and setup complexity compared to strain gauges.
FAQs
What is a strain gauge?
A strain gauge is a sensor that measures strain or deformation on an object's surface by converting mechanical displacement into a change in electrical resistance.
What is an LVDT?
An LVDT (Linear Variable Differential Transformer) is an electromechanical sensor that measures linear displacement by converting mechanical movement into a corresponding electrical signal.
How does a strain gauge work?
A strain gauge works by converting mechanical deformation into a measurable change in electrical resistance, which varies proportionally with the amount of strain experienced by the material.
How does an LVDT function?
An LVDT functions by converting linear displacement into a varying electrical voltage through the movement of a ferromagnetic core inside a primary coil inducing voltage in two secondary coils arranged symmetrically.
What are the main differences between strain gauges and LVDTs?
Strain gauges measure strain by detecting resistance changes in a material under stress, offering high sensitivity for small deformations, while LVDTs (Linear Variable Differential Transformers) measure linear displacement using electromagnetic induction with high accuracy and frictionless operation.
What are common applications for strain gauges and LVDTs?
Strain gauges are commonly used in structural health monitoring, load and force measurement, biomechanical analysis, and material testing; LVDTs (Linear Variable Differential Transformers) are frequently applied in position sensing, displacement measurement, vibration monitoring, and automated control systems.
Which sensor provides better accuracy for displacement measurement?
Laser displacement sensors provide better accuracy for displacement measurement compared to capacitive or inductive sensors.
